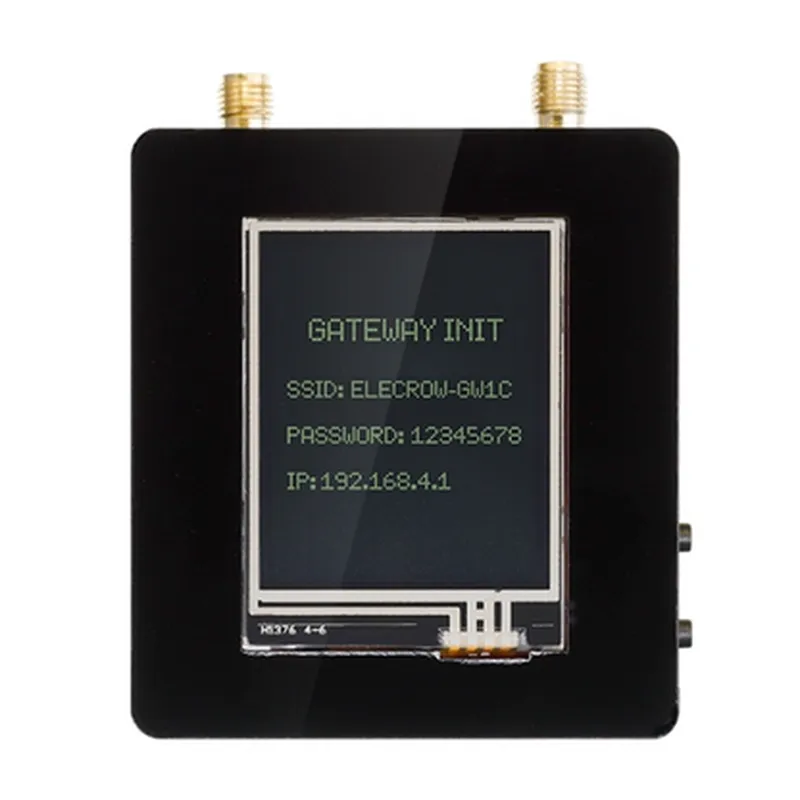

Elecrow LoRaWan Gateway Module Based on ESP32 with 1.8” LCD - 1 Channel for Long Range Communication

This product is not available in your location yet

Description: 1. IoT Solution: Elecrow LoRaWan Gateway Module is an ESP32-based solution designed for long-range communication using the LoRaWAN protocol. It facilitates integration of IoT projects into LoRa networks. 2. Versatile Frequency Support: Supports two frequency bands - Europe (868Mhz) and North America (915Mhz). This flexibility makes it suitable for various geographical regions, broadening its usability. 3. One-Channel Gateway: Features a single LoRa communication channel to receive data from multiple IoT devices using the same frequency band. This simplifies managing multiple devices and reduces costs. 4. Compact Size & Portable Design: The compact size (50mm x 72mm) and portable design make it easy to install in different environments. Ideal for projects where size matters or mobility is required. 5. ESP32 Processor: Based on the powerful ESP32 microcontroller, this gateway offers fast processing speed and high connectivity options (Wi-Fi, Bluetooth, etc.). It also supports OTA up

View Technical Documentation

Specification	Details
Module Type	LoRaWAN Gateway Module
Based On	ESP32 Microcontroller
Frequency	868 MHz and 915 MHz
Communication Range	Up to 10 km (depending on environment)
Data Rate	Up to 27 kbps
Bandwidth	125 kHz 250 kHz 500 kHz
Spreading Factors	SF7-SF12
Display	1.8” LCD Display with backlight
Resolution	128x160 pixels
Operating Voltage	3.3V to 5V (regulated)
Power Consumption	Typical: 90 mA Max: 120 mA
Dimensions	72 x 45mm
Weight	Approximately 25g
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C
