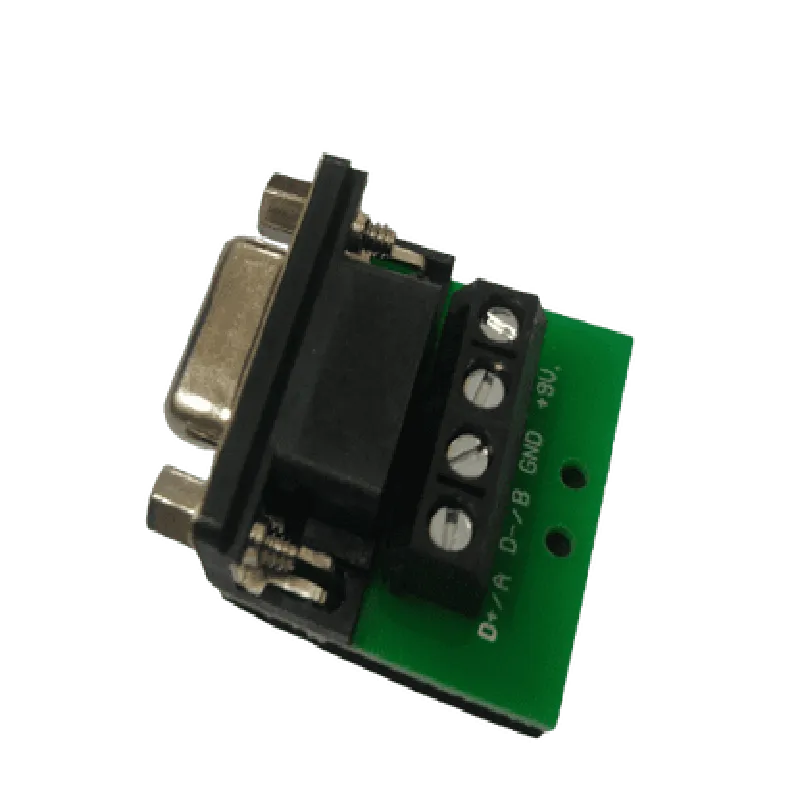

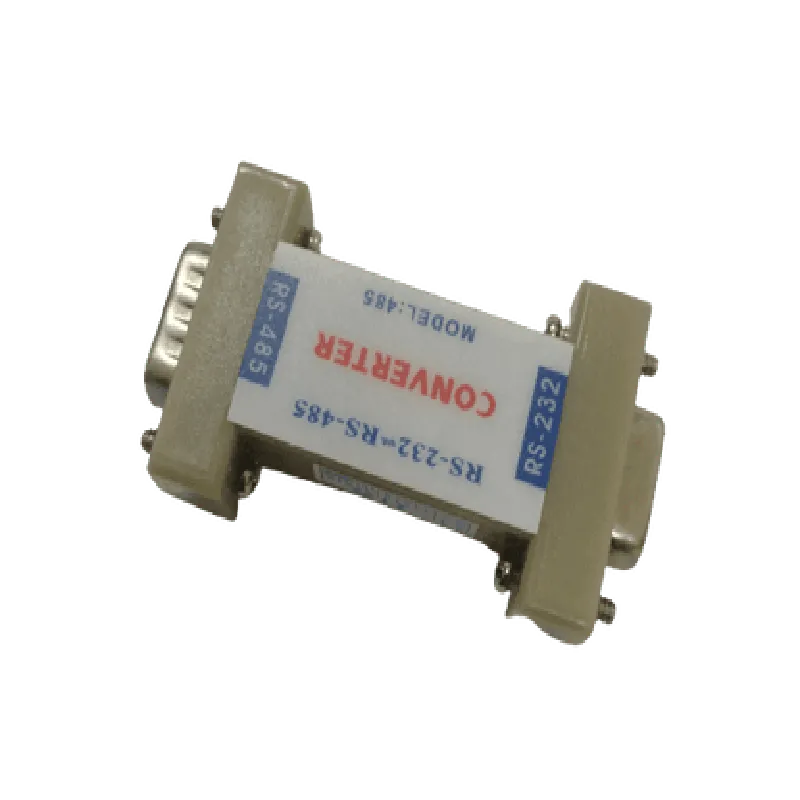

Description: 1. Functionality: HXAD is a passive interface adapter converter designed to connect RS232 devices to RS485 networks, enabling data transmission between incompatible systems. 2. Passive Design: This converter operates passively, meaning it requires no external power source and does not introduce any additional noise or voltage levels to the signal. 3. Data Transmission: HXAD supports full-duplex data transmission, allowing both devices to transmit and receive data simultaneously on a single bus. 4. Broad Compatibility: Suitable for various industrial applications, this converter is compatible with most RS232 and RS485 devices. 5. Simple Installation: The adapter features plug-and-play installation; simply connect the RS232 device to the HXAD interface and then connect the HXAD interface to the RS485 network using the provided jumper cables. 6. Easy Integration with IoT Systems: By converting the communication protocols, the HXAD adapter helps facilitate seamless integration of RS2
| Specification | Details |
|---|---|
| Interface Type | RS-232 to RS-485 Converter |
| Conversion Method | Passive (no power supply required) |
| Data Rate | Up to 115200 bps |
| Voltage Range | 3.0V to 12.0V |
| Current Consumption | <1mA |
| Operating Temperature | -40°C to 85°C |
| Dimensions | 26mm x 20mm x 8mm |
| Weight | 25g |
| Connectors | DB9 (RS-232) and Terminal Block (RS-485) |
