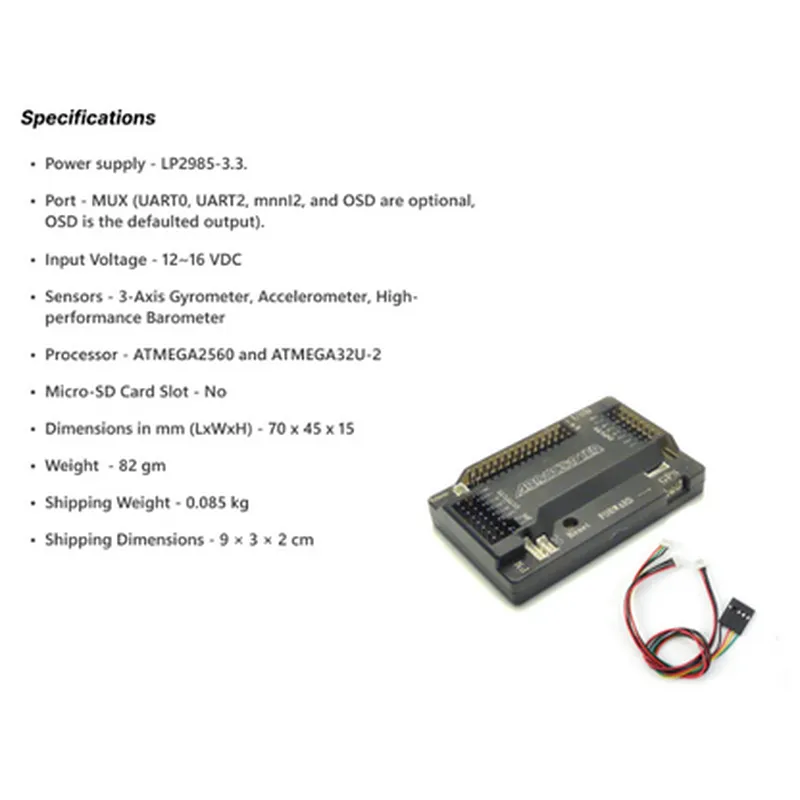

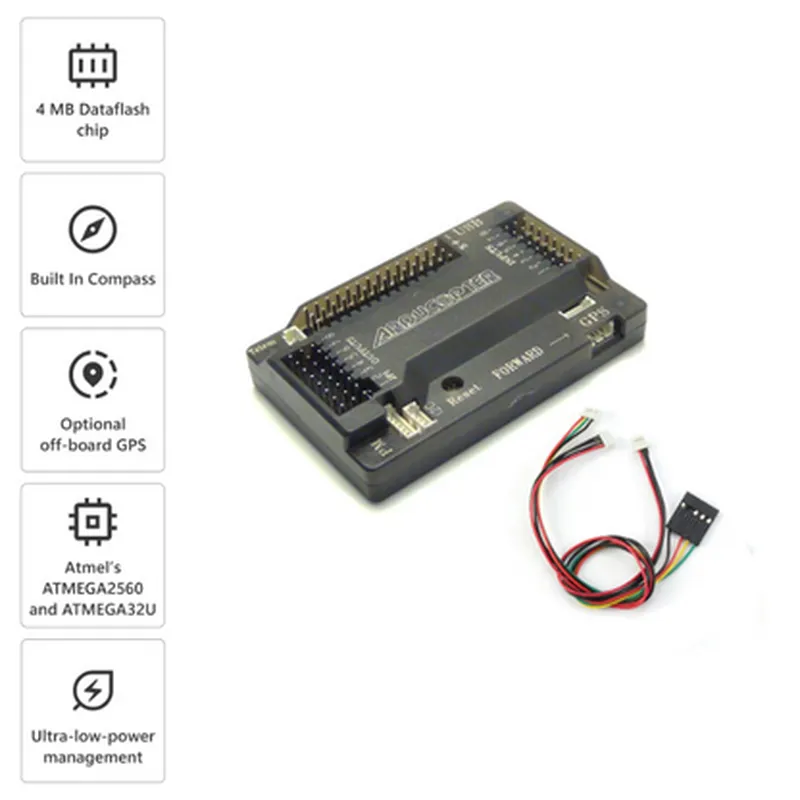

APM 2.8 Flight Controller with In-Built Compass

Stufin

APM 2.8 Flight Controller with In-Built Compass

This product is not available in your location yet

Description: 1. Flight Controller: The APM 2.8 is a microcontroller designed for unmanned aerial vehicles (UAVs) or drones, allowing automatic flight control based on sensor inputs. 2. Version 2.8: This specific model is an upgrade from previous versions, featuring improved stability and performance. 3. In-Built Compass: The APM 2.8 includes a built-in Magnetic Compass, providing accurate heading information for the drone's orientation and navigation. 4. Multi-Rotor Support: Suitable for multi-rotor platforms like quadcopters and hexacopters, offering versatility and adaptability to various drone designs. 5. ArduPilot: Powered by the open-source ArduPilot software, enabling advanced features such as altitude hold, return-to-home functionality, and GPS guidance. 6. Wide Input Voltage Range: Operates on a wide input voltage range (7-24V), making it compatible with different battery configurations and power sources. 7. Extensive Connectivity: Features multiple expansion ports for integrating va

View Technical Documentation

Specification	Details
Processor	ARM Cortex M3 32-bit RISC processor
Flash Memory	128 KB of flash memory
RAM	128 KB of RAM
Communication Ports	USB UART (TX/RX) I2C SPI
Compass Accuracy	±2° heading accuracy
Compass Type	Magnetometer (3-axis)
Acceleration Range	±16g (±1.5mg resolution)
Gyro Range	±2000°/s (±0.015°/s resolution)
Voltage Input	2S to 6S LiPo batteries
Operating Frequency	25-100 MHz
Current Consumption	~80mA (nominal) 150mA (max)
Dimensions	45x50x10mm
Weight	30g
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Compatibility	Compatible with Arduino IDE and APM firmware
