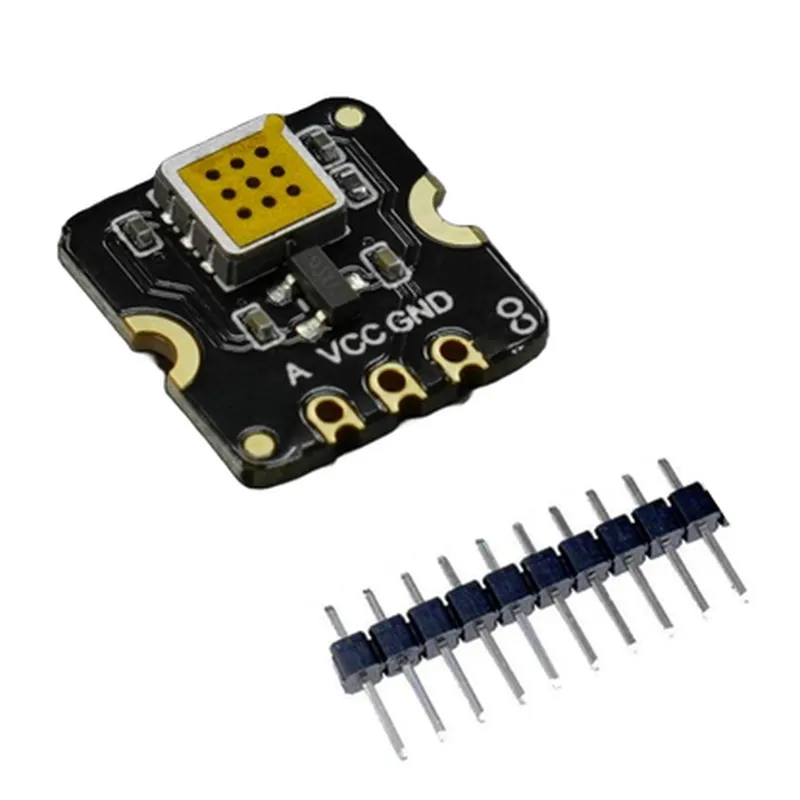

Fermion MEMS Gas Detection Sensor Carbon Monoxide (CO) (Breakout, 5-5000ppm)

Stufin

Fermion MEMS Gas Detection Sensor Carbon Monoxide (CO) (Breakout, 5-5000ppm)

This product is not available in your location yet

Description: 1. Fermion MEMS Gas Sensor: This is a Carbon Monoxide (CO) gas detection sensor breakout using Micro-Electromechanical Systems (MEMS) technology for enhanced sensitivity and accuracy. 2. Gas Detection Range: The Fermion CO sensor can detect CO concentrations within the range of 5 to 5000 parts per million (ppm), making it ideal for monitoring CO levels in various environments where safety is a priority. 3. Compact and Low-Power Design: With its compact design, this sensor is suitable for integrating into small IoT projects or systems. It also features low power consumption, minimizing the need for frequent battery replacement or power management. 4. High Sensitivity and Precision: The Fermion CO MEMS sensor offers high sensitivity to CO gas and a fast response time, enabling quick and accurate detection of CO levels in your environment. 5. Digital I2C Interface: This sensor utilizes a digital I2C interface for communication with other microcontrollers or systems. It allows easy in

View Technical Documentation

Specification	Details
Sensor Type	MEMS Gas Detection Sensor
Detection Target	Carbon Monoxide (CO)
Measurement Range	5-5000 ppm
Accuracy	±2%
Resolution	1 ppm
Response Time	<15 seconds
Drift Rate	<1% per day
Operating Temperature	-20°C to +50°C
Storage Temperature	-40°C to +60°C
Humidity Range	10-90% relative humidity
Power Consumption	2.5-3.5 mA ( typical)
Interface	I2C or SPI ( selectable )
Dimension	20x10x4 mm
Weight	1g
Operating Voltage	3.0-3.6V
Current Draw	5-15 mA ( typical)
