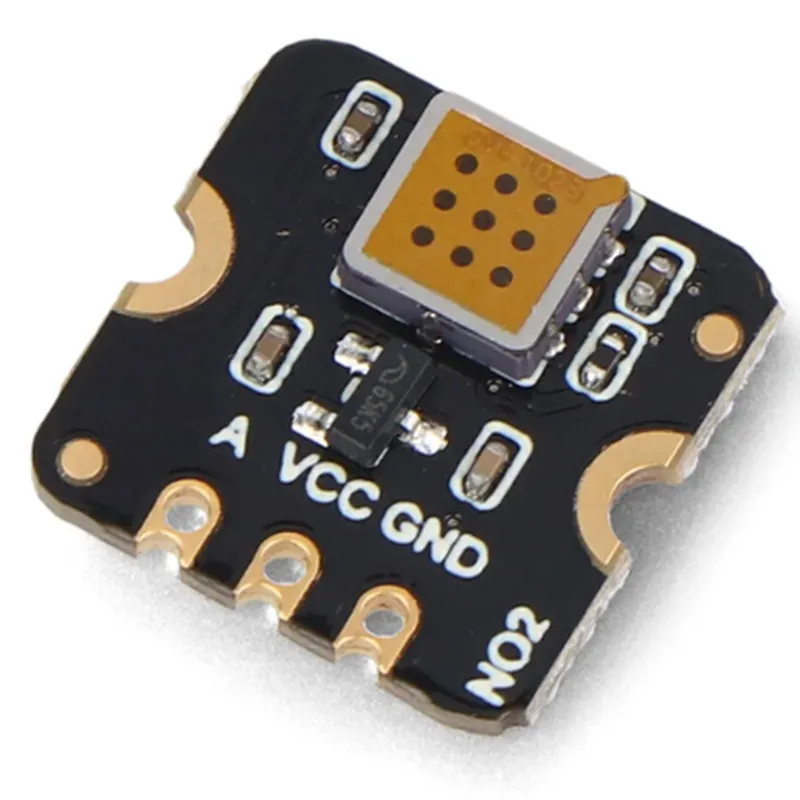

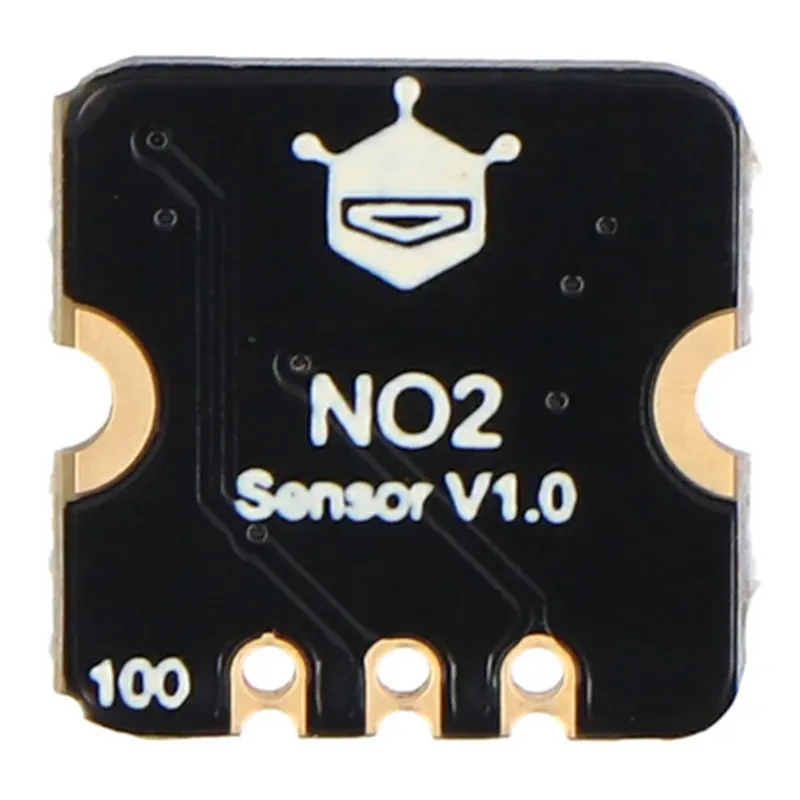

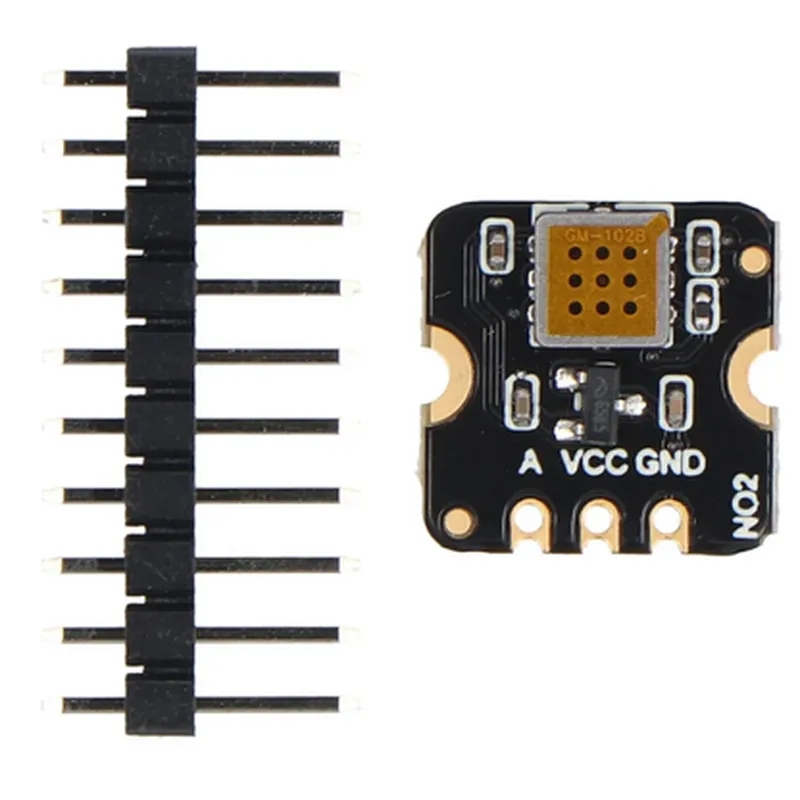

Fermion: MEMS Nitrogen Dioxide NO2 Gas Detection Sensor

Stufin

Fermion: MEMS Nitrogen Dioxide NO2 Gas Detection Sensor

This product is not available in your location yet

Description: 1. Fermion is a MEMS (Micro-Electro-Mechanical Systems) nitrogen dioxide (NO2) gas detection sensor designed for IoT applications, providing real-time monitoring of NO2 levels in ambient air. 2. Sensitivity and Detection Limit: The Fermion sensor has a high sensitivity to NO2 with a detection limit of 0.5 parts per billion (ppb), making it suitable for use in various industrial, environmental, and indoor monitoring applications. 3. Temperature Range: Operating temperature range is between -20°C and +60°C (-4°F to +140°F), ensuring reliable operation under extreme conditions. 4. Output Signal: The sensor outputs a digital signal proportional to the NO2 concentration, which can be easily read by microcontrollers and other IoT devices for real-time analysis and data logging. 5. Form Factor: The compact form factor (13mm x 18mm x 6mm) allows easy integration into a wide range of systems, from portable air quality monitors to large industrial installations. 6. Calibration: Calibration

View Technical Documentation

Specification	Details
Detection Range	0-100 ppm (parts per million)
Accuracy	±5% relative accuracy
Response Time	<10 seconds
Stability	±3% over 12 months
Operating Voltage	3.2V to 5.6V (regulated input)
Current Consumption	15mA (typical) 30mA (max)
Communication Interface	I²C (SDA SCL pins)
Gas Sensitivity	Adjustable sensitivity control
Operating Temperature	-20°C to 50°C
Humidity Tolerance	Up to 80% relative humidity
Size and Weight	25mm x 15mm x 5mm 12g (approx.)
Certifications	CE FCC RoHS compliant
