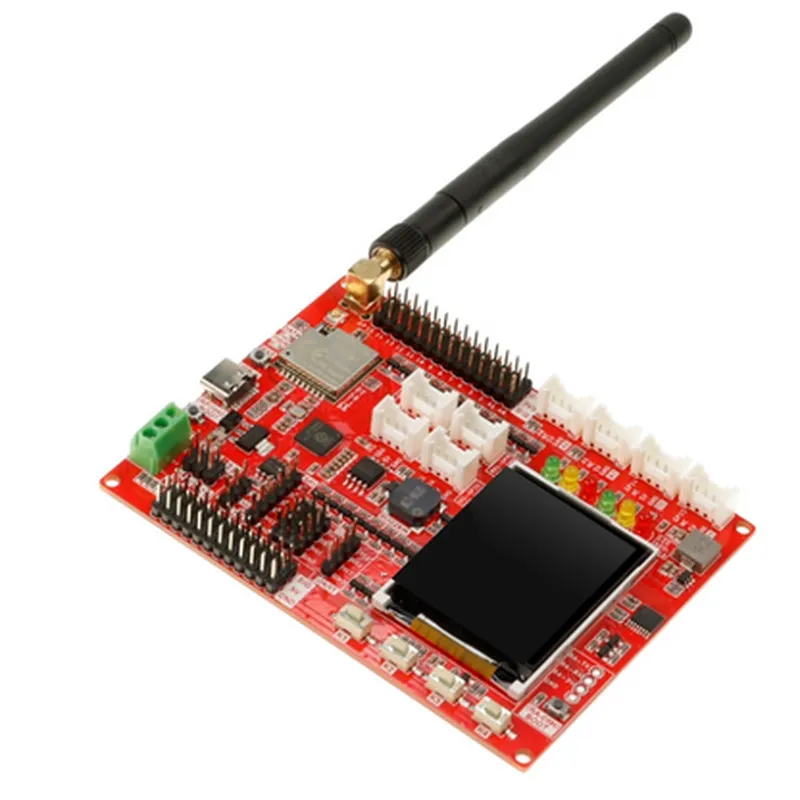

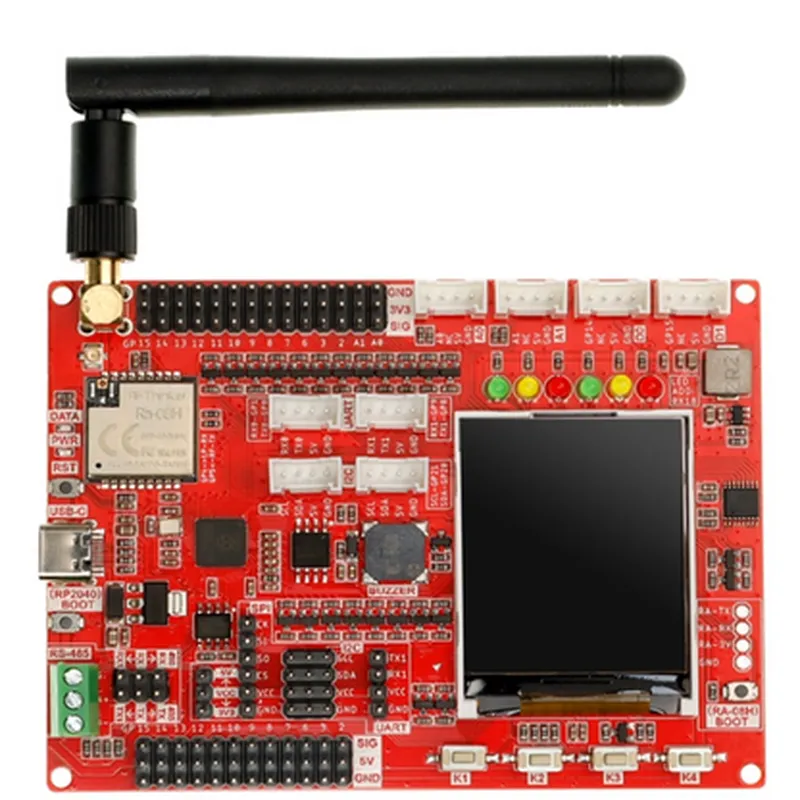

Description: 1. The Elecrow LoRaWAN RA-08H Development Board is a powerful IoT solution featuring an integrated RP2040 microcontroller and a 1.8" LCD display for Long Range Communication in the 868Mhz (Europe) or 915Mhz (North America) frequency bands. 2. This development board comes equipped with an Semtech SX1305 LoRa transceiver, providing long-range, low-power wireless communication up to several kilometers in rural areas and line-of-sight urban environments. 3. It offers a versatile design with 16 available GPIO pins (8 digital input/output, 4 analog input), 2 UART interfaces, an I2C interface, and a SPI interface for connecting various sensors and actuators, making it suitable for a wide range of IoT projects. 4. The integrated RP2040 microcontroller based on the Raspberry Pi Silicon offers superior processing power, enabling advanced data processing tasks like data encryption and decryption, as well as local data storage using its available flash memory. 5. Its 1.8" LCD display allows r
| Specification | Details |
|---|---|
| Microcontroller | RP2040 32-bit dual-core ARM Cortex-M3 CPU @ 133 MHz |
| Memory | 264KB SRAM 16MB Flash storage |
| Communication | LoRaWAN (868MHz/915MHz) - Class A/C compliant; SPI UART I2C I2S interfaces |
| Display | Integrated 1.8" LCD display with resolution of 128x160 pixels |
| Operating System | Compatible with MicroPython and CircuitPython frameworks |
| Power Supply | Powered via USB-C port or battery (Li-ion 3.7V 500mAh) |
| Dimensions | 66mm x 36mm x 14mm |
| Weight | Approximately 30g |
| Operating Temperature | -20°C to +85°C |
| Storage Temperature | -40°C to +90°C |
| Humidity | Up to 80% relative humidity |
