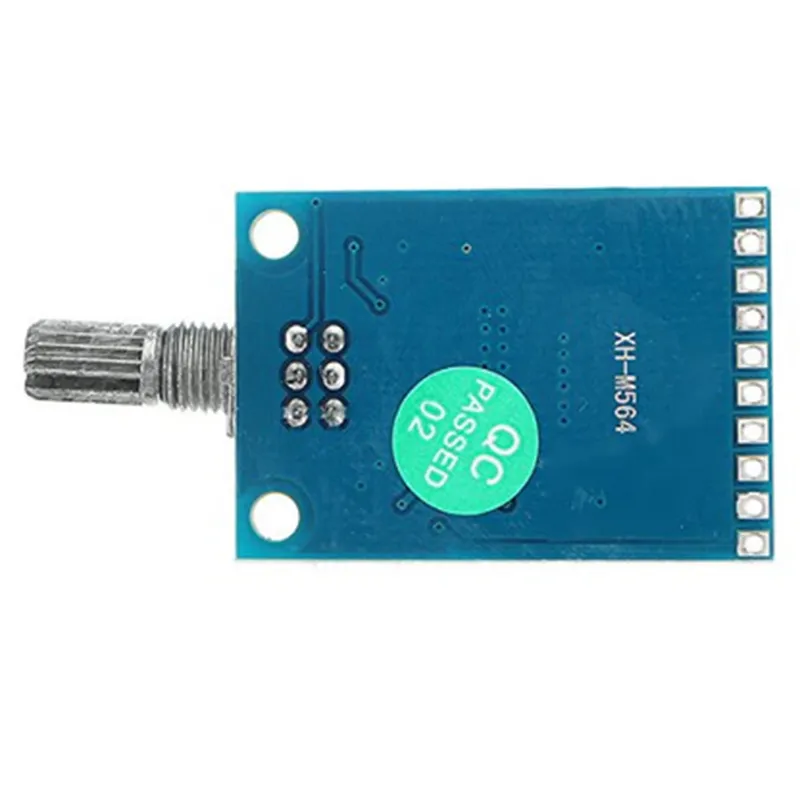

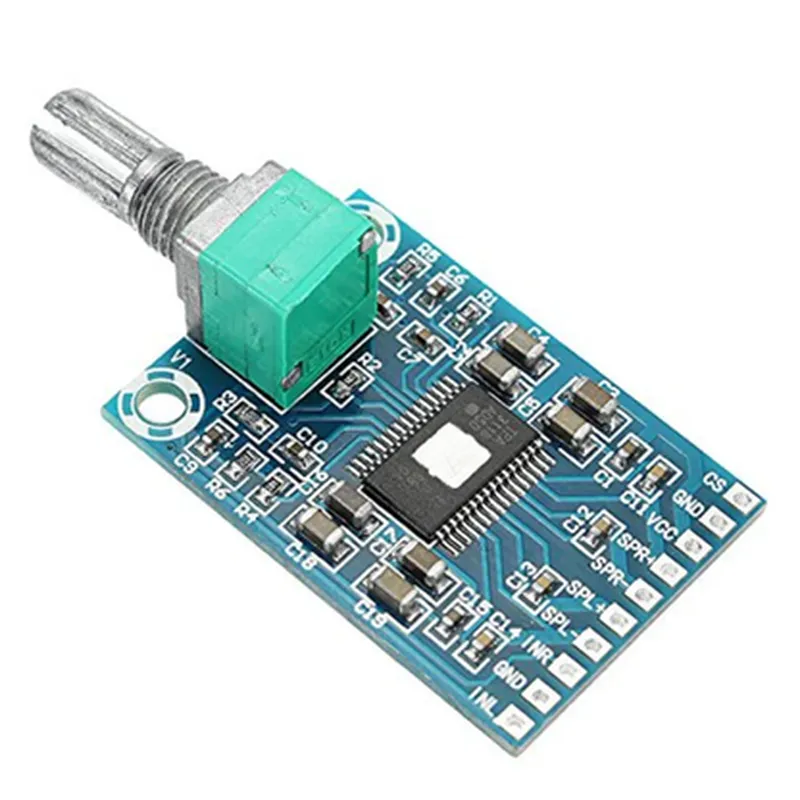

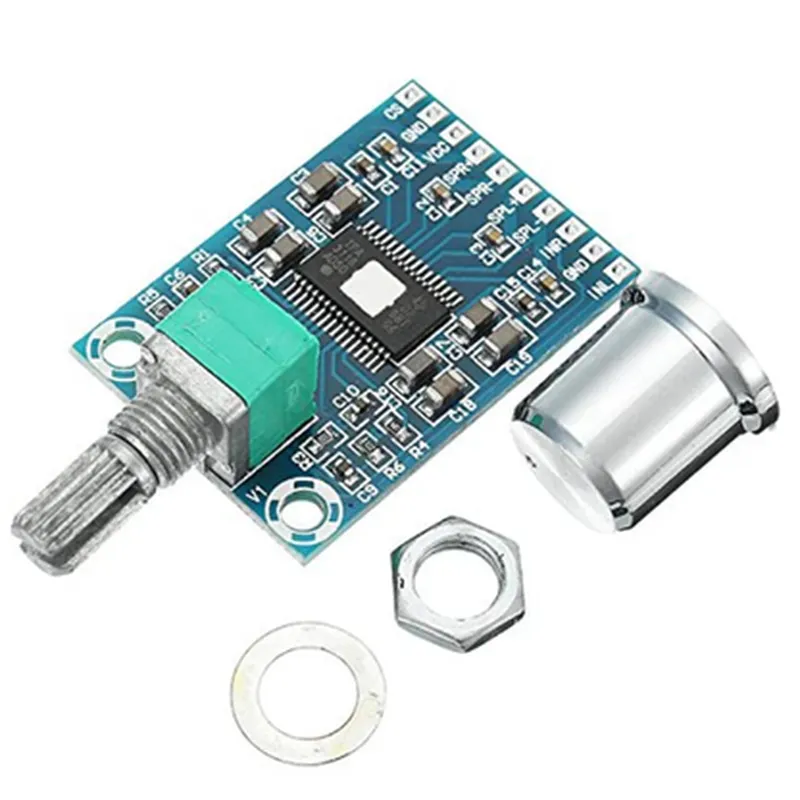

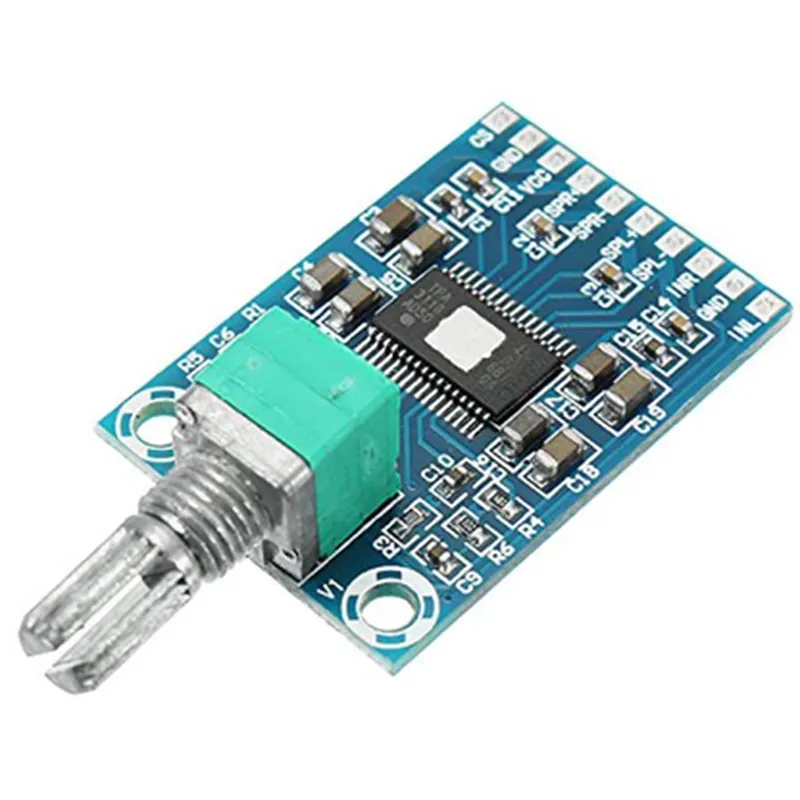

Description: 1. Digital Power Amplifier Board featuring TPA3116D2 chip is a dual 50W high definition sound amplifier designed for IoT applications, capable of delivering crystal clear sound with minimal distortion. 2. Chip: The TPA3116D2 is a high-performance, class D digital audio power amplifier chipset from Texas Instruments, optimized for low power consumption and high efficiency. 3. Voltage Input: This amplifier board can be operated with an input voltage ranging from 12V to 24V, making it suitable for various power sources in IoT systems. 4. Power Handling Capabilities: Each channel of the digital power amplifier delivers a maximum power output of 50 watts (RMS), ensuring robust audio performance even under heavy loads. 5. High-Definition Sound: The use of advanced digital signal processing and class D amplification technology ensures high definition sound quality with minimal distortion and improved efficiency. 6. Efficiency: The TPA3116D2 chip employs Class D topology, resulting in hi
| Specification | Details |
|---|---|
| Power Output | Dual 50W (RMS) per channel |
| Chipset | Texas Instruments TPA3116D2 |
| Voltage Range | 12-24V |
| Frequency Response | 20Hz - 20kHz |
| Signal-to-Noise Ratio | >90 dB (THD+N) |
| Damping Factor | >100 @ 1 kHz |
| Efficiency | Up to 95% at full load |
| Dimensions | [insert dimensions e.g. 160mm x 60mm] |
| Mounting Options | PCB Mountable |
| Operating Temperature | -20°C to +70°C |
| Weight | [insert weight e.g. 150g] |
| Connectors | Speaker terminals (2 x 5mm) |
