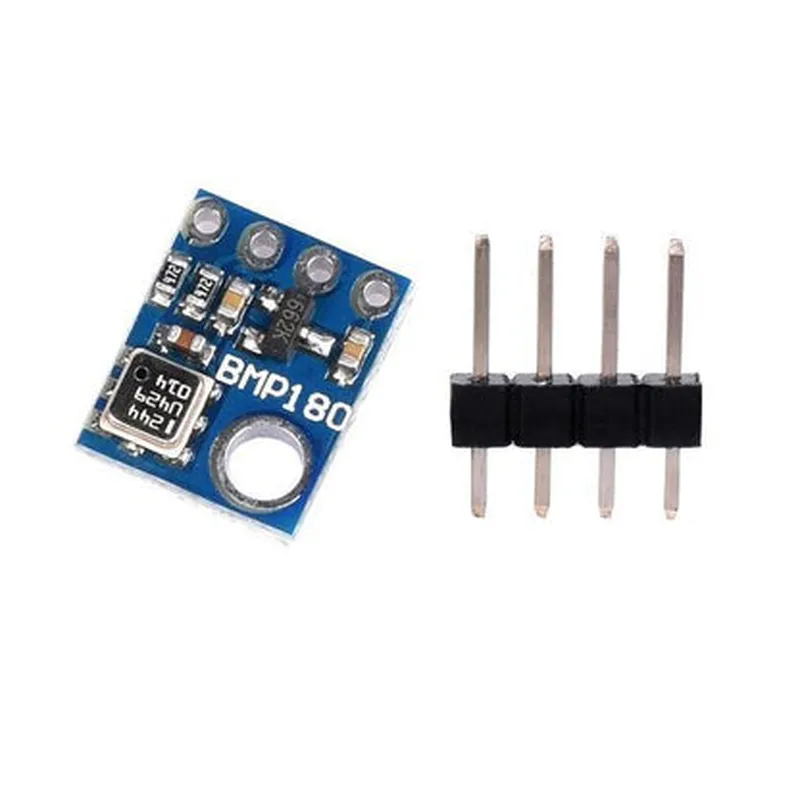

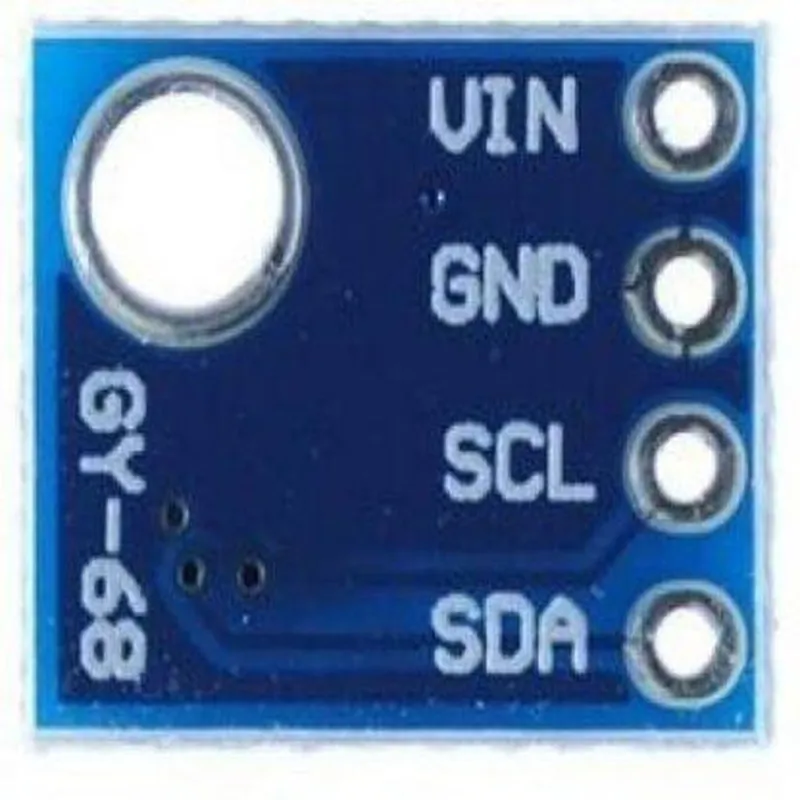

BMP180 Pressure Sensor Module (Pack of 25)

Stufin

BMP180 Pressure Sensor Module (Pack of 25)

This product is not available in your location yet

Description: 1. BMP180 is a high precision digital pressure sensor module, available in packs of 25. It measures atmospheric pressure and temperature with an I2C interface. 2. Key Features: Small size (3mm x 4mm), wide operating temperature range (-40°C to +85°C), high measurement accuracy (+/-1 hPa for pressure, +/-1 degrees Celsius for temperature). 3. Applications: Suitable for various projects like weather stations, altitude sensors, barometric pressure loggers, and more. 4. Easy Integration: Works with Arduino, Raspberry Pi, and other microcontrollers via I2C communication. No external power supply required, as it utilizes the VDD of the data line. 5. Calibration: Factory calibrated and self-calibrating option using ambient pressure for temperature compensation. 6. Unique Benefits: Offers high precision measurements, adjustable oversampling modes (1x, 4x, or 16x), and programmable filter settings to improve measurement stability. 7. Robust Design: Features sealed ceramic elements ensuri

View Technical Documentation

Specification	Details
Pressure Range	300 mbar to 1100 mbar
Resolution	0.02 mbar (16-bit pressure data)
Accuracy	±1 mbar (12-bit pressure data)
Operating Temperature	-40°C to +85°C
Humidity Range	0% to 100%
Supply Voltage	3.0V to 5.5V
Current Consumption	1µA (typical) up to 20mA (max)
Interface	I2C SPI
Dimensions	27mm x 17mm x 4mm
Weight	approximately 3.5g
