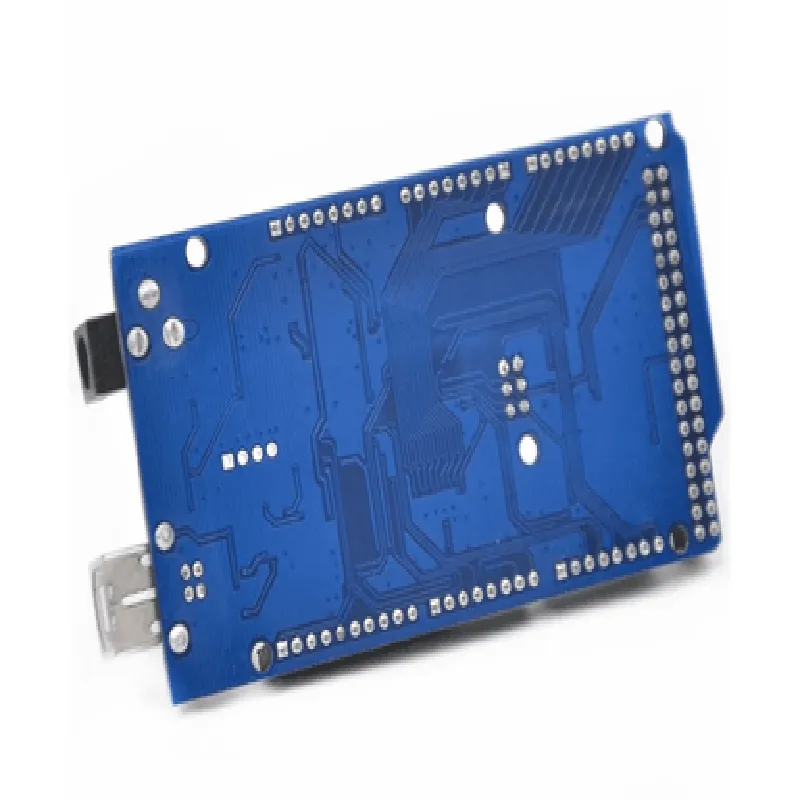

Arduino MEGA 2560 R3 compatible Board (Pack of 25)

Stufin

Arduino MEGA 2560 R3 compatible Board (Pack of 25)

This product is not available in your location yet

Description: Arduino Mega 2560 R3 Compatible Board (Pack of 25) 1. Microcontroller: This board is based on the ATmega2560 microcontroller, which has 256 KB Flash memory and 2 KB EEPROM. It also features 22 digital input/output pins (of which 7 can be used as PWM outputs), 14 analog inputs, 4 serial communication interfaces, a 16 MHz quartz crystal, and a USB connection. 2. Power Supply: The Arduino Mega 2560 R3 board has an operating voltage of 7-12V DC and a maximum current capacity of 200mA. It can be powered via the DC jack, the Vin pin, or the USB connection. 3. Programming: The board can be programmed using the Arduino Integrated Development Environment (IDE) and can store code in its flash memory with a size up to 256 KB. This makes it ideal for complex projects that require more memory than the standard Arduino boards. 4. Connectivity: The board comes with a wide range of connectivity options, including 4 serial communication interfaces (USART, TX and RX pins), an I²C interface, and a S

View Technical Documentation

Specification	Details
Microcontroller	ATmega2560 8-bit AVR Microcontroller
Operating Voltage	5V (regulated) External Supply
Operating Frequency	16 MHz
Flash Memory	256 KB
SRAM	8 KB
EEPROM	4 KB
Digital I/O Pins	54 (out of which 15 can be used as PWM)
Analog Inputs	16
Analog Outputs	4
DC Current per I/O Pin	40 mA
USB Connection	USB 2.0 full-speed (12 Mbps)
Dimensions	101 mm x 53 mm
Weight	Approximately 70 grams
