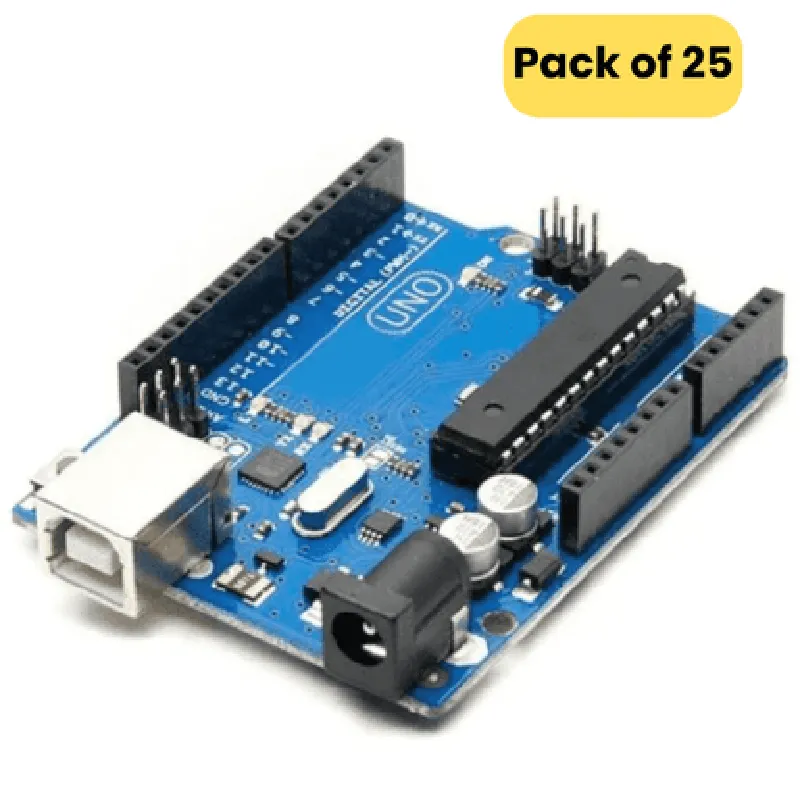

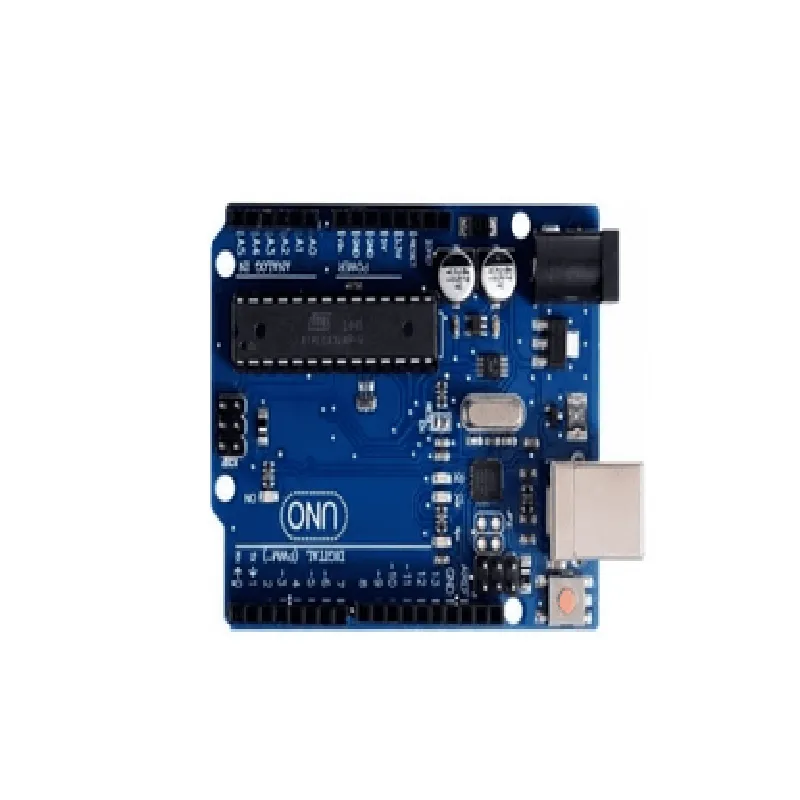

Arduino Uno R3 compatible Board ( Pack of 25)

Stufin

Arduino Uno R3 compatible Board ( Pack of 25)

This product is not available in your location yet

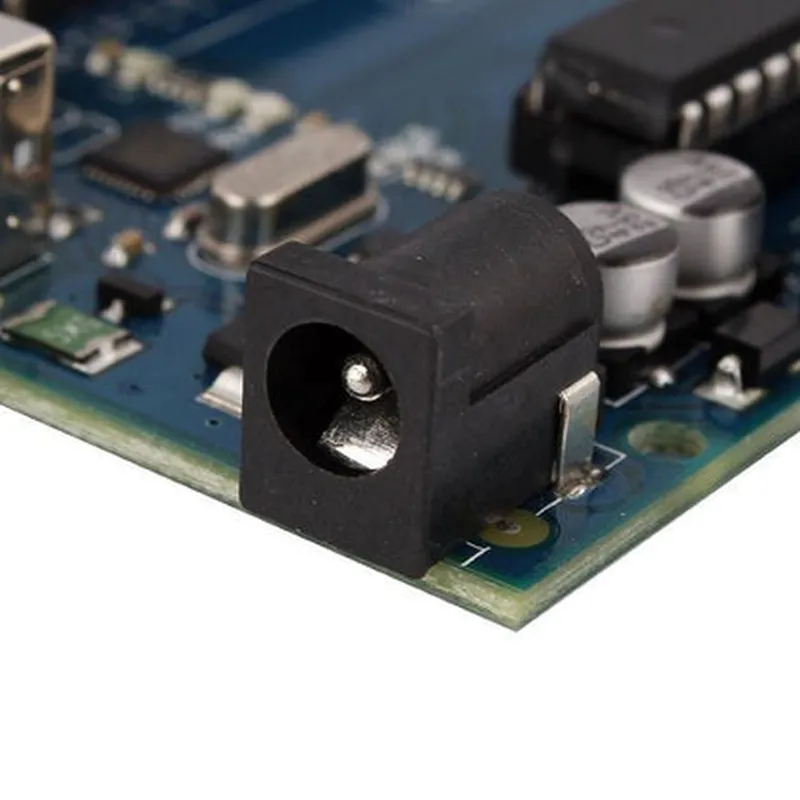

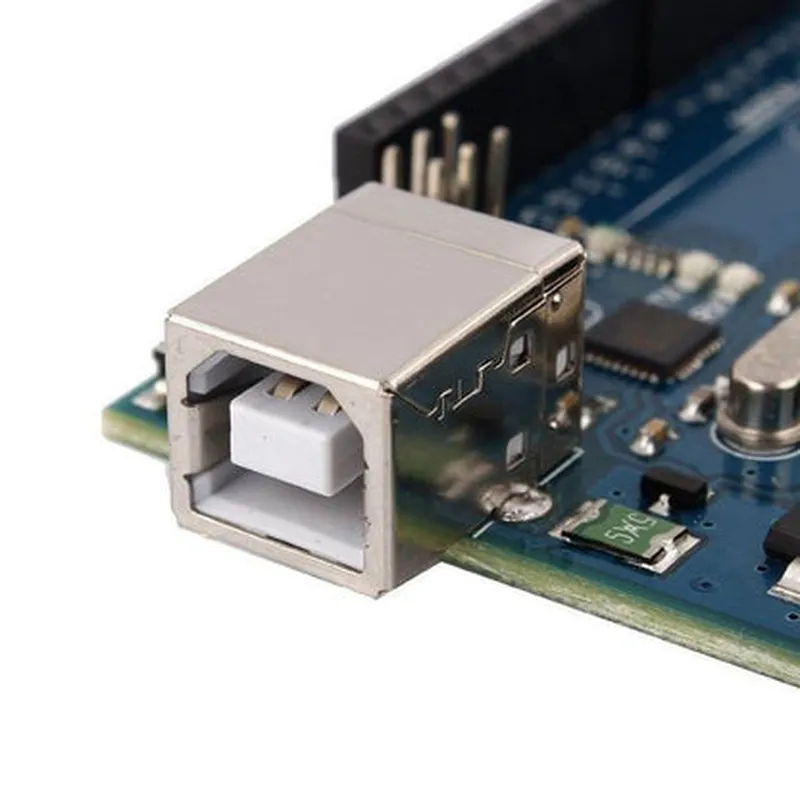

Description: 1. Arduino UNO R3 Compatible Boards (Pack of 25) are microcontroller boards based on the ATmega328P chip, capable of running the Arduino programming language. 2. Each board features 14 digital input/output pins (6 PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, USB connection, a power jack, an ICSP header, and a reset button. 3. These boards support both Arduino UNO and UNO R3 shields, providing versatility for various projects. 4. The boards have a maximum voltage input of 20V and a maximum current output of 400mA. 5. They come with an integrated USB connection, which makes it easier to program the board using any standard USB interface without needing additional hardware. 6. Arduino UNO R3 Compatible Boards are widely used in various projects, such as robotics, home automation, and IoT projects. 7. The boards can be programmed using the Arduino IDE (Integrated Development Environment), available for Windows, MacOS, and Linux. 8. Unique benefits include the ability to work wi

View Technical Documentation

Specification	Details
Microcontroller	ATmega328P (8-bit AVR 16 MHz)
Operating Voltage	5V (regulated) 7-12V (unregulated)
RAM	2 KB (ATMega328P built-in RAM)
Flash Memory	32 KB (program and data storage)
Digital I/O Pins	14 (6 of which provide PWM output)
Analog Input Pins	6
Analog Output Pins	6 (PWM capable)
DC Power Pin	5V (regulated) VIN (unregulated)
Reset Button	Yes with built-in reset circuit
Dimensions	53.39mm x 68.59mm
Weight	approximately 22 grams
