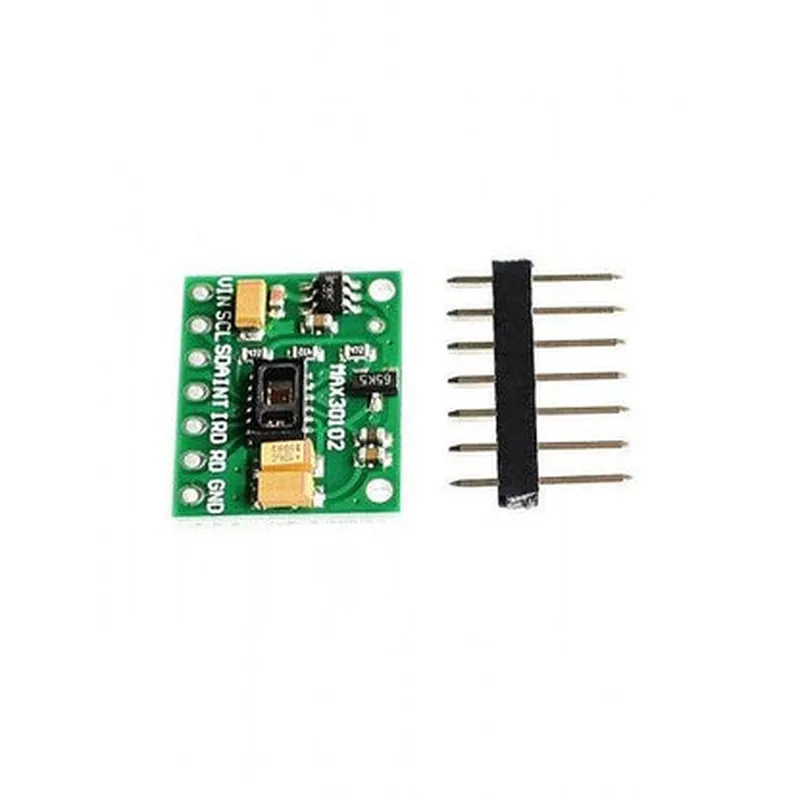

Description: MAX30102 Pulse Oximeter Heart Rate Sensor Module: 1. Pulse Oximetry Sensing: Maxim Integrated's MAX30102 is a compact, high-performance sensor module for noninvasive measurement of both heart rate (HR) and blood oxygen saturation (SpO2). 2. Easy Interfacing: Features an I²C interface for simple integration with microcontrollers and other devices, requiring minimal external components. 3. Low Power Consumption: Operates at 1.8V to 5.5V DC and draws less than 2 mA of current during operation, making it suitable for battery-powered applications. 4. LEDs for Heart Rate Detection: Includes red and infrared LEDs along with photodiodes, enabling accurate HR detection through the plethysmographic effect. 5. SpO2 Measurement: Uses the proprietary Signal Multiplexing System to provide high-resolution SpO2 readings with minimal interference from ambient light. 6. Adaptive Calibration: Includes self-calibrating features that minimize the need for manual calibration, ensuring accurate and consist
| Specification | Details |
|---|---|
| Operating Voltage | 2.7V to 5.5V (regulated) |
| Current Consumption | 18mA (typical) 25mA (max) |
| Accuracy | ±10bpm for heart rate ±3% saturation |
| Pulse Rate Range | 10bpm to 255bpm |
| Saturation Range | 0% to 100% |
| Frequency Response | 1Hz to 250Hz (sine wave) |
| Sensitivity | Adjustable via I2C register |
| Communication Interface | I2C (multiplexed up to 6 devices on one pin) |
| Resolution | 24-bit for saturation 32-bit for heart rate |
| Temperature Range | -20°C to +40°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 13.5mm x 12.3mm x 4.0mm (module size) |
| Weight | approximately 2 grams |
