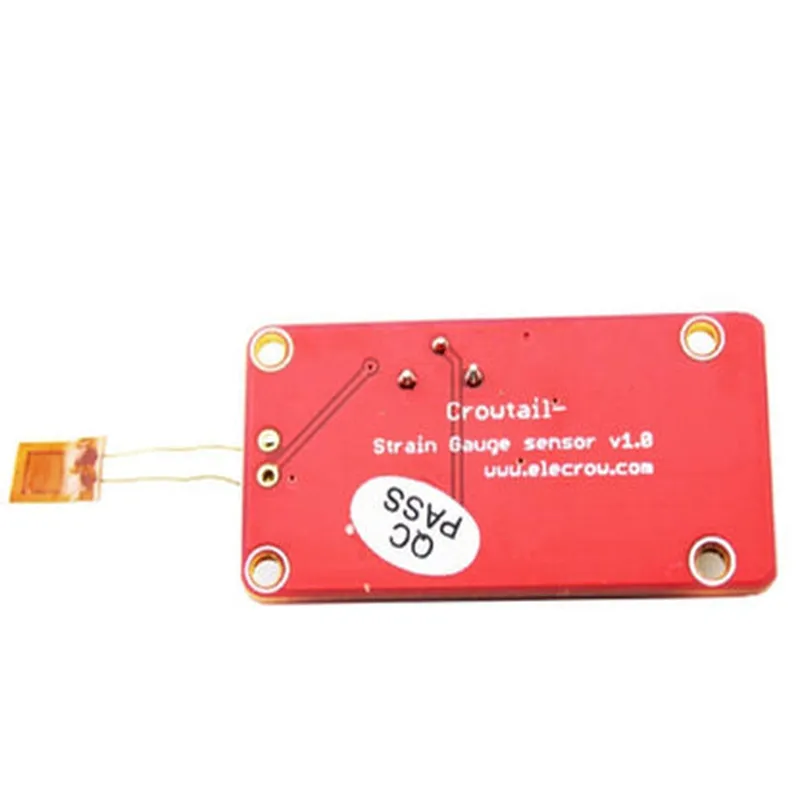

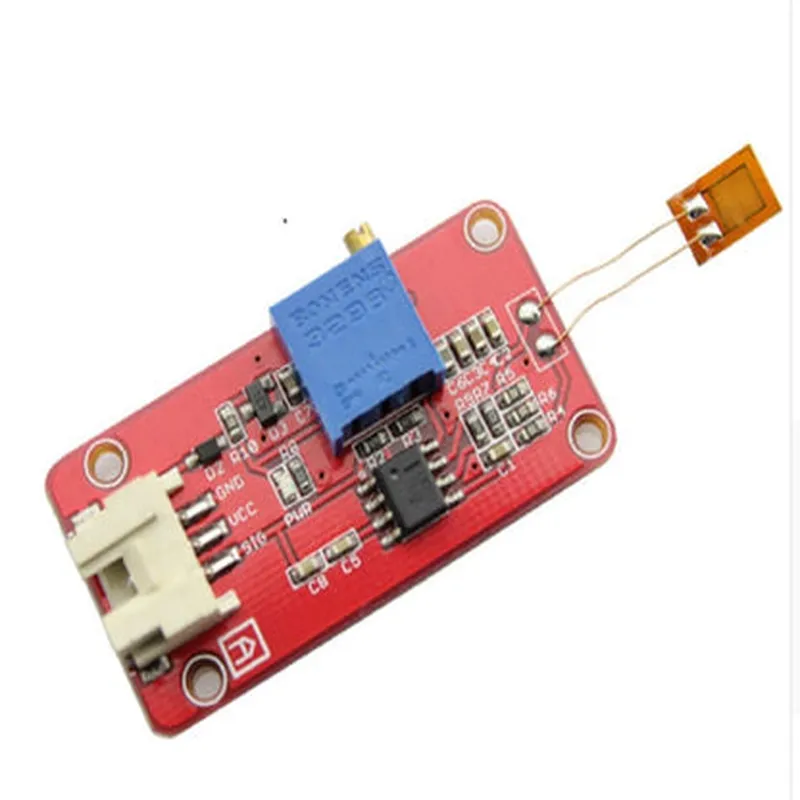

Strain Gauge Module

This product is not available in your location yet

Description: 1. Overview: A Strain Gauge Module is an essential IoT component used for measuring strain or force in various applications such as weight measurement, stress analysis, and structural health monitoring. 2. Construction: The module typically includes a strain gauge sensor, an amplifier circuit, and a bridge circuit configuration for converting mechanical strain into electrical resistance changes. 3. Strain Gauge Sensor: The heart of the system is the strain gauge sensor which generates a small electric signal when subjected to mechanical stress or strain. This signal is then amplified for further processing. 4. Bridge Circuit: The bridge circuit configuration is used to measure the resistance imbalance between the active and reference arms of the circuit. The signal obtained from the strain gauge sensor is introduced into one arm, causing an imbalance that generates an output voltage. 5. Amplifier Circuit: A built-in amplifier circuit enhances the weak output generated by the strai

View Technical Documentation

Specification	Details
Specification	Detail
Module Type	Wheatstone Bridge Strain Gauge
Sensor Type	Strain Gauge (Piezoresistive)
Measurement Range	±5% of full scale (user adjustable)
Full Scale Output	2.5mV/V (can be adjusted to user's requirements)
Output Signal	Linear output voltage proportional to strain
Supply Voltage	3.3V to 12V (user adjustable with onboard regulator)
Current Consumption	<10mA in active mode <1uA in sleep mode
Operating Temperature	-20°C to +60°C (industrial temperature range)
Humidity Range	0-95% RH non-condensing
Noise Resistance	>100mVpp of common-mode noise at 1kHz
Accuracy	±2% of full scale over operating temperature range
Calibration Options	User-adjustable zero and span calibration
Communication Interfaces	I²C SPI (configurable)
Package Size	35mm x 25mm x 12mm
