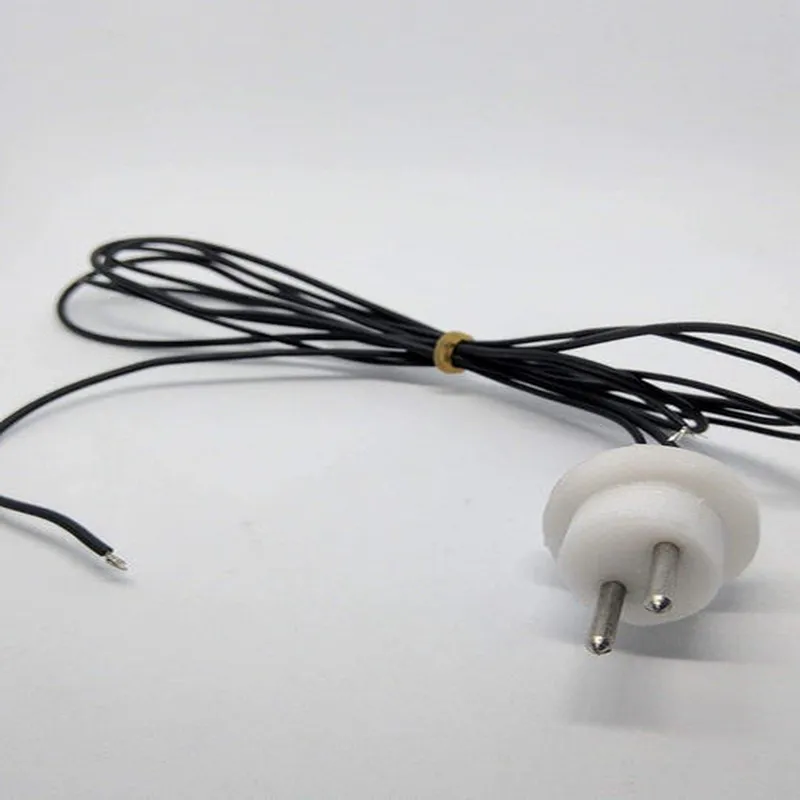

Float Sensor CSDP (Double Pin)

Stufin

Float Sensor CSDP (Double Pin)

This product is not available in your location yet

Description: 1. The Float Sensor CSDP is a versatile water level detection device, featuring a double pin configuration for easy connection to various microcontrollers or IoT platforms. 2. Design: This sensor consists of an infrared transmitter and receiver pair housed within a waterproof casing, with a floating element that breaks the IR beam when submerged to indicate a change in liquid level. 3. Functionality: The CSDP Float Sensor measures the height of liquids by detecting changes in the IR signal when the floater is either immersed or exposed depending on the liquid level. 4. Versatility: It can be used in various applications such as water tank monitoring, automating irrigation systems, flood detection, and liquid level control in industrial processes, making it a valuable addition to IoT projects. 5. Operating Principle: The sensor uses the principle of interruption in the IR signal when the float rises above or goes below the reference level to detect changes in liquid levels. 6. Com

View Technical Documentation

Specification	Details
Specification	Detail
Operating Principle	Capacitive sensing double pin design
Sensing Range	Up to 50mm (depending on water level)
Accuracy	±5% of measured value
Resolution	0.1mm resolution for 10mm range
Hysteresis	≤ 2%
Temperature Range	-20°C to +80°C
Humidity Range	Up to 90% relative humidity
Power Supply	3V to 5V (2 x AA batteries or external)
Current Consumption	≤ 10mA (typical)
Housing Material	Durable plastic
Dimensions	55mm x 30mm x 20mm
Weight	50g
Connection	Dual-pin connector for easy installation
