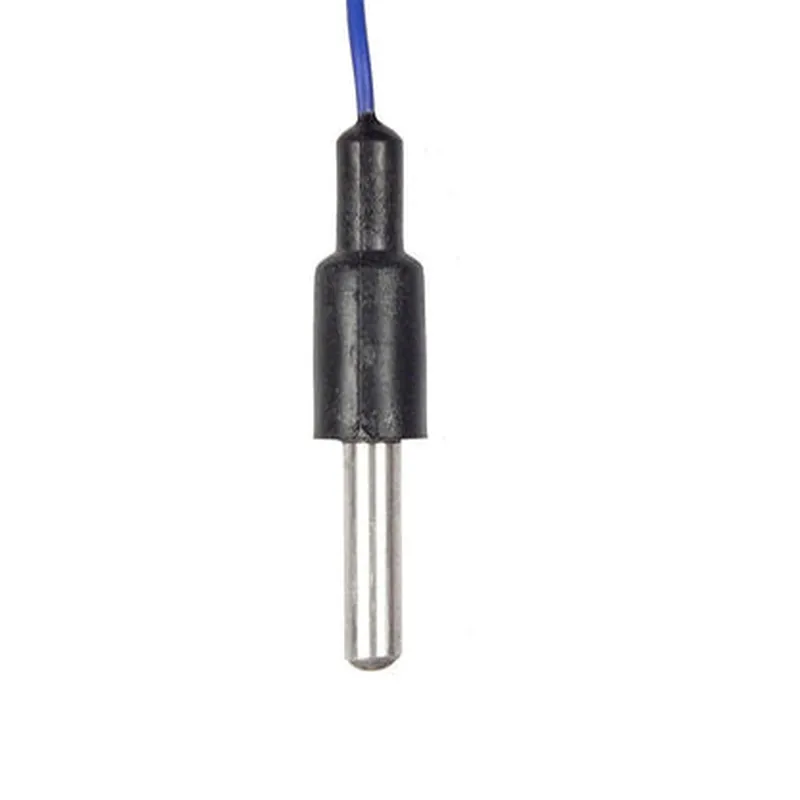

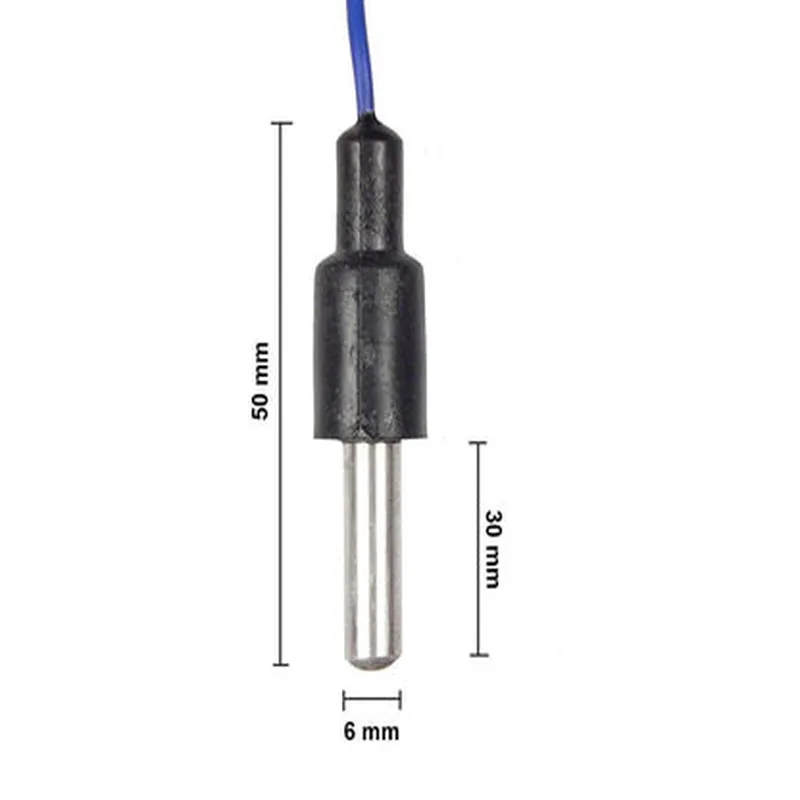

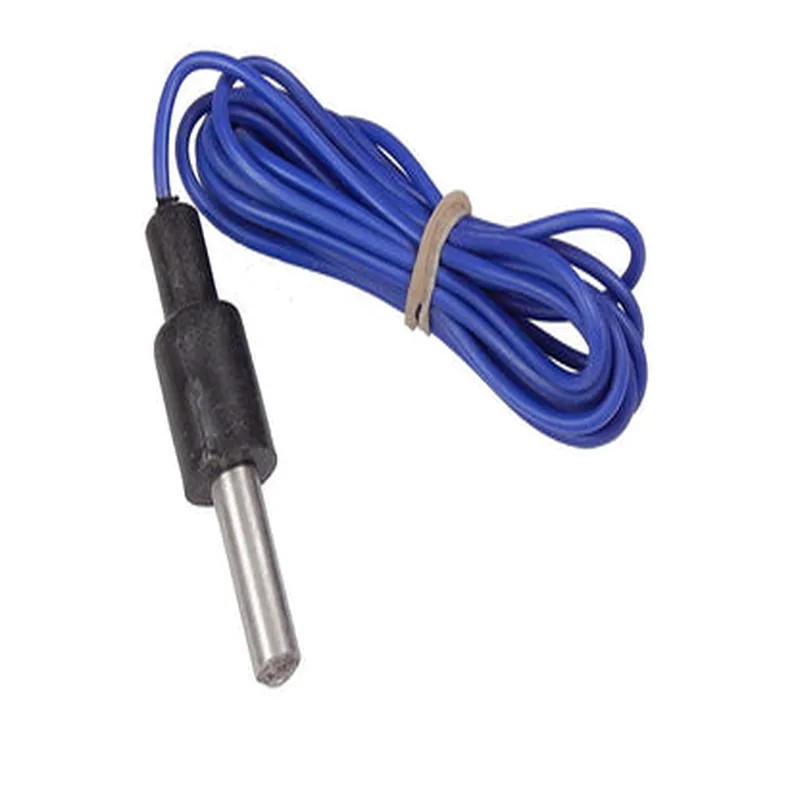

Float Sensor Contact Type CSSP

This product is not available in your location yet

Description: 1. The Float Sensor Contact Type CSSP is an electrical sensor designed for detecting the presence or absence of liquids at specific levels in applications ranging from industrial processes to domestic systems. 2. Design: This sensor features a conductive float that breaks and completes an electrical circuit when submerged or removed from the liquid, making it an excellent choice for level detection applications. 3. Versatility: Available in various sizes to cater to different application requirements, the CSSP is suitable for use with water, oil, and other non-conductive liquids by pairing it with a signal conditioner or transmitter. 4. Robust Construction: Constructed using high-quality materials, such as stainless steel and PTFE, this sensor offers excellent resistance to corrosion, making it ideal for use in harsh environments. 5. Easy Installation: With its straightforward design, the CSSP float sensor can be installed quickly and easily, requiring minimal setup time and effor

View Technical Documentation

Specification	Details
Operating Principle	Capacitive sensing technology
Measurement Range	0-100mm (adjustable)
Accuracy	±1% FS (full scale)
Temperature Range	-20°C to +80°C
Power Supply	3.3V to 24V DC 50mA max
Connection Type	Screw terminals 2-pin
Output Type	NPN Open Collector dry contact
Switching Time	<20ms
Hysteresis	Adjustable (built-in)
Material	PC (Polycarbonate) PBT (Polybutylene Terephthalate)
Certifications	UL CE RoHS compliant
