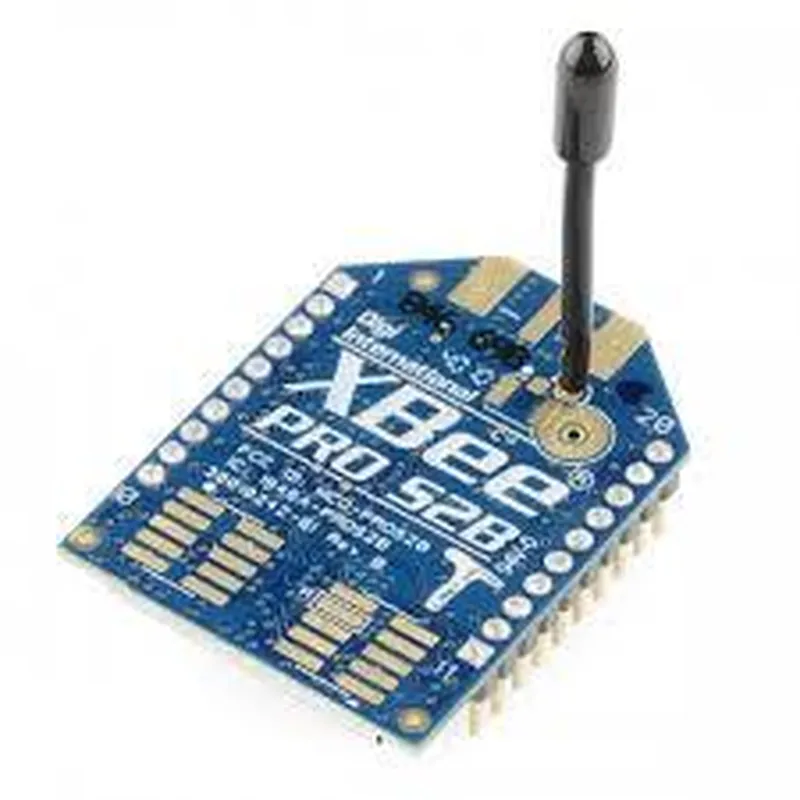

XBee-PRO ZB S2B Extended Range Module

Stufin

XBee-PRO ZB S2B Extended Range Module

This product is not available in your location yet

Description: 1. The XBee-PRO ZB S2B Extended Range Module is a wireless communication device designed for the Internet of Things (IoT) applications. It's based on the Zigbee protocol (S2B stack) and operates in the 2.4GHz ISM band. 2. This module boasts extended range capabilities, making it an ideal choice for long-range wireless communication between IoT devices. With a line-of-sight range of up to 10km (in open areas), it significantly increases the coverage area compared to standard XBee modules. 3. The XBee-PRO ZB S2B Extended Range Module supports both Zigbee coordinator and router roles, making it versatile for various use cases. It can be used to create a standalone Zigbee network or extend the reach of an existing one. 4. This module features a robust, industrial-grade design with an IP64 rating. This makes it suitable for outdoor installations and rugged environments where exposure to dust and moisture might occur. 5. It comes with an integrated temperature sensor, offering real-time

View Technical Documentation

Specification	Details
Frequency	2.4 GHz ISM band
Data Rate	250 kbps (default) configurable to 1 Mbps
Range	Up to 3 miles (4.8 km) with up to 6 dBm EIRP
Power Source	2 x AAA batteries or external power supply
Voltage Range	2.7 - 3.7 VDC
Current Consumption	13 mA (TX) 10 mA (RX) 5 μA (sleep)
Modulation	OQPSK 4FSK
Protocol	Zigbee supports IEEE 802.15.4
Encryption	AES-128 CBC mode
Dimensions	19 mm x 21 mm x 3.5 mm
Weight	approximately 7 grams
