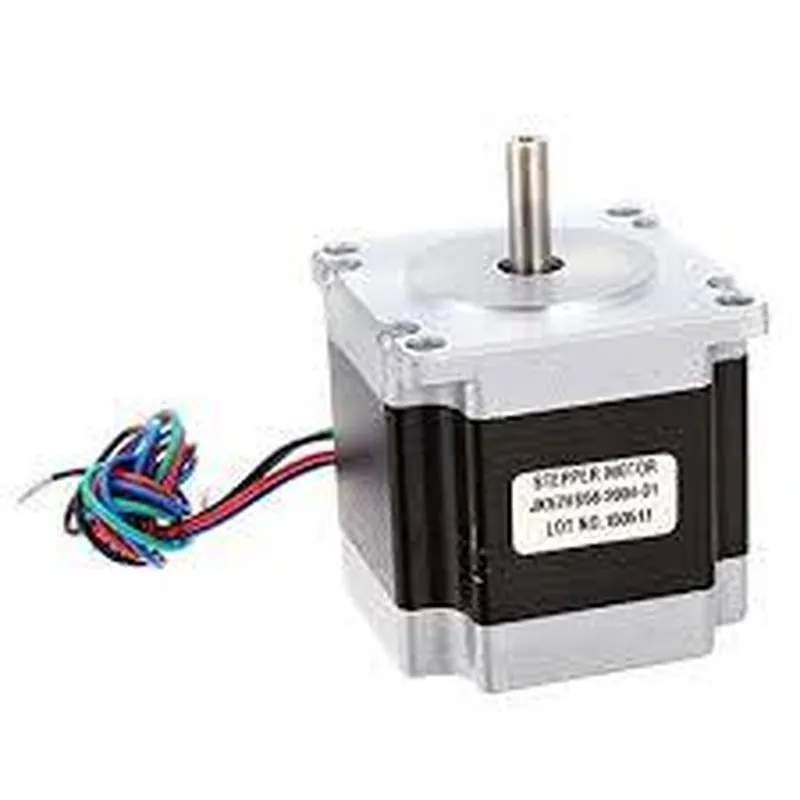

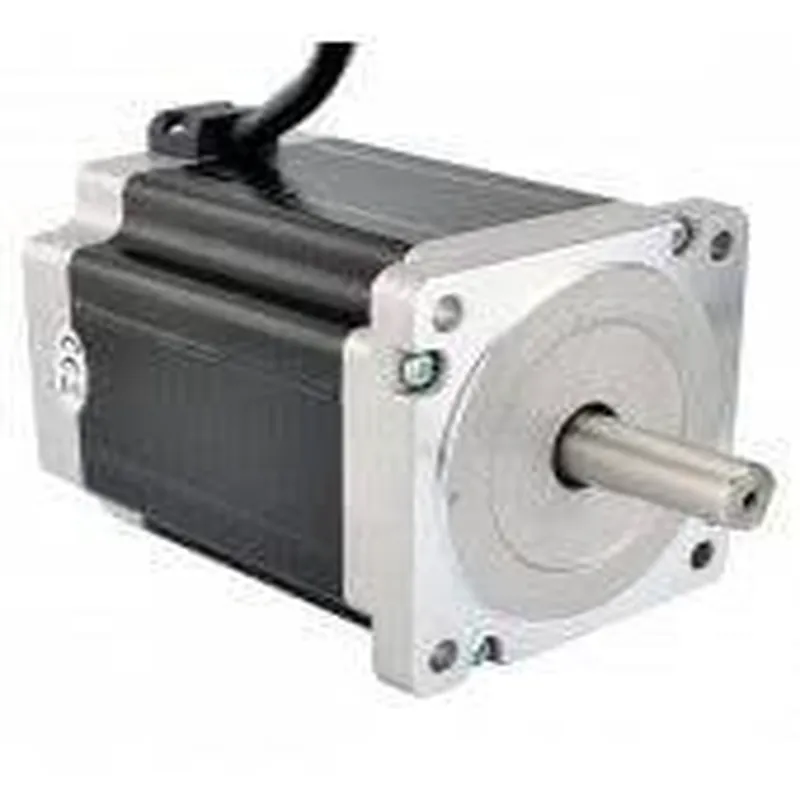

NEMA17 Two Phase Hybrid Stepper Motor

Stufin

NEMA17 Two Phase Hybrid Stepper Motor

This product is not available in your location yet

Description: 1. NEMA17 Two Phase Hybrid Stepper Motor is a versatile motor designed for precise positioning in various automation applications. It combines the advantages of both DC and AC stepper motors, offering improved torque and efficiency. 2. Size and Shape: This motor adheres to the NEMA 17 frame size standard, making it compatible with numerous mounting configurations and control systems. Its cylindrical shape features a diameter of approximately 4 inches (101.6mm) and a height of around 3 inches (76.2mm). 3. Phases: This motor operates on two phases, reducing power losses and increasing efficiency compared to motors with more phases. It is suitable for applications that require less torque but higher speed or precision. 4. Hybrid Design: The NEMA17 Two Phase Hybrid Stepper Motor integrates the benefits of both DC and AC motors: the current control and positioning accuracy of DC motors, and the power efficiency and ease of use of AC motors. 5. Torque Capacity: Depending on specific mod

View Technical Documentation

Specification	Details
Motor Type	2-Phase Hybrid Stepper Motor
Frame Size	NEMA 17 (42mm x 42mm)
Torque Rating	0.8Nm (at rated voltage and frequency)
Step Angle	1.8°
Phase Resistance	100Ω (per phase)
Inductance	10mH (per phase)
Voltage Rating	6V - 24V
Current Rating	0.5A - 2A
Speed	Up to 3000 steps/second
Hold Torque	80% of rated torque (at 1kHz frequency)
Holding Power	15N·m (at 1kHz frequency)
Noise Level	< 60 dB (at 100mm/s speed)
