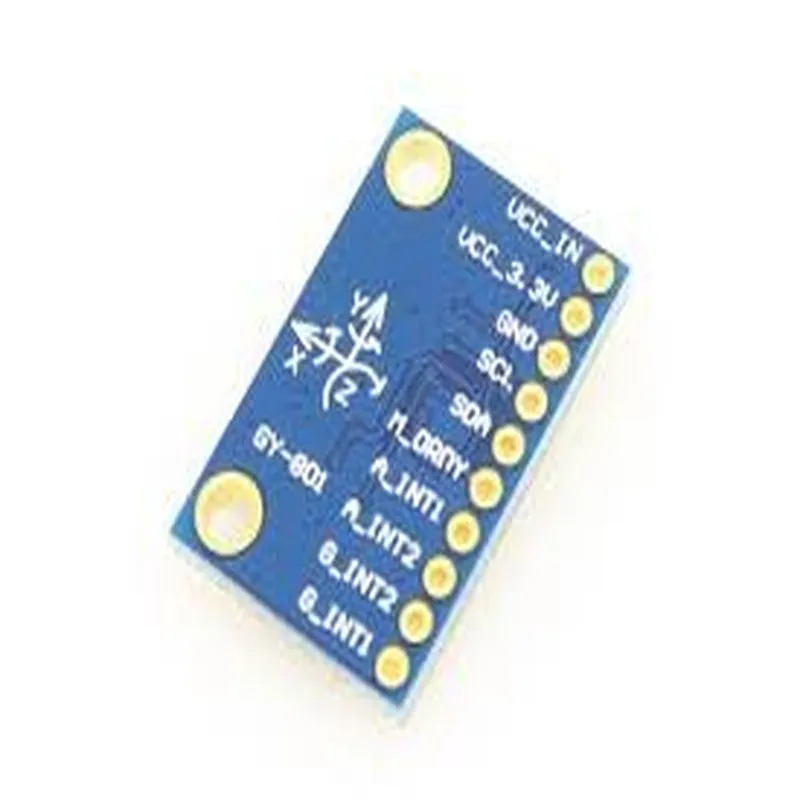

Description: 1. Overview: The GY801 is a 9-Axis Magnetic Acceleration Gyroscope Module, which integrates a 3-axis accelerometer and a 6-axis gyroscope for precise motion sensing. 2. Features: It offers a measurement range of ±2g for acceleration and ±500°/s for angular velocity. The module operates on a single +5V DC power supply, with an output data rate up to 800Hz. 3. Sensor Integration: The GY801 supports both I²C and SPI communication protocols, allowing easy integration into microcontroller projects and various IoT applications. 4. Calibration: It comes calibrated from the factory, but users can perform self-calibration to improve accuracy for their specific application. 5. Applications: This versatile module is suitable for various applications like robotics, drones, VR systems, and motion detection in smart homes or industrial settings. 6. Sensors Combination: The combination of gyroscope and accelerometer data allows for accurate determination of orientation, tilt, and angular veloci
| Specification | Details |
|---|---|
| Sensor Type | 9-Axis (3-Axis Accelerometer 3-Axis Gyro 3-Axis Magnetometer) |
| Accelerometer Range | ±2g ±4g ±6g ±8g ±12g |
| Gyroscope Range | ±100°/s ±200°/s ±300°/s ±400°/s ±500°/s |
| Magnetometer Range | ±1.3γ (1.3 milligauss) |
| Resolution | Accelerometer: 12-bit (0.003g) Gyroscope: 16-bit (0.01°/s) Magnetometer: 13-bit (0.0012γ) |
| Sampling Rate | Up to 100Hz (Accelerometer and Gyroscope) up to 50Hz (Magnetometer) |
| Communication Interface | I2C SPI UART |
| Operating Voltage | 3.5V to 6V |
| Current Consumption | Typically 9mA (with all sensors enabled at maximum rate) |
| Dimensions | 12mm x 8mm x 4mm |
| Weight | Approximately 2 grams |
| Operating Temperature | -20°C to +70°C |

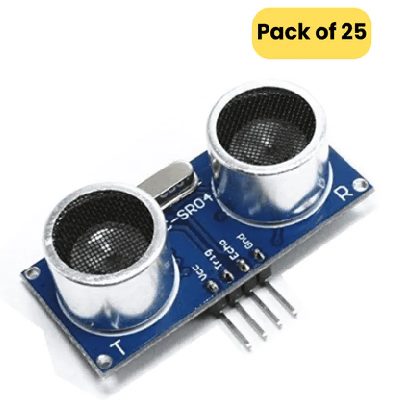

1. The HC-SR-04 Ultrasonic Se...
1. The HC-SR505 Mini PIR Moti...
1. Microwave Radar Human Body...

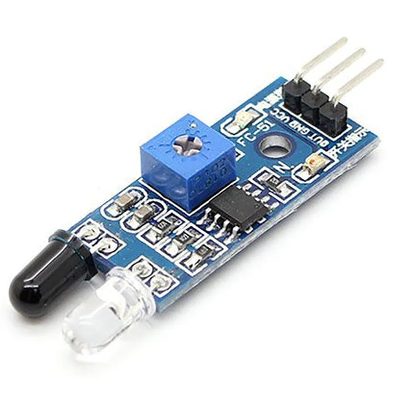

1. Overview: IR Obstacle Avoi...

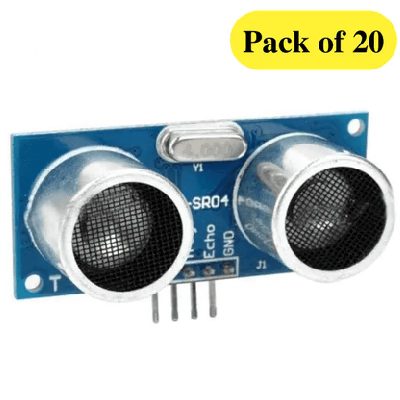

1. HC-SR04 is a high-precisio...
