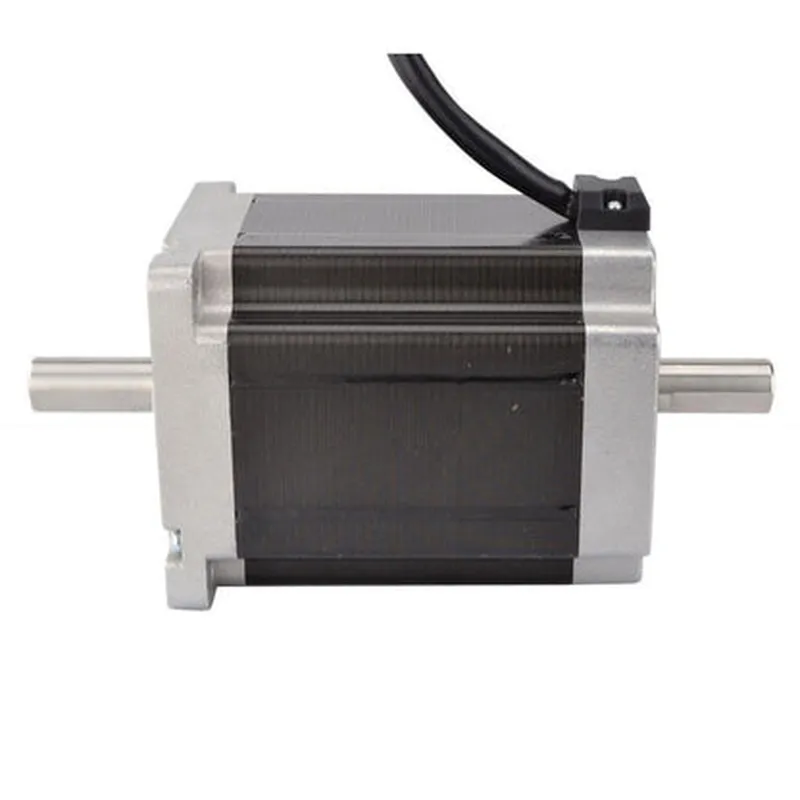

Description: 1. Dual Shaft NEMA 34 CNC Stepper Motor Model 34HS46-5004D is a high-performance motor designed for precise positioning in CNC (Computer Numerical Control) machines and automated systems. 2. Features: This stepper motor comes with dual shafts for increased rigidity and improved accuracy, NEMA 34 frame size, 8.5Nm maximum torque, 5A continuous current rating, and a step angle of 1.8 degrees. 3. Performance: The Dual Shaft NEMA 34 Stepper Motor provides high precision and repeatability suitable for critical applications requiring exact positioning in CNC machines and other automated systems. 4. Versatility: With its broad operating voltage range of 12-48V DC, this motor can be used in various industries, such as manufacturing, engineering, robotics, and automation, to power diverse applications with varying power requirements. 5. Unique Benefits: The dual shaft design improves the overall stability of the motor by reducing flexing under heavy loads, ensuring better performance and l
| Specification | Details |
|---|---|
| Motor Type | Dual Shaft NEMA 34 CNC Stepper Motor |
| Frame Size | NEMA 34 (57mm x 60.3mm) |
| Shaft Diameter | 5mm x 2 |
| Step Angle | 1.8° |
| Torque Rating | 8.5 NM at 4A 5A continuous |
| Current Rating | 3A to 6A (depending on the winding) |
| Resistance (Winding) | 1.7 Ohm / Phase |
| Inductance (Winding) | 0.55 mH / Phase |
| Voltage Rating | 2.5 VDC to 3.4 VDC (depending on the winding) |
| Temperature Range | -20°C to 70°C |
| Insulation Class | F (155°C) |
| Lead Length | 230mm |
| Material | Steel Copper |
| Certification | CE RoHS compliant |
