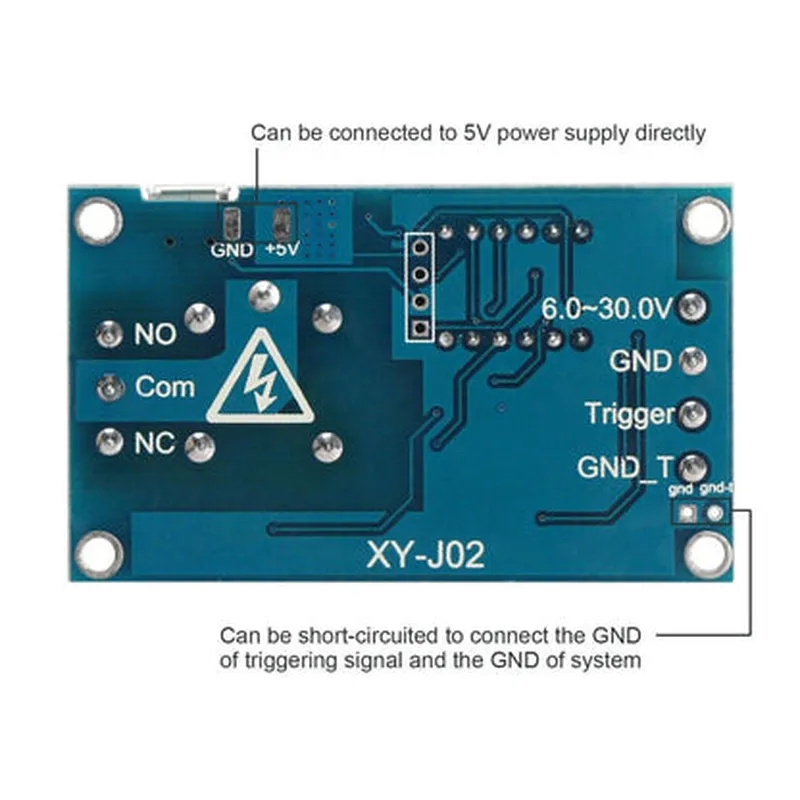

Description: 1. DC 6V to 30V One Way Relay Module is an electric relay designed for single pole, single throw (SPST) applications. It provides a cost-effective solution for controlling higher voltage AC or DC circuits using a lower voltage control signal. 2. Power Input: This relay module accepts a DC input voltage ranging from 6V to 30V. Its wide power input range makes it suitable for various IoT projects and applications where different power sources are used. 3. Coil Operating Voltage: The coil of the relay operates on DC voltage. It has a nominal operating voltage of 12V but can be triggered with a minimum voltage of 8V and a maximum voltage of 35V, ensuring flexibility in powering the control circuit. 4. Relay Contact Rating: With a contact rating of 10A at 250V AC or 30V DC, this relay is suitable for controlling medium-power loads such as motors, lamps, and solenoids. It can handle the majority of IoT projects' power requirements. 5. Switching Operation: The One Way Relay Module featur
| Specification | Details |
|---|---|
| Voltage Input | 6V to 30V DC (wide input range) |
| Relay Type | Electromechanical One-way |
| Contact Rating | SPDT (Single Pole Double Throw) |
| Switching Voltage | Up to 250V AC or 30V DC |
| Switching Current | Up to 10A |
| Operating Frequency | Up to 100Hz |
| Power Consumption | Low power consumption (< 1W) |
| Dimension | Compact size (approx. 2cm x 2cm) |
| Weight | Light weight (approx. 5g) |
| Connectors | Terminal block or PCB mount |
