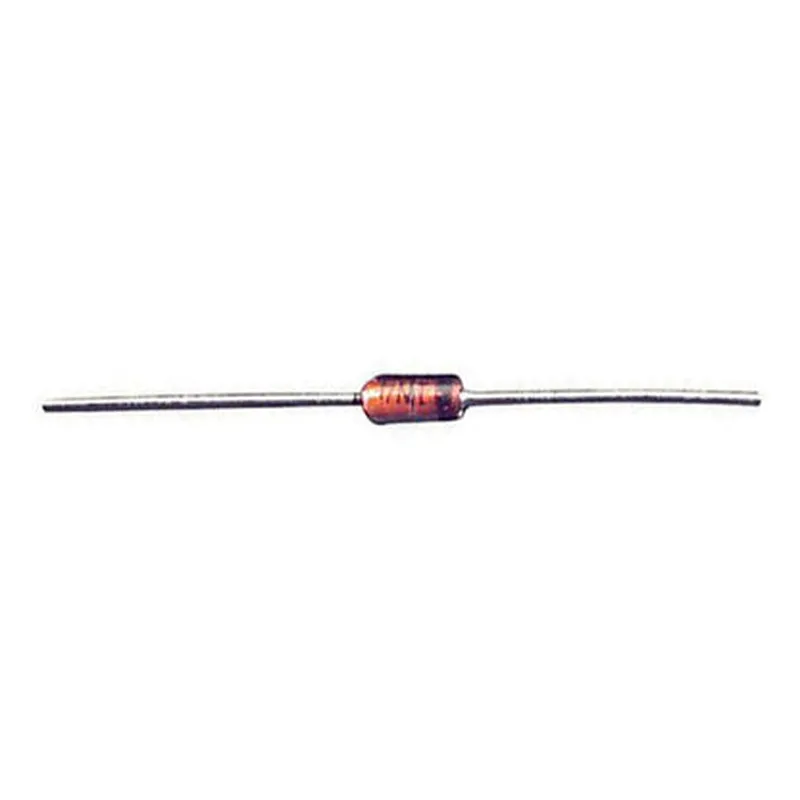

Description: 1. The 1N4148 Diode is a low power, general purpose diode available in a plastic packaging. Each pack includes ten individually encapsulated diodes. 2. Features: It has a forward voltage drop of approximately 0.65V at room temperature and can carry a maximum continuous current of 200mA. The reverse leakage current is typically below 1μA. 3. Applications: Widely used in various electronic circuits such as rectifiers, clamper circuits, voltage multipliers, voltage regulators, and protection circuits due to its low forward resistance. 4. Symmetrical: Unlike some other types of diodes, the 1N4148 is a symmetrical diode, meaning it can be used interchangeably in both forward and reverse direction applications. 5. Temperature Coefficient: The temperature coefficient of this diode is relatively low at -2mV/°C, which makes it suitable for applications where temperature stability is important. 6. Reverse Voltage: Capable of withstanding a reverse voltage up to 100V, making it ideal for vo
| Specification | Details |
|---|---|
| Manufacturer | Various (e.g. ON Semiconductor NXP) |
| Package Type | TO-92 |
| Current Rating (I) | 500 mA |
| Forward Voltage (VF) | 0.7 V |
| Capacitance (C) | 1 pF |
| Temperature Range | -55°C to +125°C |
| Operating Frequency | DC |
