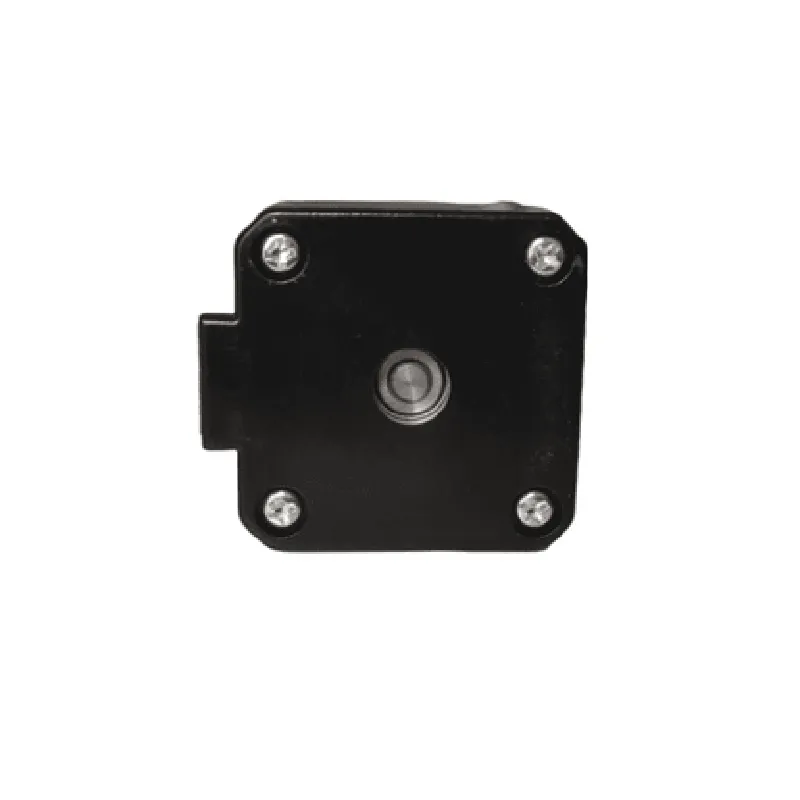

Description: 1. Type and Size: The '17HS4401S' is a NEMA 17 stepper motor with a frame size of 120mm x 120mm x 42mm, making it suitable for various automated applications in industries, hobby projects, and CNC machining. 2. Performance: It features a high torque output of up to 1.5Nm and a maximum speed of 3000 revolutions per minute (RPM). These specifications enable precise control and efficient operation for various applications. 3. Design: With five wires, this bipolar stepper motor is configured with two coils per phase. The open-frame design offers flexibility for mounting and cooling options, while maintaining a compact form factor. 4. Electrical Characteristics: This motor boasts low inductance, allowing it to respond quickly to electrical signals. It has a 3.5 ohm resistance per phase and requires a voltage range of 12-24V DC for operation. 5. Unique Benefits: Stepper motors like the '17HS4401S' provide precise positioning, eliminating the need for encoders or resolvers, as they hold
| Specification | Details |
|---|---|
| Motor Type | Stepper Motor (Hybrid Step) |
| Frame Size | NEMA 17 (42x42mm 2.54in x 2.54in) |
| Wire Type | 4-Wire (A-B-C-D) |
| Step Angle | 1.8° (200 steps per revolution) |
| Motor Current Rating | 440 mA |
| Voltage Rating | 24V DC |
| Resistance (Ohms) | 2.3 Ω |
| Inductance (mH) | 1.9 mH |
| Max Speed (steps/sec) | 1000 steps/sec |
| Torque (g-cm) | 220 g-cm |
| Inertia | 5.2 kg-cm² |
| Weight | 180 grams |
