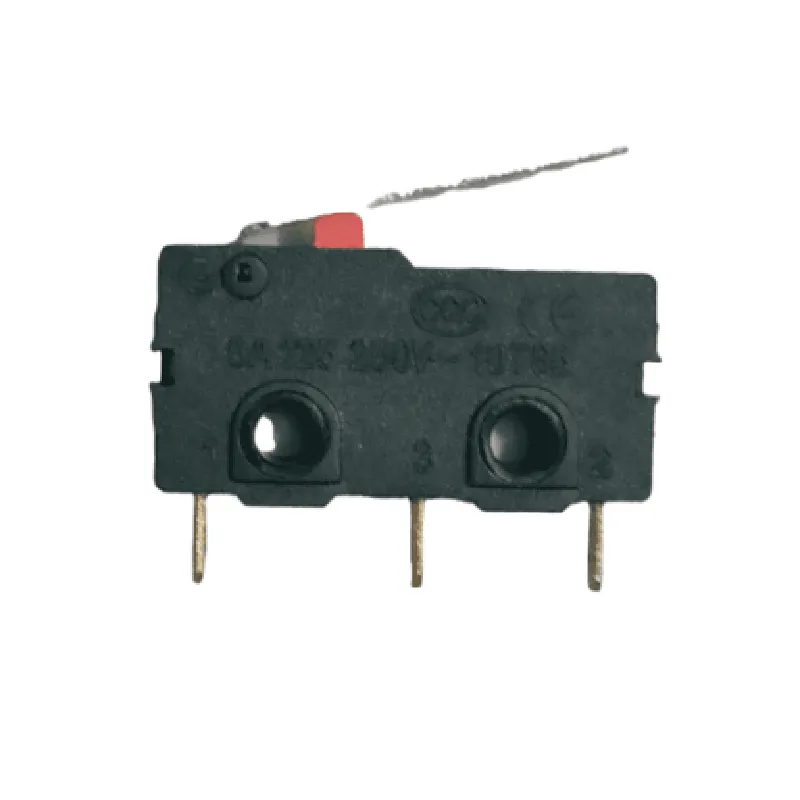

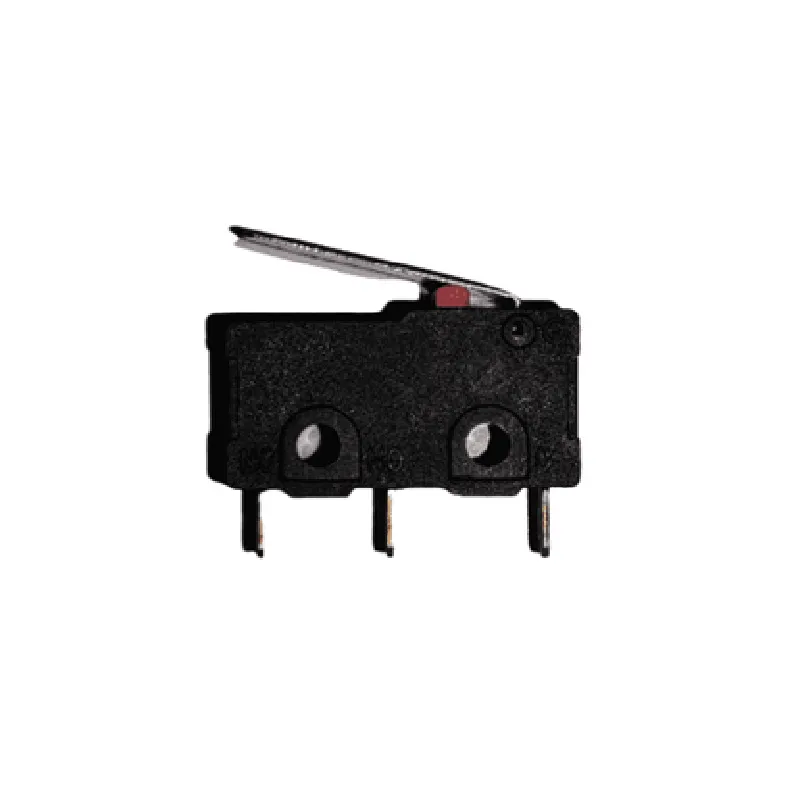

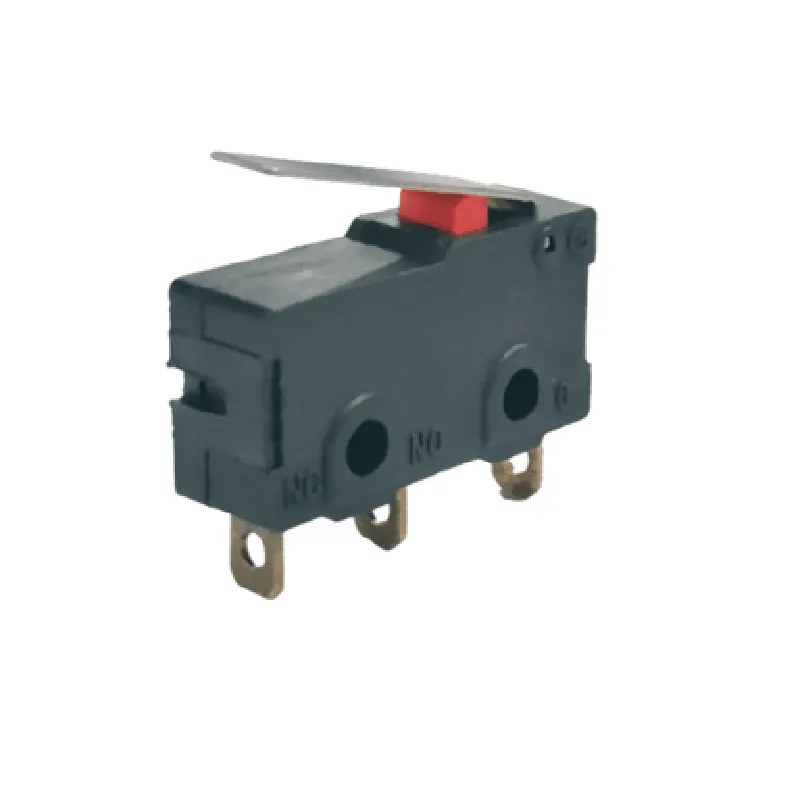

Description: 1. Mini limit switch 5A 250V is a compact and versatile electrical component designed for use in various automation applications. It's suitable for switching loads up to 5 Amperes and 250 Volts. 2. Features: Compact size (M12 mounting), normally open contact, adjustable limit setting with locknut, and high reliability contacts ensure long life and accurate operation. 3. Functionality: The mini limit switch functions by making or breaking a circuit when a predefined position is reached, thus enabling automation of processes based on physical conditions. 4. Applications: Ideal for use in industries like manufacturing, HVAC systems, food processing, and conveyor systems, among others, to control and monitor machines, pumps, compressors, and motors. 5. Installation: Easy to install using M12 mounting hardware with locknut for secure placement. Can be mounted vertically or horizontally depending on the application requirements. 6. Durability: Robust construction with a protective cove
| Specification | Details |
|---|---|
| Rating | 5 A (current) |
| Voltage Rating | 250 VAC (alternating current) or 250 VDC (direct current) |
| Switch Type | Miniature Limit Switch |
| Contact Configuration | SPST (Single Pole Single Throw) |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -30°C to +80°C |
| Insulation Resistance | 100 MΩ at 500 VDC |
| Leakage Current | ≤ 1 μA |
| Life Expectancy | > 10 million operations |
