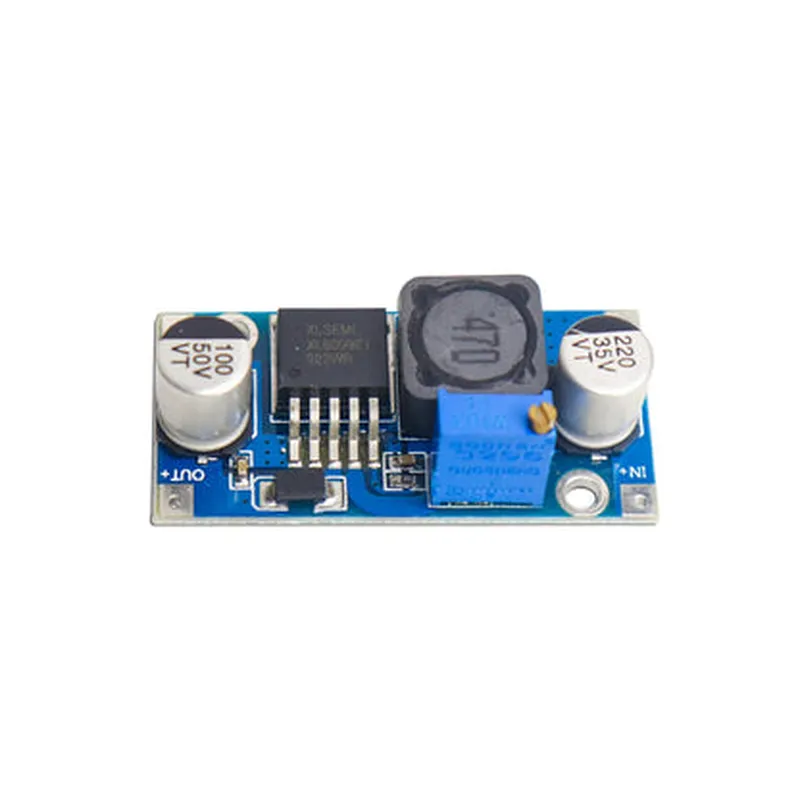

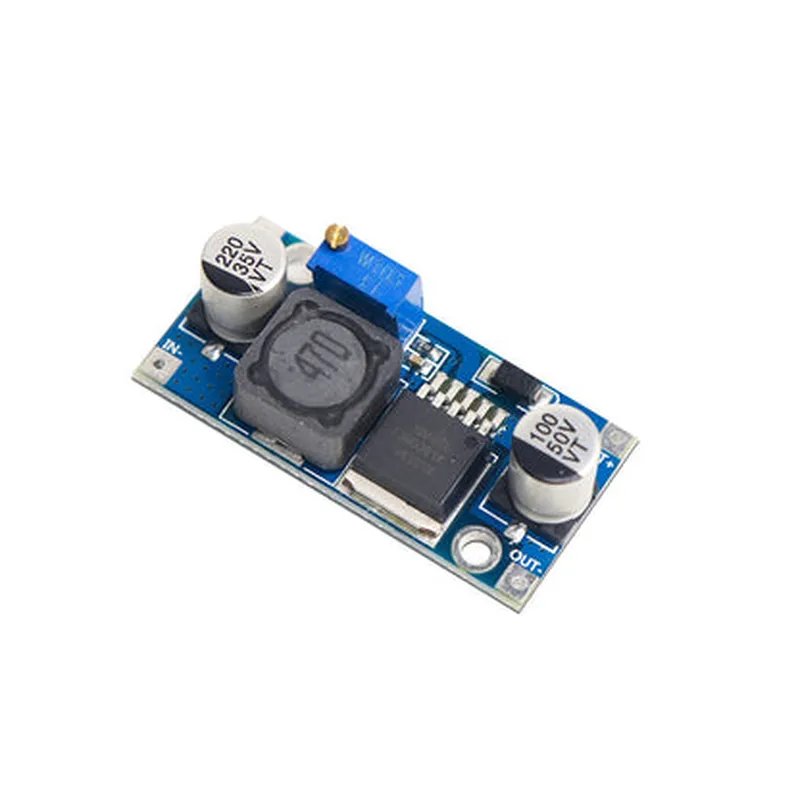

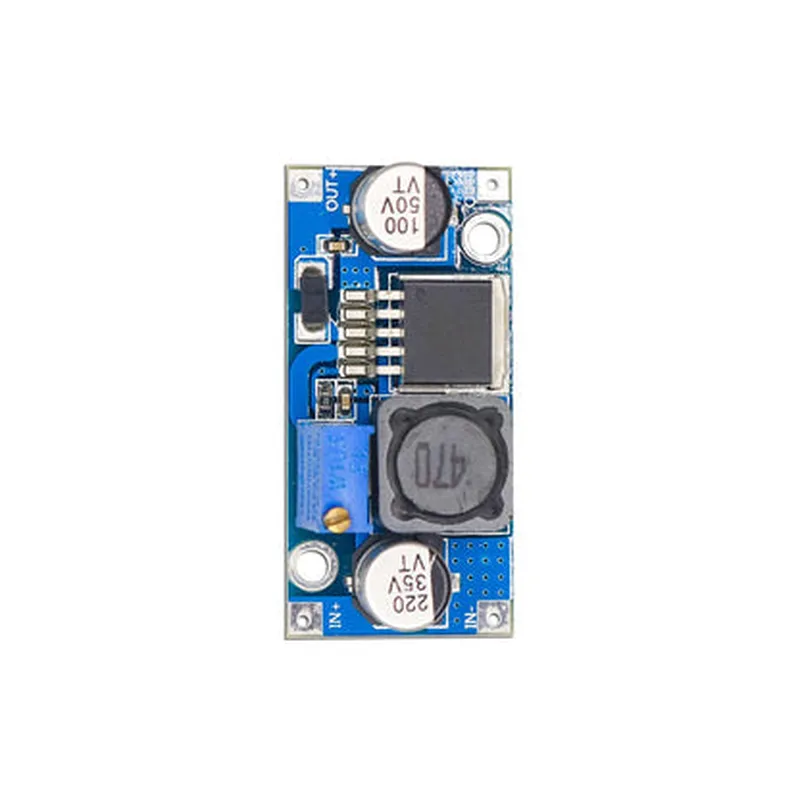

Description: 1. XL6009 is a versatile boost converter module suitable for powering various low-voltage devices with higher voltage power sources. It can step up voltages from as low as 2V to as high as 45V. 2. Features: The module includes an adjustable current limit, overcurrent protection, thermal shutdown, and reverse polarity protection. It also features a constant-voltage output, making it ideal for powering LED strips and other voltage-sensitive devices. 3. Input Voltage Range: XL6009 operates on an input voltage range of 2V to 45V DC, with a recommended operating voltage between 6V and 18V. It's important to note that the actual input voltage depends on the specific application and the capabilities of the power source. 4. Output Voltage: The output voltage is adjustable through an external potentiometer or resistor, allowing users to fine-tune the voltage level for their particular application. Typical applications include powering LED strips or other devices that require a higher voltag
| Specification | Details |
|---|---|
| Module Type | Boost Converter |
| Input Voltage Range | 3V to 35V |
| Output Voltage Range | Adjustable up to 37V (set by R1) |
| Boost Ratio | Up to 2.5:1 (dependent on input voltage) |
| Efficiency | Up to 95% (depending on load and input voltage) |
| Current Limit | Adjustable via DIP switch or external resistor |
| Switching Frequency | Fixed at 620 kHz |
| Package | TO-220 package with terminal pins |
| Dimensions | 18.5mm x 11.5mm x 3.8mm |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +150°C |
| Certification | Compliant with IEC/EN 62368-1 |
