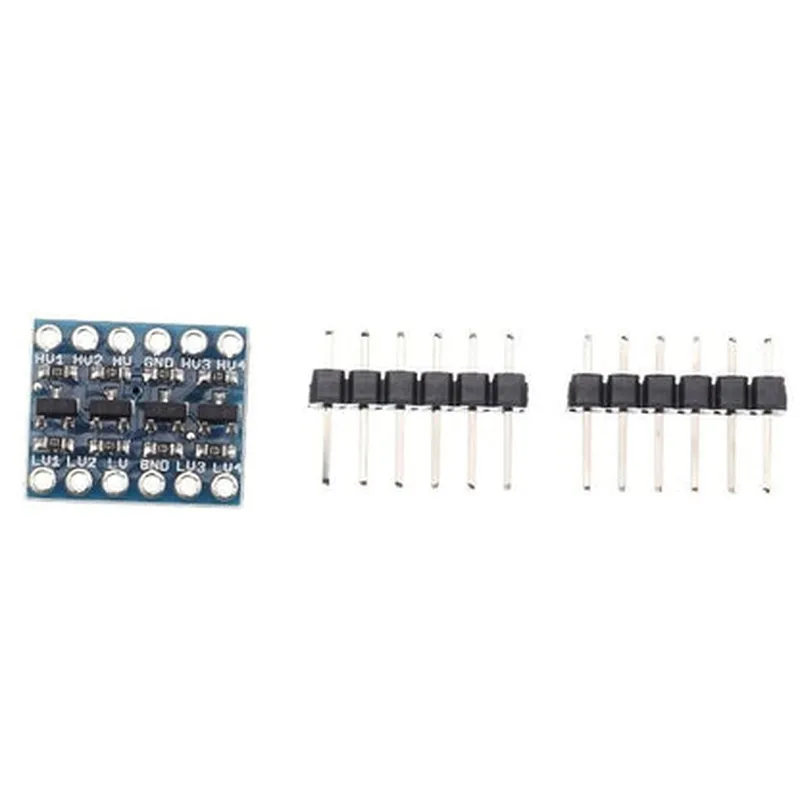

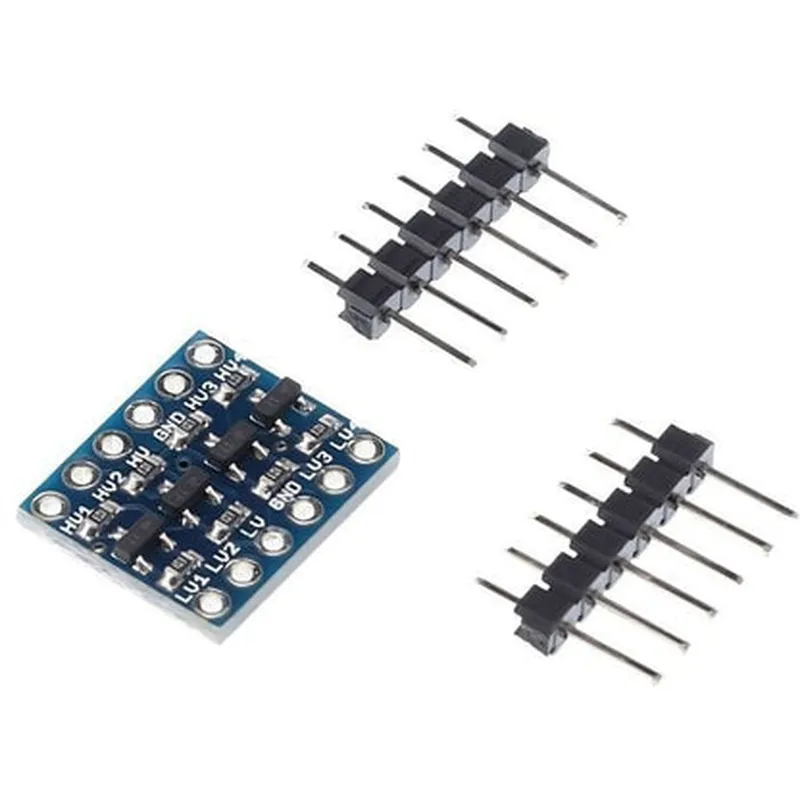

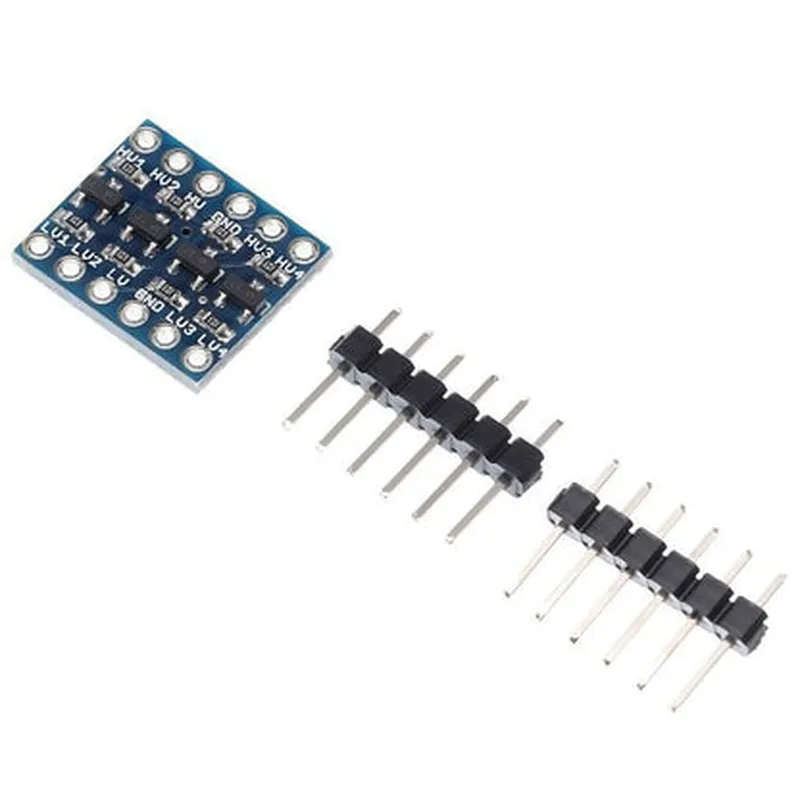

Description: 1. Function: This 4-channel logic level converter enables bidirectional data transfer between devices operating at I2C or SPI bus interfaces with voltage levels of 3.3V to 5V. 2. Versatility: Compatible with various microcontrollers, sensors, and actuators using standard I2C or SPI communication protocols, making it a versatile solution for IoT projects. 3. Input/Output Channels: The converter includes four independent input/output (I/O) channels for seamless data flow between devices with different voltage levels. 4. Selectable Interfaces: Supports both I2C and SPI communication interfaces, allowing users to adapt the converter to their project requirements. 5. Flexible Power Supply: Operates on a 3.3V to 5V power supply range, accommodating various voltage levels within IoT systems. 6. Easy Integration: The compact design with through-hole mounting and minimal external components simplifies the integration process into your project setup. 7. Bidirectional Data Transfer: This l
| Specification | Details |
|---|---|
| Voltage Range | 3.3V to 5V |
| Compatibility | I2C and SPI protocols supported |
| Number of Channels | 4 channels |
| Operating Temperature | -20°C to 85°C |
| Power Consumption | Typically <10 mA per channel |
| Connection Type | Pin headers for easy connection |
| Case Material | Durable plastic with secure screws |
| Dimensions | 25mm x 15mm x 8mm (L x W x H) |
| Weight | Approximately 20 grams |
| Operating Frequency | Up to 1 MHz for I2C up to 100 MHz for SPI |
| ESD Protection | Built-in ESD protection on all channels |
