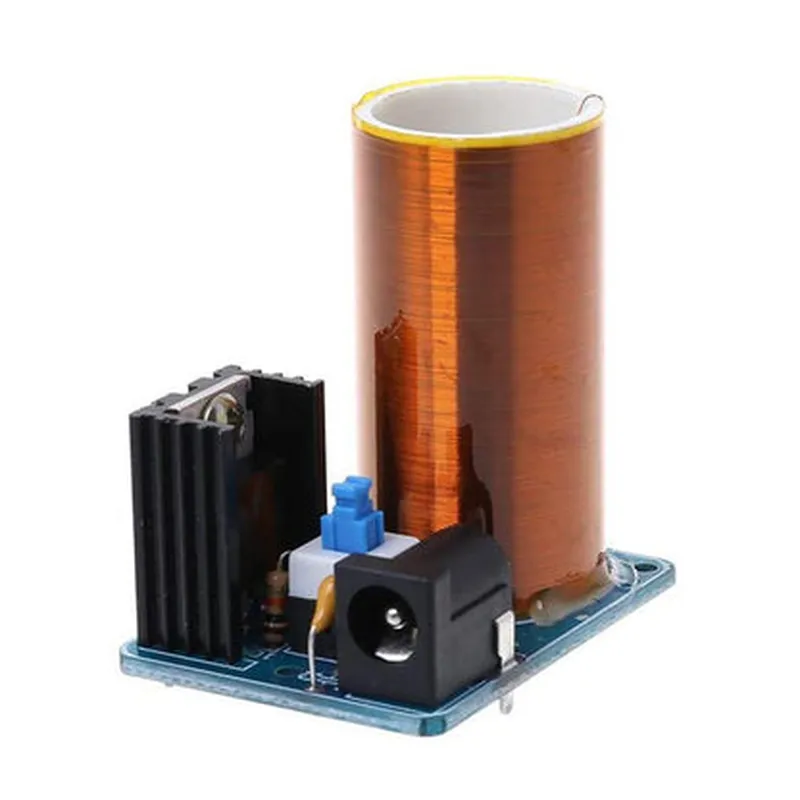

DIY Tesla Coil Mini Kit Wireless Electric Power Transmission

This product is not available in your location yet

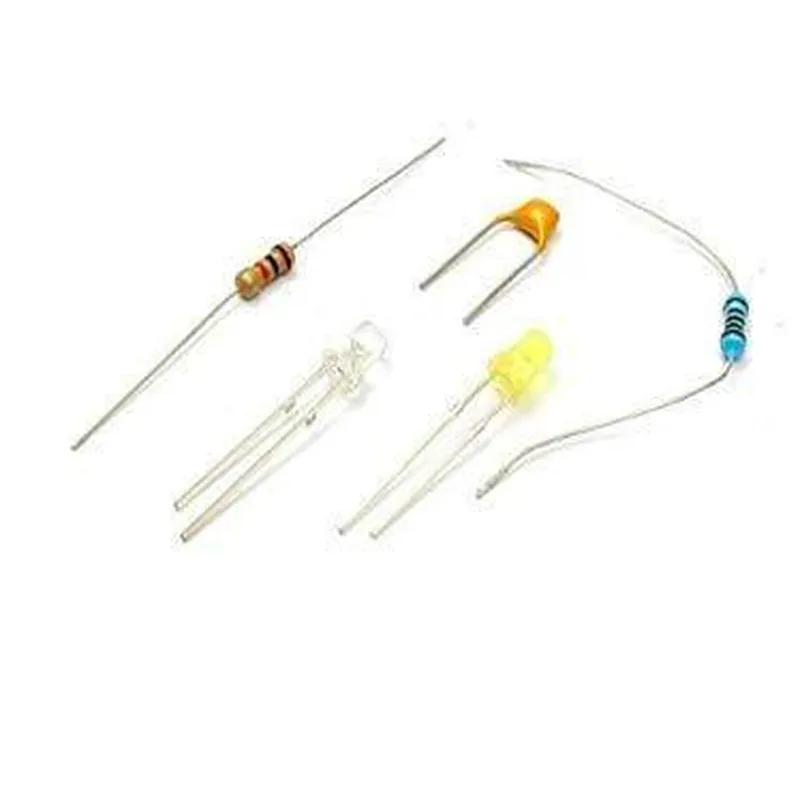

Description: 1. Overview: DIY Tesla Coil Mini Kit is a wireless electric power transmission system designed for hobbyists and enthusiasts to build their own Tesla coils, experimenting with Radio Frequency (RF) energy transfer. 2. Components: The kit includes essential parts like the transformer, primary and secondary coils, spark gap, capacitor, RF modulator, two wireless receivers, and all necessary wiring and hardware. 3. Wireless Power Transmission: This Tesla Coil Mini Kit features wireless power transmission capability via inductive coupling between the primary and secondary coils, allowing users to transmit and receive electrical energy without physical contact. 4. Customizable Design: Users can customize their Tesla coil design according to their preferences, offering a unique building experience that caters to individual creativity. 5. Safe Operation: The kit ensures safe operation through the use of proper insulation and shielding on the primary and secondary coils, minimizing the ris

View Technical Documentation

Specification	Details
Product Name	DIY Tesla Coil Mini Kit
Description	Miniature wireless electric power transmission kit based on Nikola Tesla's design principles
Output Power	Up to 100W ( adjustable with capacitor bank)
Frequency	150-200 kHz (adjustable with inductors and capacitors)
Primary Voltage	DC 12V 1.5A (suitable for 9-14V batteries or power supply)
Secondary Voltage	High-voltage AC up to 10kV (dependent on load and efficiency)
Safety Features	Integrated safety capacitor bank and spark gap protection
Dimensions	Approximately 15cm x 20cm x 30cm (6" x 8" x 12")
Weight	Approximately 0.5 kg (1.1 lbs) with components
Difficulty Level	Intermediate to advanced level DIY project
Target Audience	Hobbyists makers and electronics enthusiasts interested in wireless power transmission and high-voltage physics
