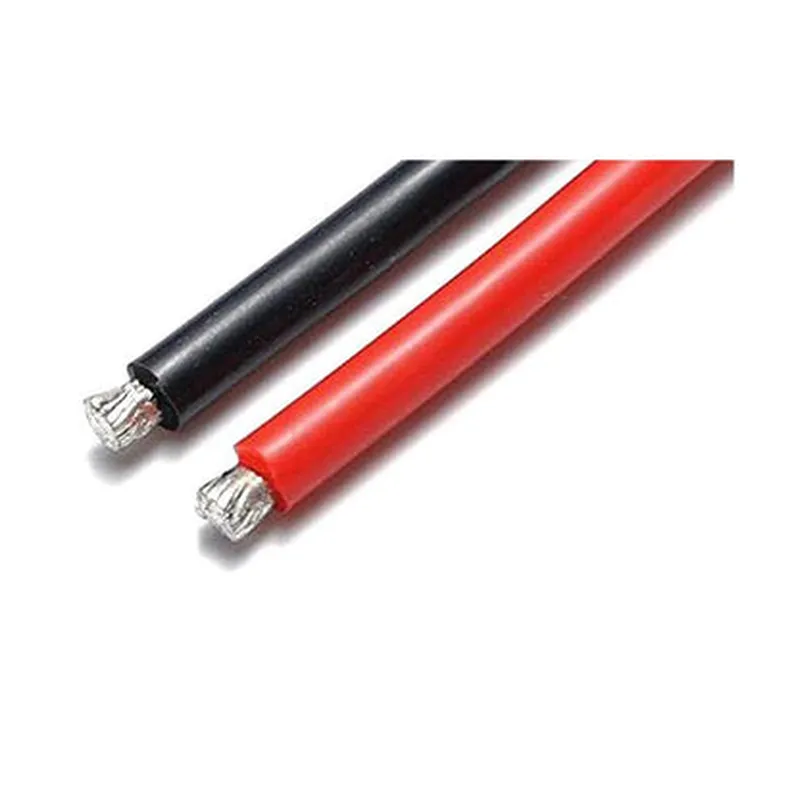

XT60 Female Connector with Silicon Wire

Stufin

XT60 Female Connector with Silicon Wire

This product is not available in your location yet

Description: 1. XT60 Female Connector: This component is an electrical connector specifically designed for heavy current applications in the field of RC hobby models and radio control systems. 2. Female Connector Design: The XT60 Female Connector is the counterpart to the XT60 Male Connector, creating a secure and reliable connection between two components. 3. High Current Capacity: With a current capacity of up to 125 Amps, the XT60 Female Connector is capable of handling heavy electrical loads, making it an ideal choice for powering large RC models or complex systems. 4. Silicon Wire: The silicone wire insulation ensures excellent insulation properties and can withstand high temperatures, providing increased safety and durability compared to traditional rubber-insulated wires. 5. Redesigned Terminal Design: The improved terminal design allows for a more secure connection between the pins and the wires, reducing the risk of corrosion and ensuring better conductivity. 6. Locking Mechanism: Th

View Technical Documentation

Specification	Details
Connector Type	XT60 Female (EC5 equivalent)
Wire Type	High-quality Silicone-coated wire
Insulation Material	Silicone
Wire Gauge	14 AWG (1.25mm²)
Operating Temperature	-40°C to +125°C
Voltage Rating	Up to 30V
Current Rating	Up to 30A
Contact Resistance	≤ 10mΩ
Dielectric Strength	≥ 1000Vrms (1 minute)
Material	Nickel-plated Brass
Mounting Type	Through-hole or Solderable
Dimensions	22.5mm × 13.8mm × 12.4mm
Weight	Approximately 14g
