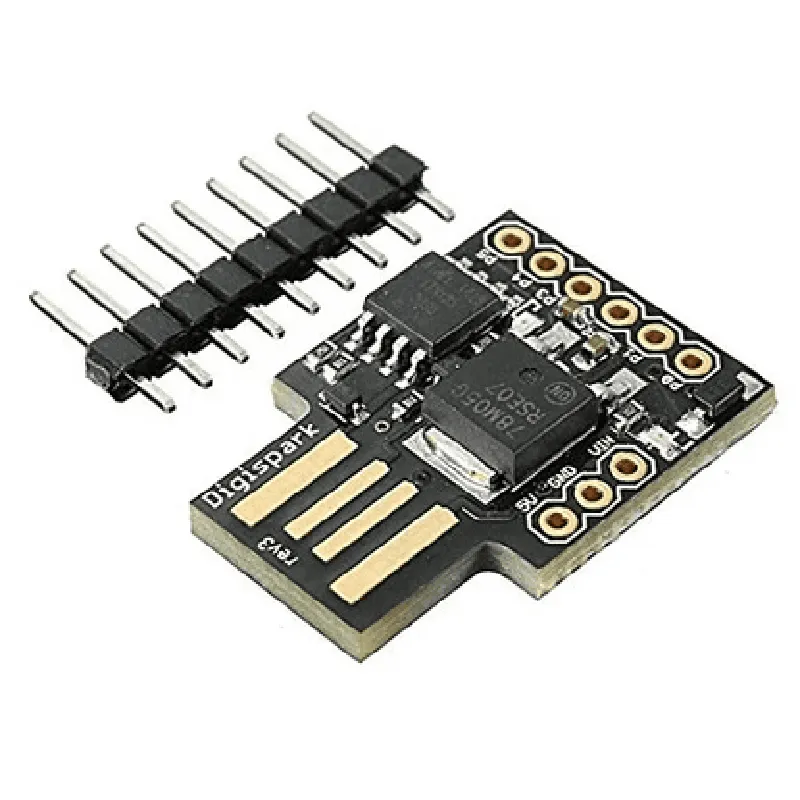

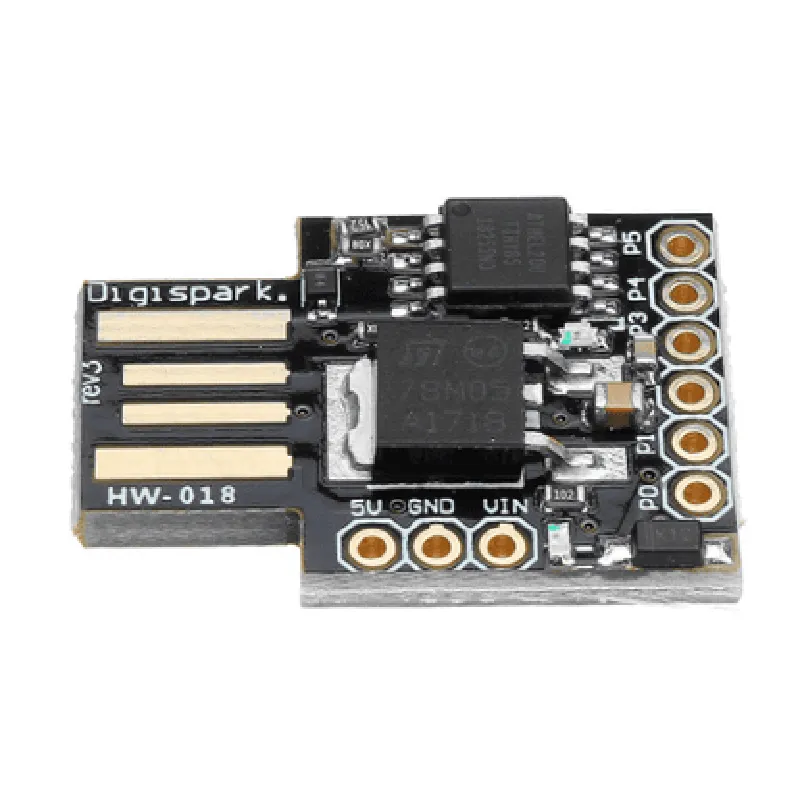

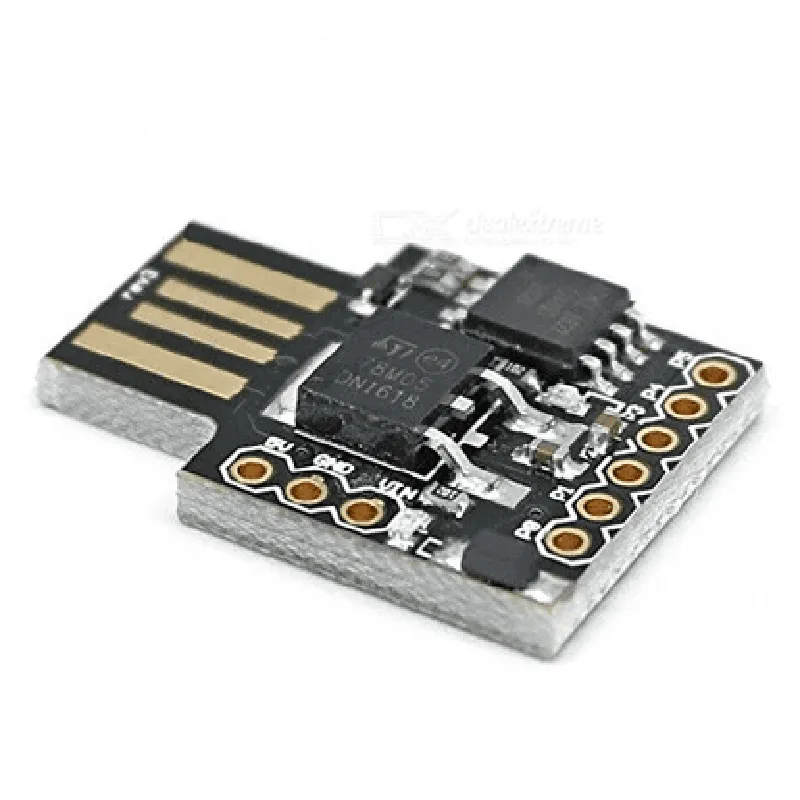

Description: 1. Microcontroller: The ATTiny85 USB Development Board is based on the Microchip ATTiny85 microcontroller, which offers 8-bit architecture and a small form factor with 23 I/O pins. 2. USB Interface: This development board comes with a built-in USB interface, enabling direct connection to a computer without needing additional programming interfaces or external power sources. 3. Versatile Inputs and Outputs: With the 23 available I/O pins, this board supports various applications such as sensor interfacing, motor control, and communication protocols like SPI, I²C, and UART. 4. Compact Size: Measuring at just 2.0 x 1.6 inches (5.1 x 4.1 cm), the ATTiny85 USB Development Board is an excellent choice for space-constrained projects. 5. Low Power Consumption: The microcontroller on this board offers low power consumption, making it suitable for battery-powered or portable applications. 6. Pre-programmed with 'Blink' Example: Upon arrival, the ATTiny85 USB Development Board comes pre-pro
| Specification | Details |
|---|---|
| Microcontroller | ATtiny85 (8-bit AVR) |
| Clock Speed | 16 MHz (internal oscillator or crystal) |
| Memory | 8 KB Flash 512 B SRAM 256 B EEPROM |
| Communication | USB (Full-speed) UART SPI I²C |
| Analog Features | 6 ch. 10-bit ADC 2 ch. PWM |
| Digital Features | 5V tolerant GPIOs Interrupts WDT |
| Power Supply | +3.3 V to +12 V (regulated) VCC pin |
| Dimensions | approximately 30x20 mm (1.18x0.79 in) |
| Operating Temp | -40°C to +85°C (industrial range) |
| Certifications | CE FCC UL RoHS |

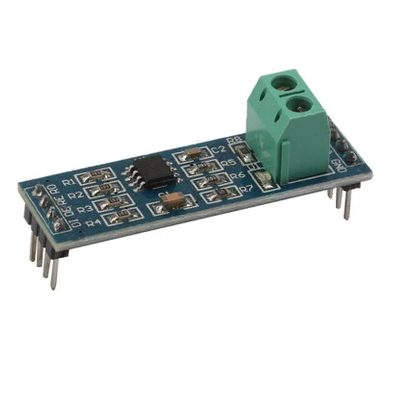

1. The Max485 RS-485 TTL Modu...
1. The Arduino Ethernet Shiel...
1. Arduino CNC Shield is an a...

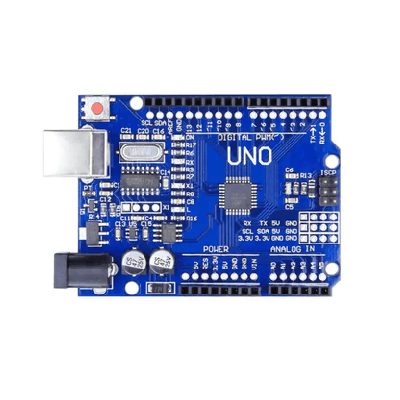

1. Introduction: ADIY UNO KIT...
