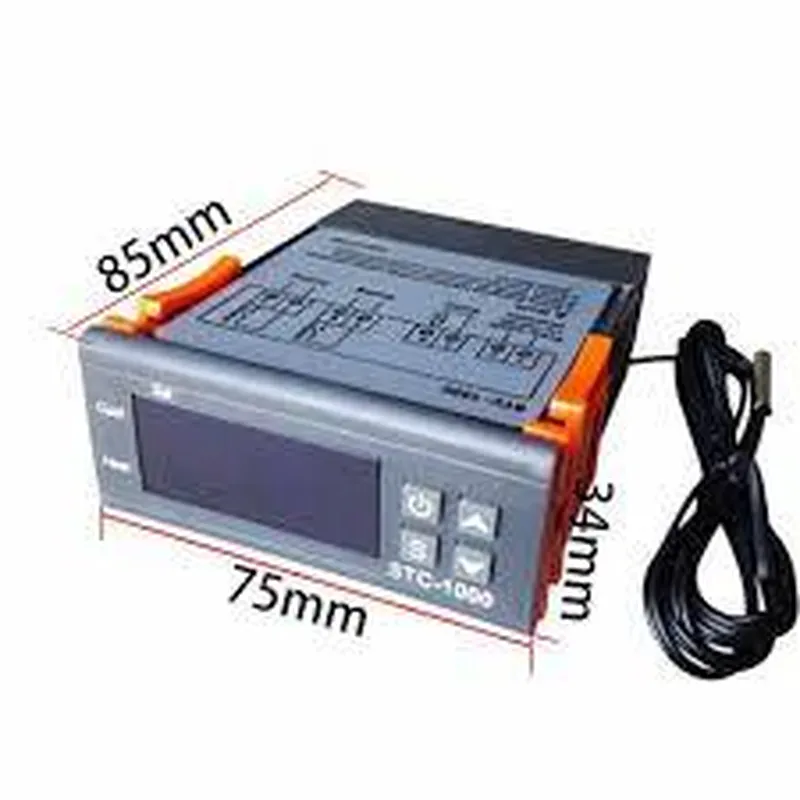

110V~ 220V AC All-Purpose Temperature Control Controller with Sensor 2 Relay Output Thermostat Stc-1

Stufin

110V~ 220V AC All-Purpose Temperature Control Controller with Sensor 2 Relay Output Thermostat Stc-1

This product is not available in your location yet

Description: 1. Power Range: The STC-1000 is a versatile temperature control controller designed for use with a wide range of power sources, including 110V~ and 220V AC power supplies. 2. Temperature Control: This thermostat features an adjustable temperature setting that allows users to maintain precise control over the environment being monitored and regulated. 3. Dual Relay Outputs: The controller includes two relay outputs, enabling users to connect multiple heating or cooling elements for independent control of different zones or systems. 4. Sensor Input: A built-in temperature sensor continuously measures the ambient temperature and reports back to the controller, ensuring accurate and responsive temperature regulation. 5. Hysteresis Function: The STC-1000 includes a hysteresis function that prevents excessive cycling between on and off states, reducing wear on heating or cooling elements and improving overall efficiency. 6. Easy Installation: With a simple wiring diagram and clear inst

View Technical Documentation

Specification	Details
Power Supply	110V~ 220V AC
Operating Voltage	90V ~ 260V AC
Temperature Range	-20°C to 120°C (Optional)
Sensor Accuracy	±1.5%
Relay Output	2 Channel SPDT 10A/250VAC
Thermostat Type	Digital Thermostat
Communication	None (Non-Programmable)
Output Signal	Dry Contact Normally Open
Display	LCD Display 4-Digit
Dimensions	120 x 120 x 40 mm
Weight	Approx. 350g
Operating Humidity	10% ~ 90% RH
Storage Temperature	-20°C to 80°C
Certification	CE FCC
