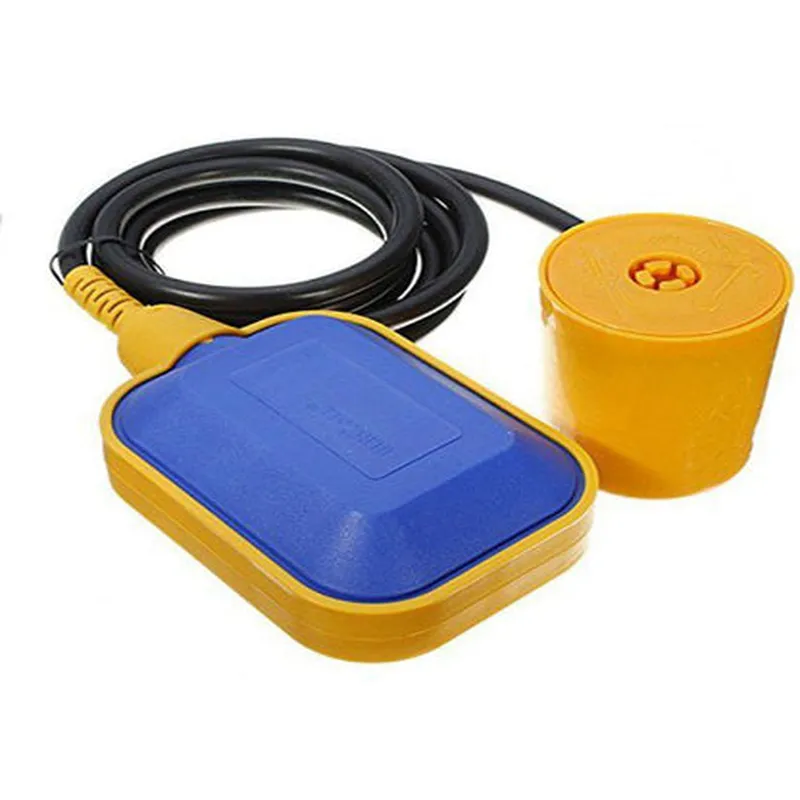

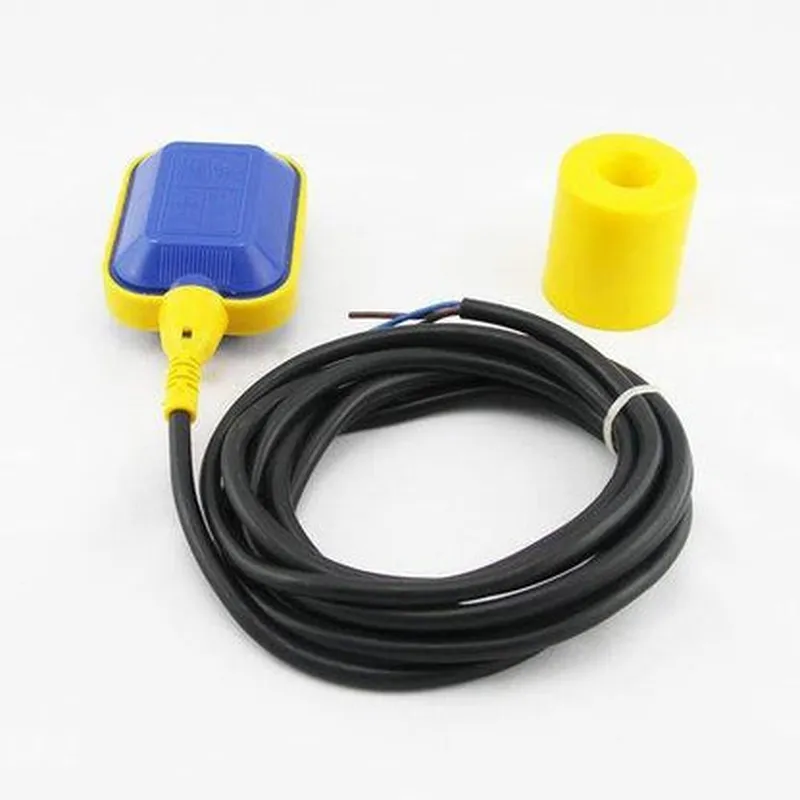

Float Switch Sensor For Water Level Controller With 2 Meter Wire

Stufin

Float Switch Sensor For Water Level Controller With 2 Meter Wire

This product is not available in your location yet

Description: 1. Float switch sensor is an essential IoT component designed for water level control in various applications like irrigation systems, industrial processes, or household appliances. 2. Construction: It consists of a float connected to two conductive contacts inside a sealed plastic housing. The float rises and falls with the water level changes. 3. Functionality: When the water level is below the sensor (float is not submerged), the switch remains open, and no electrical circuit is completed. Once the water level reaches the desired point, the float rises, closing the contacts, which completes the circuit. 4. Wire length: This model comes with a 2-meter long wire (5.9 ft) to provide flexibility in installation and placement of the sensor. 5. Operating Principle: The change in water level alters the buoyancy of the float, causing it to move up or down, which consequently closes or opens the electrical contacts within the sensor. 6. Versatility: Suitable for a wide range of applica

View Technical Documentation

Specification	Details
Sensor Type	Float Switch (Water Level Sensor)
Material	Waterproof corrosion-resistant
Operating Temperature	-20°C to 80°C (Storage: -40°C to 100°C)
Power Consumption	≤ 1mA (Typical)
Voltage Rating	DC 3.0V to 32.5V 50/60Hz AC
Wire Length	2 meters (4-wire connection: VCC GND Signal and Common)
Signal Output	NPN Open Collector
Switching Point Accuracy	±1% (Typical)
Hysteresis	0.5V to 2V (Adjustable by user)
Operating Life	≥ 100000 switch cycles
Dimension	35mm x 25mm x 15mm (Approximate)
Certification	CE RoHS compliant
