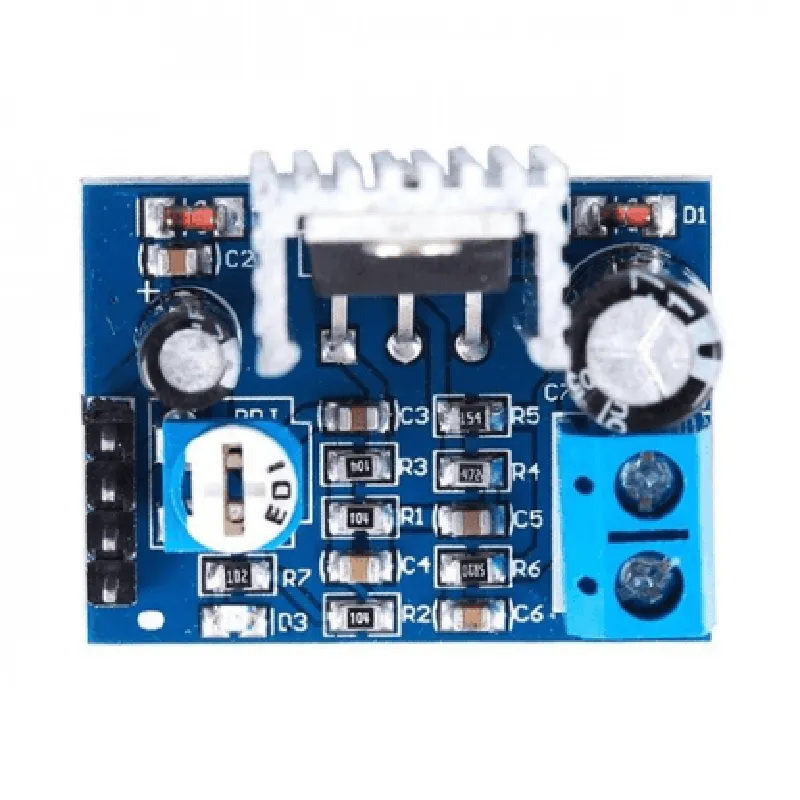

TDA 2030A Audio power Amplifier Module

This product is not available in your location yet

Description: 1. TDA 2030A is a mono audio power amplifier module, based on the Texas Instruments TDA2030A chipset. It delivers high-performance and efficient power output for speakers or other loads. 2. Power Output: This module can deliver up to 15W RMS at 8Ω or 26W PMPO (Peak Music Power Output) into 4Ω, making it suitable for various audio applications with modest power requirements. 3. Protection Circuit: The TDA 2030A comes equipped with essential protection circuits such as thermal shutdown, output short-circuit, and overload protection to ensure safe operation. 4. Frequency Response: With a frequency response of 10Hz to 50kHz (-3dB), this amplifier module offers excellent sound quality for music, speech, or other audio applications. 5. Input Sensitivity: The TDA 2030A module has low input sensitivity (<1.5Vrms) that can accommodate a wide range of audio sources without the need for external voltage amplification. 6. Efficiency and Heat Dissipation: This amplifier achieves high efficien

View Technical Documentation

Specification	Details
Model Number	TDA 2030A
Type	Audio Power Amplifier Module
Supply Voltage	±18V to ±24V (±20V typical)
Gain	High Gain (30 dB typ.)
Output Power	Up to 22W into 4 ohms 16W into 8 ohms
Frequency Response	1.5 Hz to 40 kHz (-3dB)
Distortion	Less than 0.2% (THD+N) at 10W
Noise Figure	Better than 80 dB
Input Sensitivity	200 mV for full output
Impedance Ratio	50/20 kΩ
Pin Configuration	See datasheet or product manual
Package Type	TO-220
