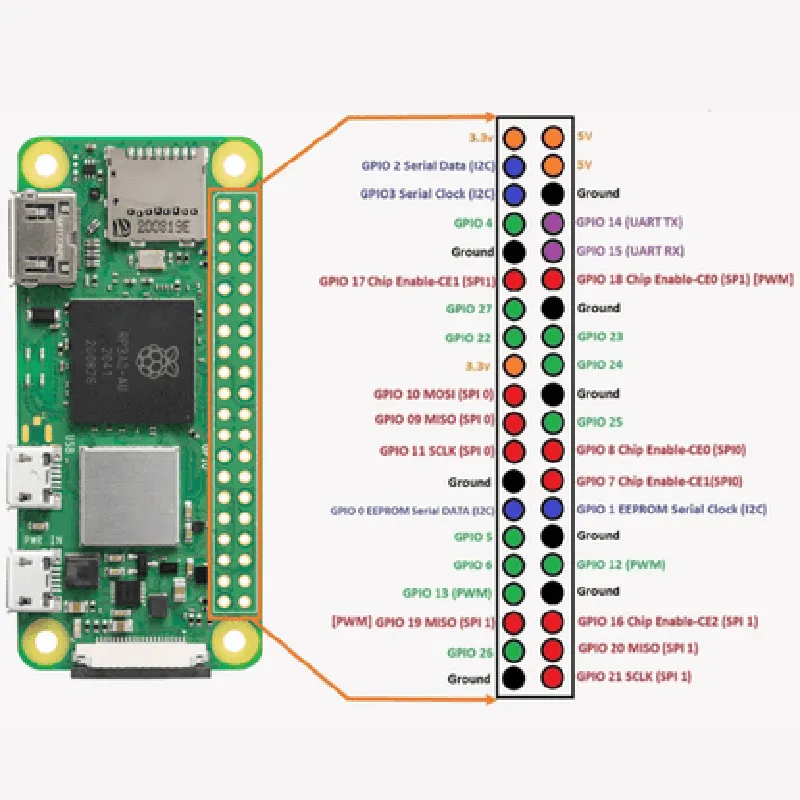

Description: 1. Size and Power Consumption: Raspberry Pi Zero 2 W is a compact, credit card-sized computer with dimensions of 65mm x 30mm. It consumes less power than its predecessor at just 10 watts, making it ideal for battery-powered projects. 2. Quad-core Processor: It boasts a new quad-core Cortex-A72 CPU clocked at 1 GHz, providing a significant performance boost over the Pi Zero. 3. WiFi and Bluetooth: The 'W' in Raspberry Pi Zero 2 W stands for WiFi and Bluetooth capabilities. It includes integrated 802.11n Wireless LAN and Bluetooth 5.0, eliminating the need for additional dongles. 4. USB-C Port: A USB-C port is included for power delivery, data transfer, and display output using compatible monitors (HDMI or MIPI DSI). This provides flexibility in connectivity options. 5. MicroSD Card Slot: The device features a single microSD card slot for storage expansion up to 64GB (microSDXC), which can be used to install the operating system and store project files. 6. 20-pin GPIO Header: With
| Specification | Details |
|---|---|
| CPU | Quad-core ARM Cortex-A53 @ 1.5 GHz |
| Memory | 512 MB LPDDR4 RAM |
| Storage | MicroSD card slot (no internal storage) |
| Networking | WiFi 802.11 b/g/n Bluetooth 5.0 |
| Connectivity | USB 1x micro-USB 1x USB OTG |
| Video | 4Kp30 video playback |
| Display | Mini-HDMI port (up to 1080p60) |
| Power Consumption | 2.5W (idle) 3.5W (load) |
| Operating System | Supports Raspbian Ubuntu and others |
| Dimensions | 65 mm x 30 mm x 5 mm |
| Weight | 25 grams |
