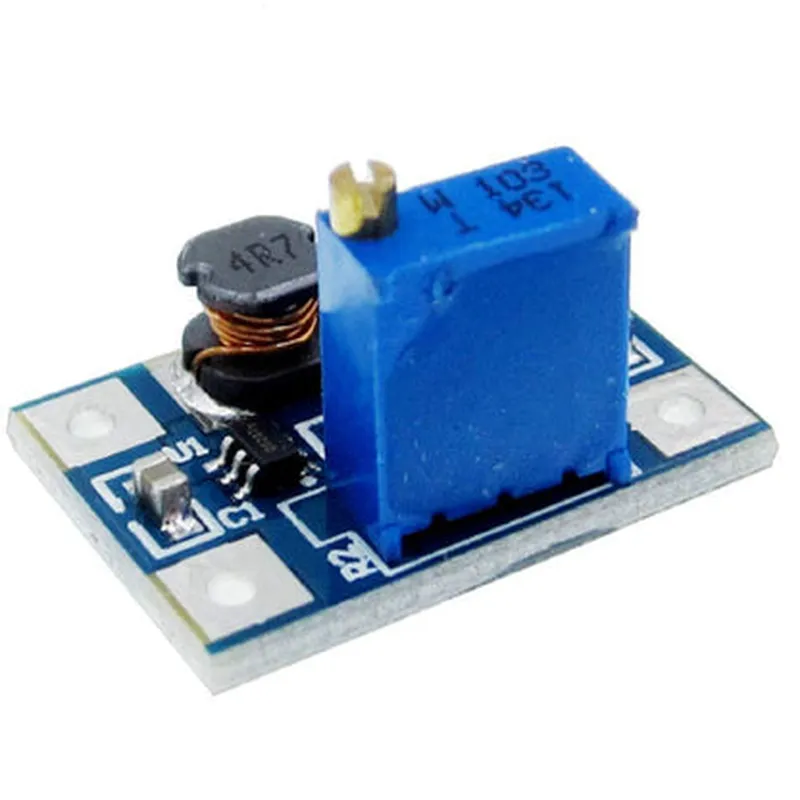

Description: 1. The DC-DC SX1308 is a step-up adjustable power module designed to convert and regulate lower input voltage levels into higher output voltages, suitable for various IoT projects and applications. 2. It features an adjustable output voltage range from 3V up to 18V, making it versatile in meeting the power requirements of diverse components and devices. 3. The module is designed with a constant current limitation function to protect connected loads from over-current situations, ensuring optimal performance and longevity. 4. Its compact size (30mm x 23mm) and low profile design make it suitable for space-constrained projects while maintaining high efficiency (up to 93%). 5. The SX1308 utilizes a buck-boost topology, which allows it to both step up or step down voltage levels based on the input conditions. 6. It provides short circuit protection and reverse polarity protection to safeguard against potential damage from external factors. 7. This adjustable power module features eas
| Specification | Details |
|---|---|
| Input Voltage | 2.5V to 36V |
| Output Voltage | Adjustable from 3.0V to 35V |
| Output Current | Up to 1A (dependent on input voltage) |
| Efficiency | Up to 95% |
| Switching Frequency | 450KHz |
| Voltage Regulation | ±2% |
| Line Regulation | ±0.5% |
| Load Regulation | ±1% |
| Temperature Range | -40°C to 85°C |
| Storage Temperature | -55°C to 125°C |
| Dimensions (mm) | 26.8 x 20.0 x 6.2 |
| Weight (g) | Approx. 15g |
