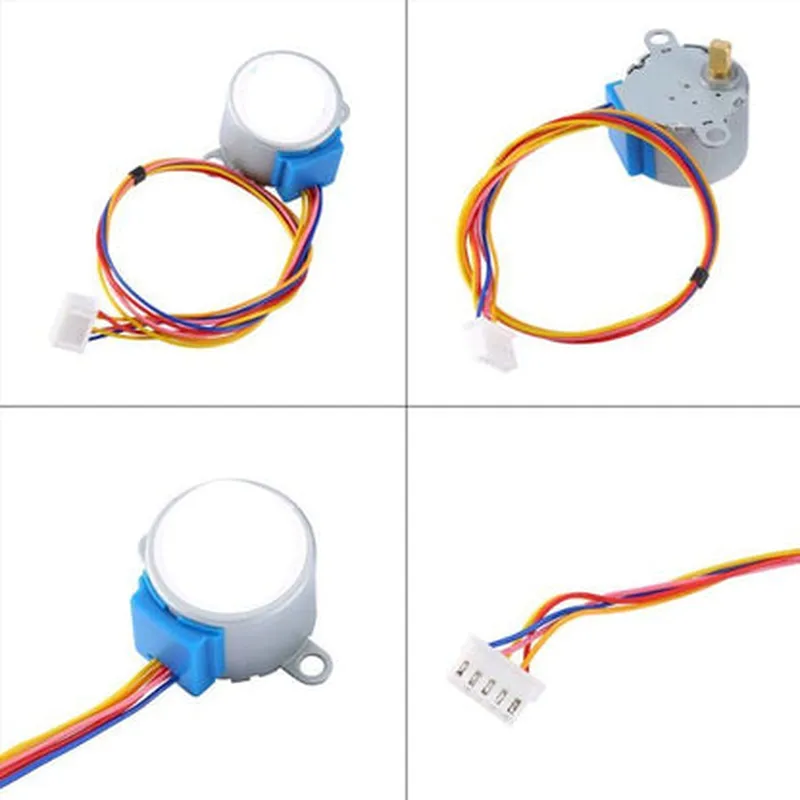

Description: 1. The 28BYJ-48 is a compact 5V DC stepper motor designed for various hobby projects and simple automated applications, featuring four wires for quad-phase control. 2. Size and Weight: With dimensions of approximately 37mm × 37mm × 16mm (L×W×H) and a weight of around 50g, this motor is suitable for space-constrained projects. 3. Performance: Offering 12 steps per revolution, the motor can provide precise positioning in various applications, making it ideal for projects involving accurate movement or rotation. 4. Electrical Specifications: The motor requires a maximum voltage of 5V and a current of up to 600mA during operation. It has an operating frequency range of 2Hz–30kHz, catering to various project requirements. 5. Drive Method: The 28BYJ-48 uses a ULN2003 driver or similar to control the motor's four quadrants. This driver can be connected directly with an Arduino board or other microcontrollers for easy integration. 6. Quiet Operation: Compared to larger stepper motors, th
| Specification | Details |
|---|---|
| Motor Type | Bipolar Stepper Motor |
| Step Angle | 360° (1.8° per step) |
| Voltage | 5V DC |
| Current | 150 mA (max) |
| Torque | 0.2 Nm (at 12 VDC no load) |
| Speed | 1.5 steps/second |
| Pole Count | 4 poles |
| Phase Resistance | 300Ω (approx.) |
| Inductance | 6 mH (approx.) |
| Operating Temperature | -20°C to +85°C |
| Dimensions | Φ34 mm x 17.8 mm (shaft length) |
