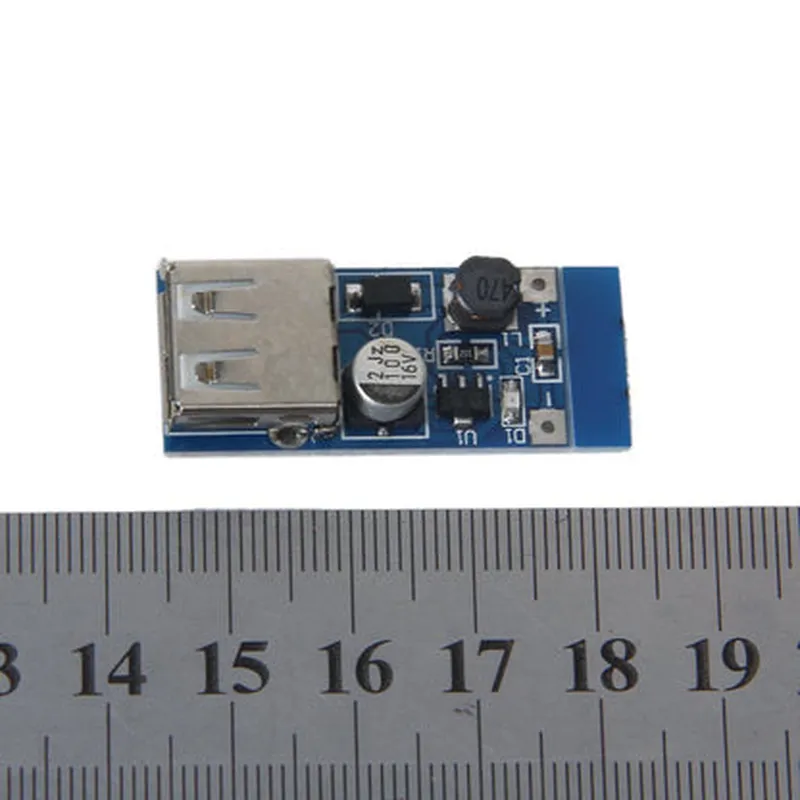

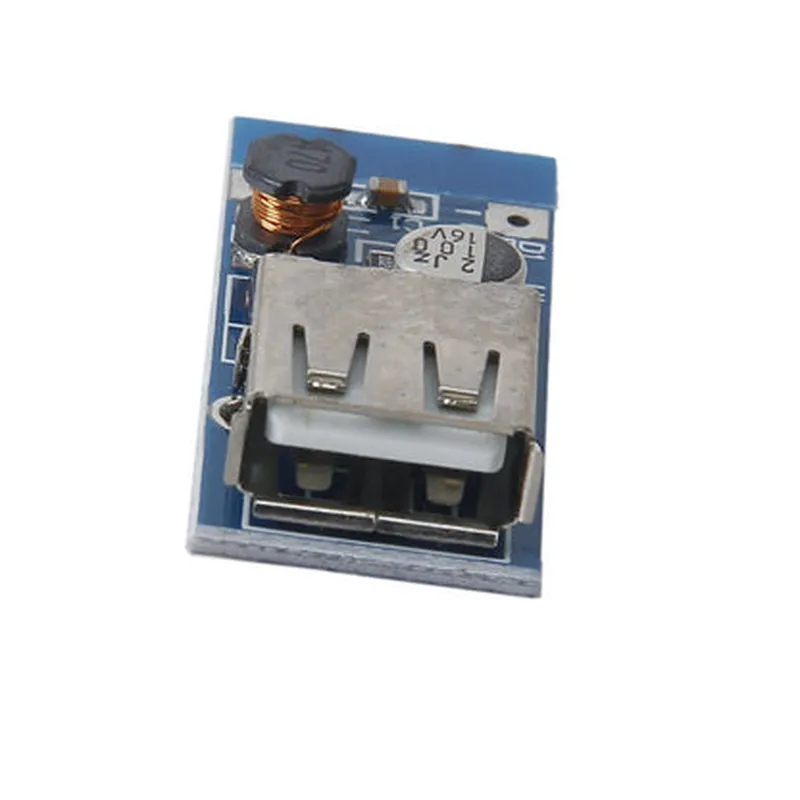

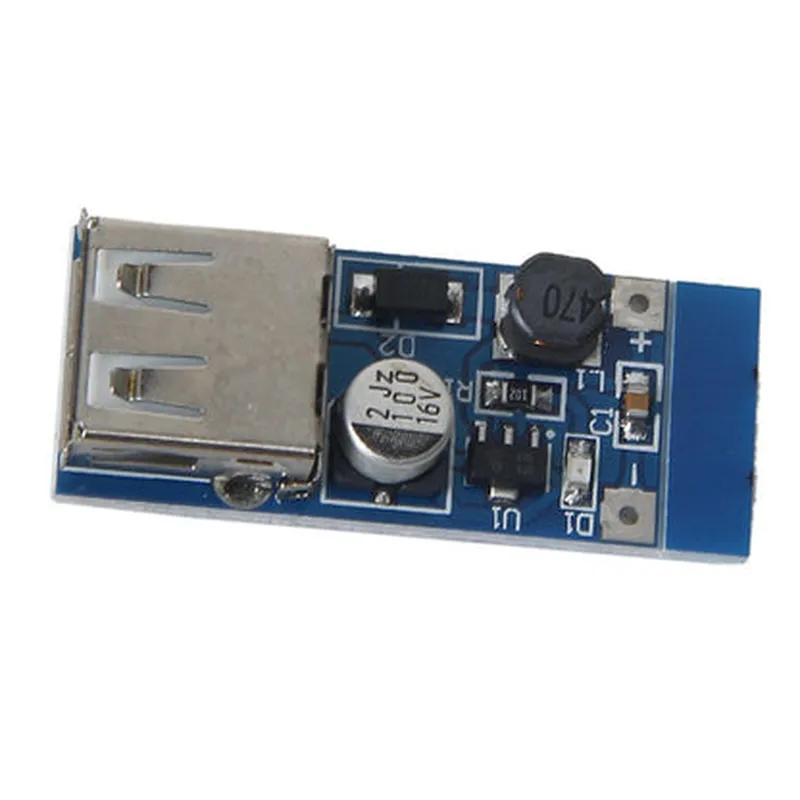

Description: 1. Power Input: This module is designed to boost input voltages ranging from 0.9V to 5V, converting them into a stable and efficient 5V output suitable for USB devices. 2. Versatile Input Source: The converter can be powered by various batteries (NiMH, NiCd, or Li-ion) or DC power adapters, making it an ideal solution for portable projects. 3. Efficient Power Management: The 0.9V-5V to 5V DC-DC USB Step Up Power Boost Converter Module offers efficient power management with a high conversion efficiency (up to 85%) and low quiescent current consumption (typically less than 10mA). 4. Overvoltage Protection: Built-in overvoltage protection ensures the output voltage remains within safe limits, preventing damage to connected devices or the converter itself. 5. Short Circuit Protection: The module includes short circuit protection that automatically shuts off power in case of a short circuit situation, safeguarding against potential damages and risks. 6. Compact Size: With dimensions a
| Specification | Details |
|---|---|
| Input Voltage Range | 0.9V - 5V (Boost Mode) |
| Input Current Limit | 1A (Typical) 2A Peak |
| Output Voltage | 5V DC |
| Output Current | Up to 800mA |
| Efficiency | >80% (Typical) |
| Switching Frequency | 600 KHz |
| Conversion Ratio | Adjustable (1:1 2:1 3:1 etc.) |
| Protection Features | Over Voltage Protection (OVP) Short Circuit Protection (SCP) |
| Size and Weight | 25.5 x 20mm 10g |
| PCB Material | High-quality FR4 with gold plating |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +150°C |
