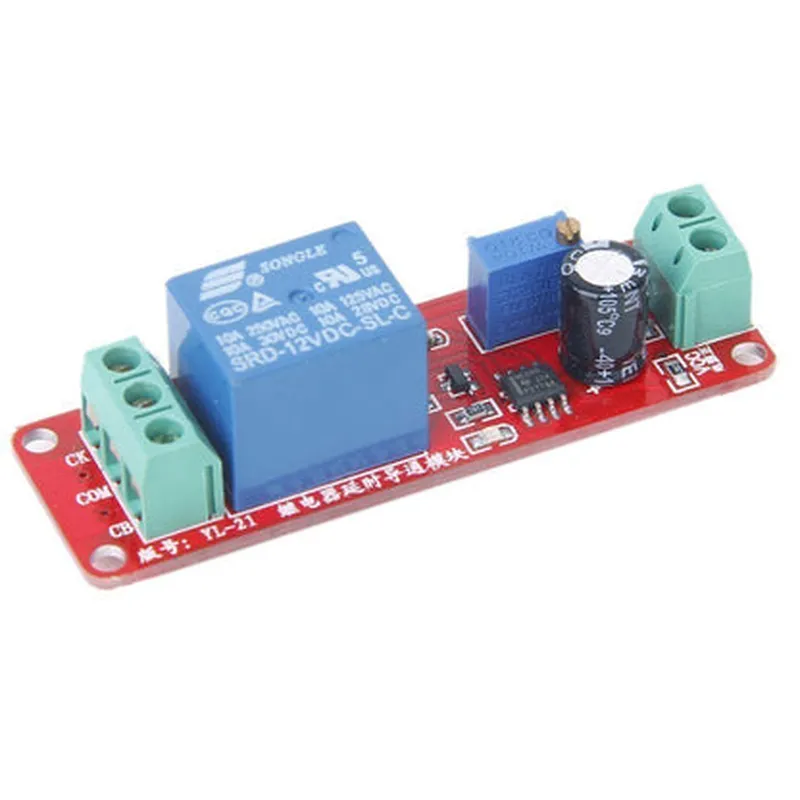

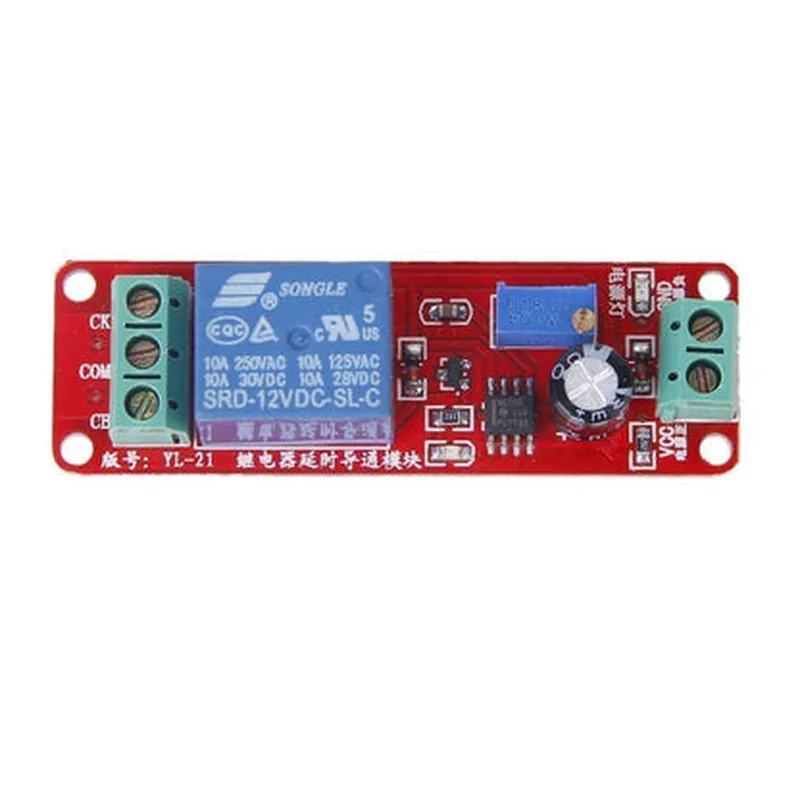

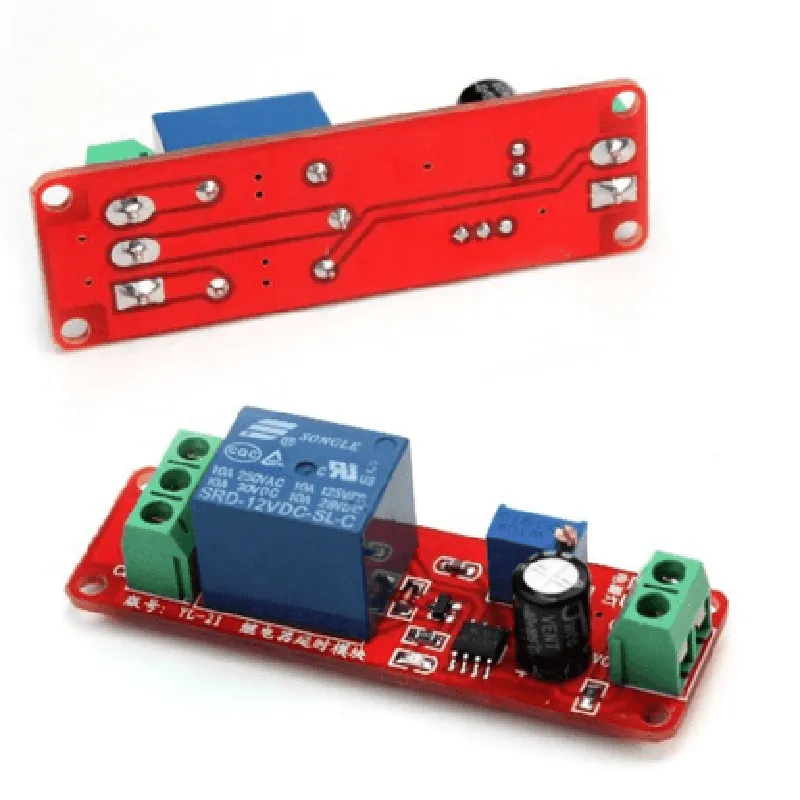

Time Delay Relay Module (0-10 seconds)

This product is not available in your location yet

Description: 1. The Time Delay Relay Module is an electronic device designed to control an electrical load with a programmable time delay before the relay closes or opens. It comes in various versions, including those with a delay range of 0-10 seconds. 2. Features: Key features include adjustable delay time using external components (usually capacitors), normally open and normally closed contacts, and compatibility with low voltage DC power supplies (6V to 35V). 3. Functionality: This module can be used as a timer or switch controlled by a signal or manual input, which activates the relay after a specified time interval. It's useful in applications like lighting control, watering systems, and industrial automation. 4. Programmability: The delay period is typically set using an external component such as a capacitor, allowing users to customize the module for their specific application requirements. 5. Durability: Constructed with high-quality materials, these modules offer robust performance

View Technical Documentation

Specification	Details
Product Name	Time Delay Relay Module
Functionality	Delays output signal by 0-10 seconds
Relay Type	Electromechanical SPDT (1 Form A)
Operating Voltage	5V DC (with internal voltage regulator)
Current Rating	10A (Resistive) 8A (Inductive)
Power Consumption	120mA @ 5V
Time Delay Range	Adjustable 0-10 seconds
Resolution	1 second
Connectivity	Screw terminals for input/output signals
Mounting Options	PCB mountable or standalone
Dimension (LxWxH)	44 x 30 x 15 mm
Weight	35g
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +70°C
Certifications	UL CE RoHS compliant
