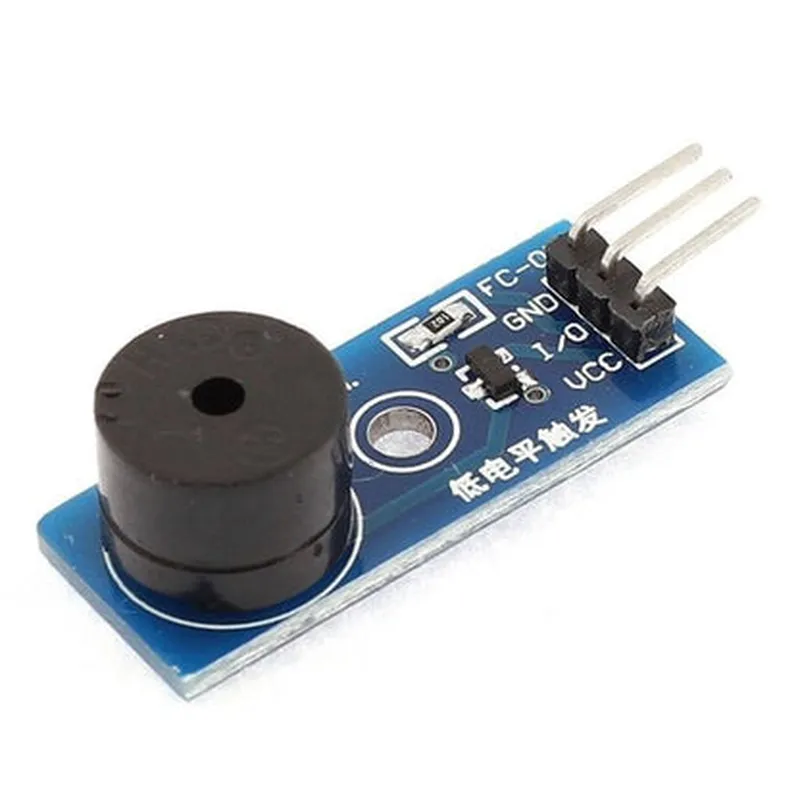

Passive Buzzer Module

This product is not available in your location yet

Description: 1. A Passive Buzzer Module is an electronic component that generates sound or vibration through an integrated buzzer when activated by an external signal. 2. Features: It comes in a compact size, typically with dimensions of around 35mm x 20mm x 8mm. The module requires no external power source; it derives power directly from the controlling circuit. 3. Operation: This buzzer module functions passively through an inductor-capacitor (LC) resonant circuit, which amplifies the activation signal and triggers the buzzer. 4. Integration: The Passive Buzzer Module is easy to integrate into various projects, such as security systems, alarms, or automation projects. Simply connect it between two voltage levels in a digital circuit for operation. 5. Flexible Usage: Due to its passive nature, the buzzer module can operate on both AC and DC power supplies. It is compatible with microcontrollers like Arduino, Raspberry Pi, or other similar platforms. 6. Multiple Connections: The module has mu

View Technical Documentation

Specification	Details
Type	Passive Buzzer
Functionality	Generates sound when an electric current flows through it (no external power source needed)
Operating Voltage	3.0V to 12V DC
Current Consumption	Typically around 1-5mA
Frequency Range	Around 2 kHz to 4 kHz
Sensitivity	High sensitivity suitable for short distances or low power signals
Durability	Durable and resistant to environmental factors (e.g. humidity temperature)
Size	Typically around 1-3 inches in length and 0.5-1 inch in width
Weight	Usually lightweight (around 10-50 grams)
Power Source	Powered by the circuit's power supply (no battery required)
Mounting Options	Can be surface-mounted or soldered onto a PCB
