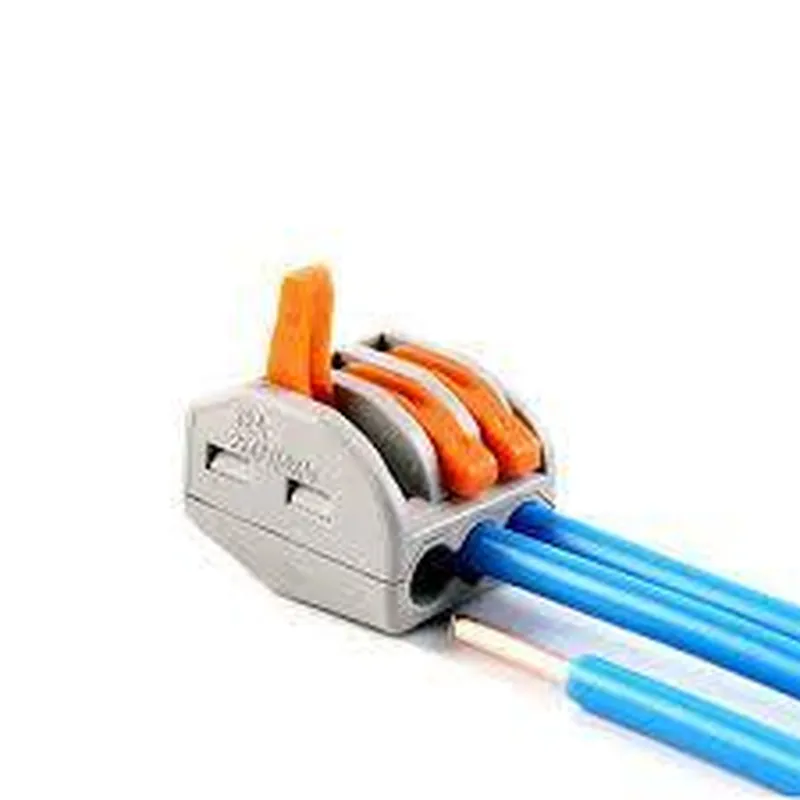

3 Pin Push in Conductor

This product is not available in your location yet

Description: 1. A 3-pin push-in conductor is a type of electrical connector that allows easy and secure connection of conductors in electrical systems, featuring three pins arranged in a straight line. 2. Design: Its design includes three terminals, each with a spring-loaded push-in mechanism for secure contact when the conductor is pushed into place. This design ensures a reliable and quick connection without the need for tools or screws. 3. Versatility: These connectors are widely used in various IoT applications such as lighting systems, sensors, control panels, and power distribution due to their simplicity and ease of use. They can accommodate different conductor sizes within their specified range. 4. Safety: The push-in mechanism creates a positive lock between the conductor and terminal, eliminating the risk of loose connections that may cause electrical hazards or failures. It also provides excellent conductivity and reduces resistance for improved performance. 5. Space Saving: With a

View Technical Documentation

Specification	Details
Terminal Type	3 Pin (Three-terminal)
Conductor Material	Copper or Brass
Wire Gauge	AWG 24-10 (0.51 mm - 2.588 mm)
Insulation Material	PVC Teflon or Silicone
Operating Temperature	Ranges from -40°C to 105°C (-40°F to 221°F)
Current Rating	Up to 10 Amps (depending on wire gauge)
Voltage Rating	Up to 250V AC/DC (dependent on wire gauge)
Insertion Life	Over 5000 cycles (for typical use cases)
Material Compliance	Meets RoHS REACH and UL standards
