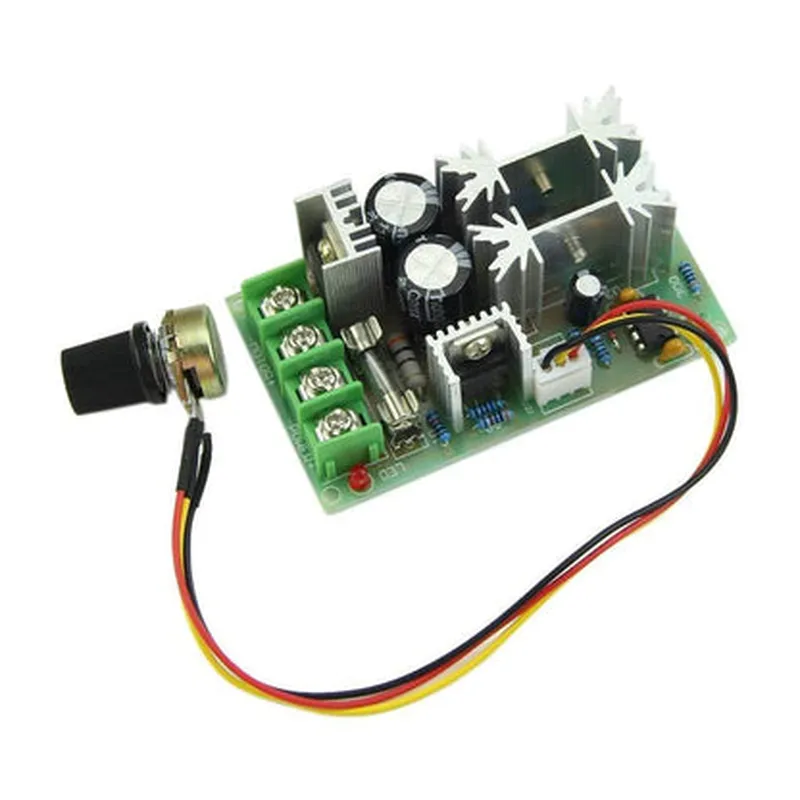

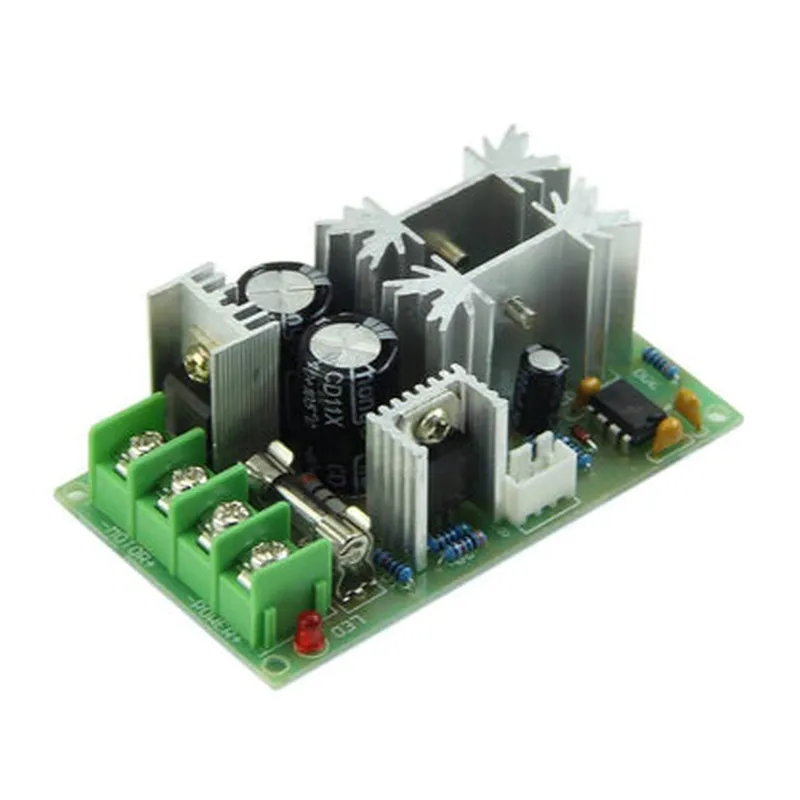

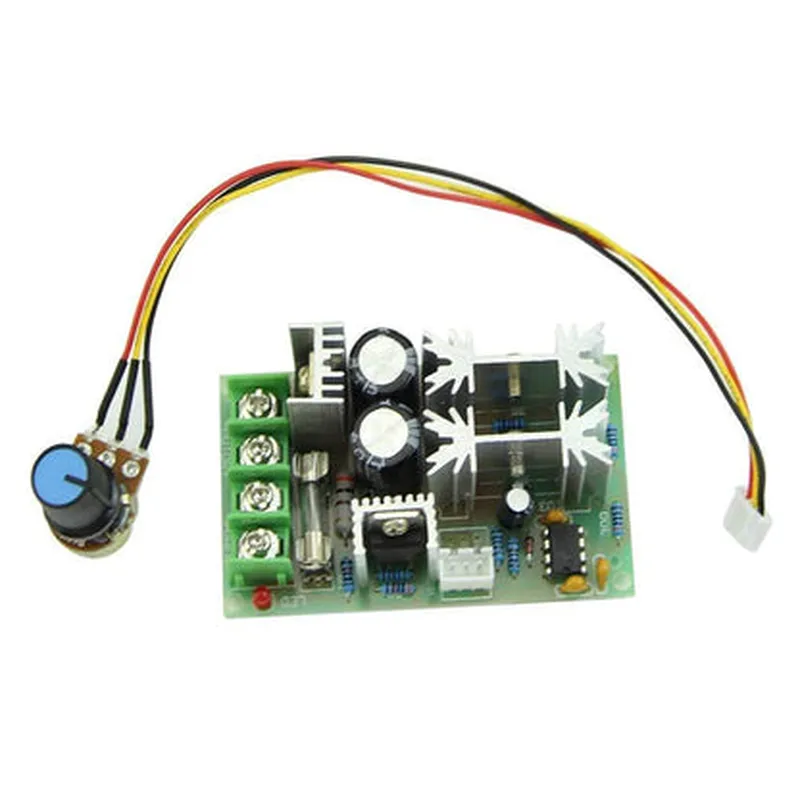

Description: 1. Powerful Motor Controller: This 1200W PWM Motor Speed Controller is designed to effectively manage the power output to electric motors in various IoT applications, providing precision control over motor speed. 2. PWM Technology: Utilizing Pulse Width Modulation (PWM) technology, this controller offers smooth and efficient adjustment of motor speed within a wide range, ensuring optimal performance for different use cases. 3. User-friendly Control: Equipped with a potentiometer, the controller allows manual, intuitive control of motor speed through simple rotation, enabling quick and easy modifications to suit various IoT project requirements. 4. Protection Features: This device includes important protection functions such as overcurrent, overvoltage, and overheat prevention, safeguarding connected motors and overall system performance against potential damages caused by power surges or malfunctions. 5. Wide Compatibility: Suitable for DC motors with voltages ranging from 12V to
| Specification | Details |
|---|---|
| Input Voltage | 12V to 24V DC |
| Output Power | 1200W (max) 1000W (continuous) |
| Control Method | PWM (Pulse Width Modulation) |
| Speed Control | Analog potentiometer (10kΩ linear) |
| Operating Frequency | Up to 20 kHz |
| Current Range | 0-30A (max) 0-20A (continuous) |
| Resolution | 256 steps |
| Dimming Ratio | 10% - 100% |
| Overheat Protection | Yes automatic shutdown at 80°C |
| Cooling Method | Heat sink and fan for efficient cooling |
| Connectivity | Terminal block connections (e.g. M6x1) |
