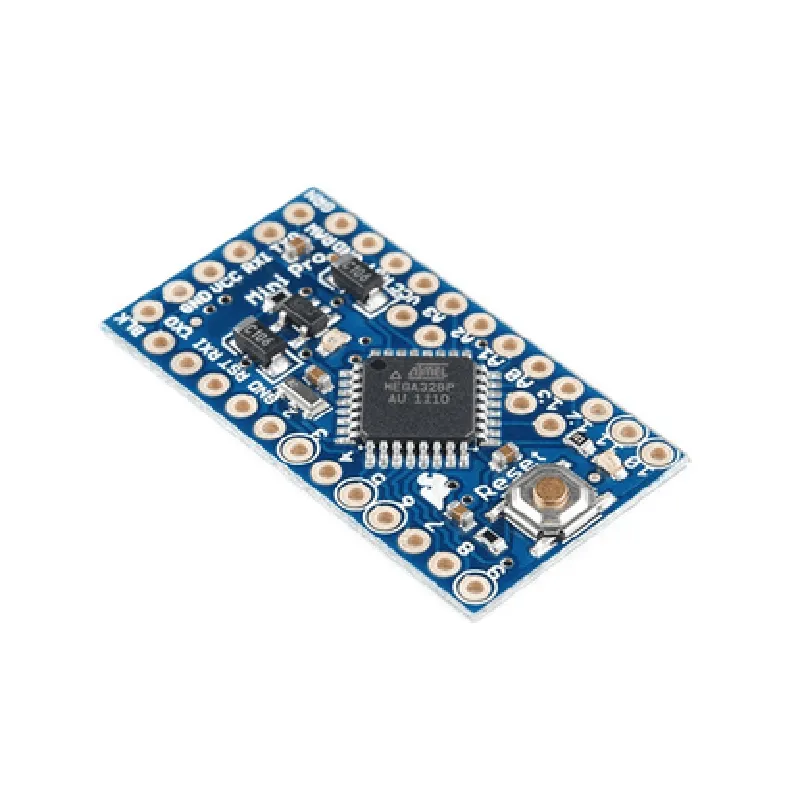

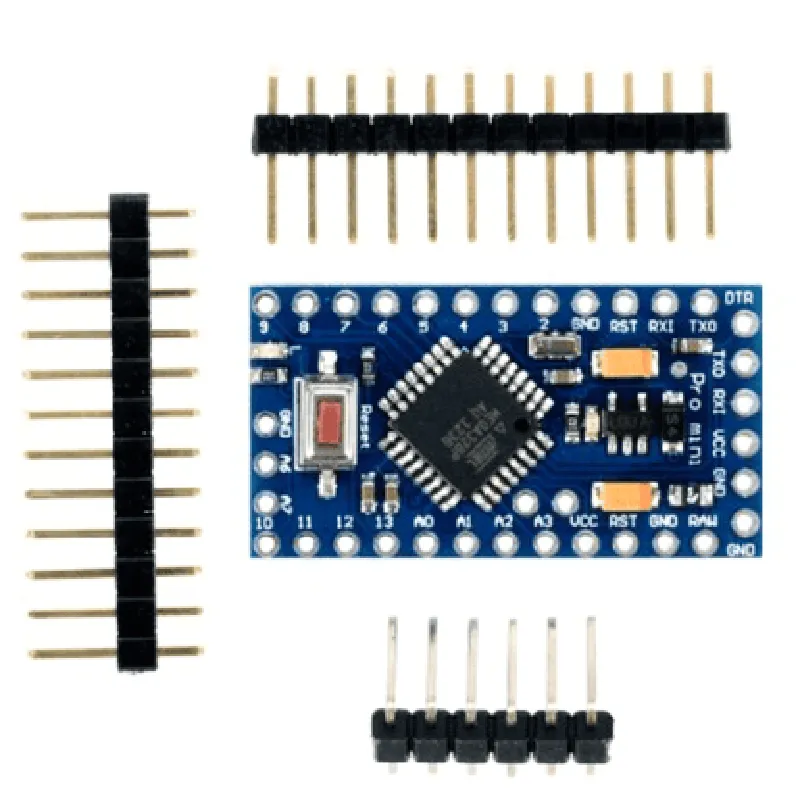

Description: 1. Microcontroller Board: Arduino Pro Mini is a compact microcontroller board based on the ATMEGA328P chipset, making it Arduino-compatible with the popular Pro Mini form factor. 2. Size and Power: Measuring at just 21mm x 16mm, this board offers a miniaturized solution for space-constrained projects while maintaining full Arduino functionality. It can be powered through an external DC jack (5V) or via the USB connection. 3. Onboard LEDs: This board includes an onboard Power LED, an INTx LED that indicates digital input activity, and a user-configurable RGB LED for customizable status indicators. 4. Memory & Connectivity: Arduino Pro Mini comes with 16MB of flash memory to store code and data. It features a USB interface capable of emulating a keyboard or mouse to interact with computers without the need for additional shields. 5. Input/Output Pins: The board is equipped with 20 I/O pins (of which 7 can be used as PWM outputs), 6 analog inputs, an ICSP header, and an A4 and A5 pin
| Specification | Details |
|---|---|
| Microcontroller | ATmega328P |
| Operating Voltage | 5V |
| Operating Frequency | 16 MHz |
| Flash Memory | 32 KB (of which 4 KB is used for boot loader) |
| SRAM | 2 KB |
| EEPROM | 1 KB |
| GPIO Pins | 14 (6 analog input 8 digital I/O) |
| Analog Resolution | 10-bit |
| Communication | UART SPI I2C |
| Reset Circuitry | Power-on Reset and Brown-out Detect |
| Form Factor | Small (32.1 x 18.5 mm) |
1. Microcontroller: Arduino U...
1. Microcontroller: Arduino U...
1. Microcontroller: Arduino U...
1. The ATmega328 is a microco...

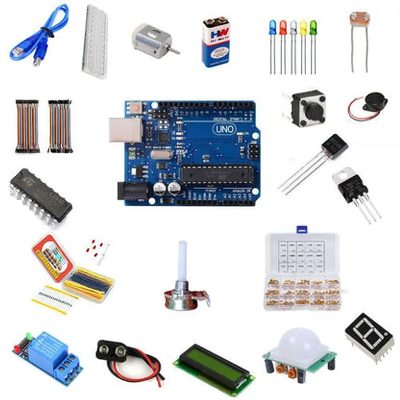

1. Arduino UNO R3 Board: A mi...

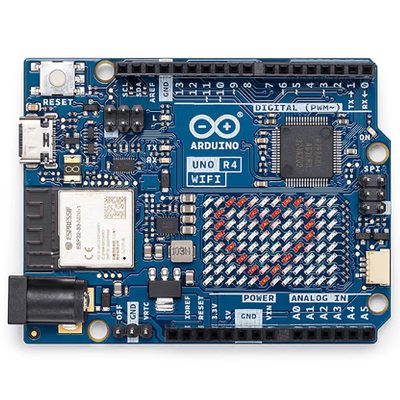

1. Microcontroller: The Origi...
