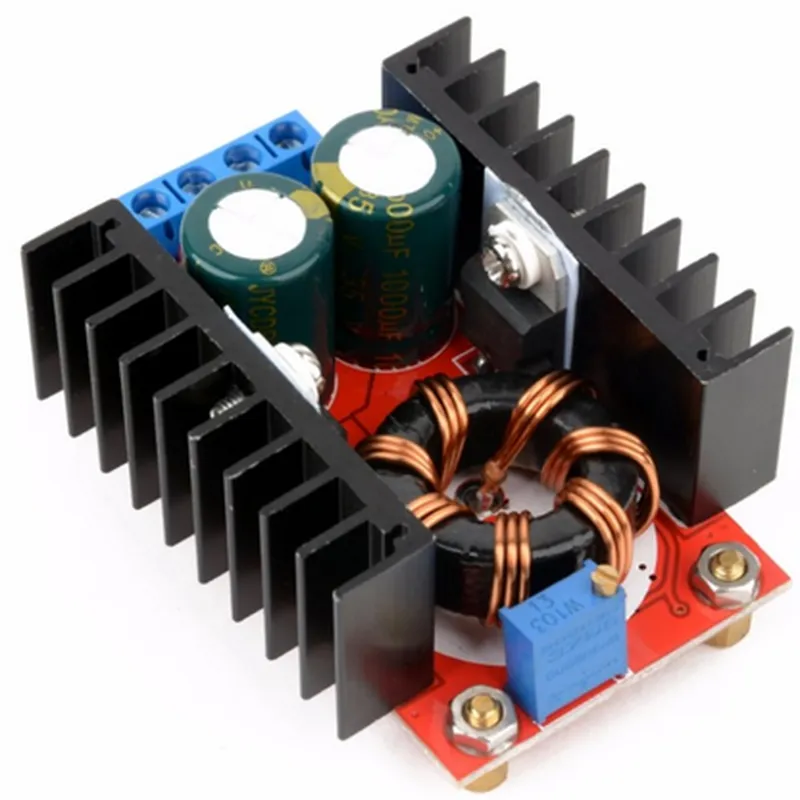

Description: 1. Power Capacity: This 150W DC-DC boost converter is designed to step up input voltage and deliver a regulated output power suitable for various IoT applications. 2. Versatile Input Range: The converter can accept a wide range of input voltages from 8V to 65V DC, making it compatible with various power sources in IoT systems. 3. Adjustable Output Voltage: It features an adjustable output voltage, providing flexibility to set the required output voltage level for different components and applications within an IoT system. 4. High Efficiency: The converter boasts high efficiency of up to 95%, which helps reduce power losses and save energy consumption in IoT systems. 5. Overload Protection: The power converter includes built-in overload protection that automatically shuts down the output when the current limit is exceeded, preventing damage to connected components. 6. Short Circuit Protection: The converter features short circuit protection that safeguards the device against poten
| Specification | Details |
|---|---|
| Input Voltage Range | 4.5V - 40V (input voltage adjustable) |
| Output Power | Up to 150W |
| Output Current | Adjustable from 2A - 15A |
| Output Voltage | Adjustable ±1% accuracy |
| Adjustment Range | 5-45V (adjustable via potentiometer) |
| Efficiency | Up to 92% |
| Switching Frequency | Fixed at 400KHz (internal oscillator) |
| Input Filter | EMI/RFI filtering for reduced noise |
| Over-Temperature Protection | Automatic shut-off above 80°C |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +150°C |
| Size (L x W x H) | 76.2 x 50.8 x 22.9 mm |
| Weight | Approximately 230 grams |
| Connectors | Dual DC input and output connectors |
