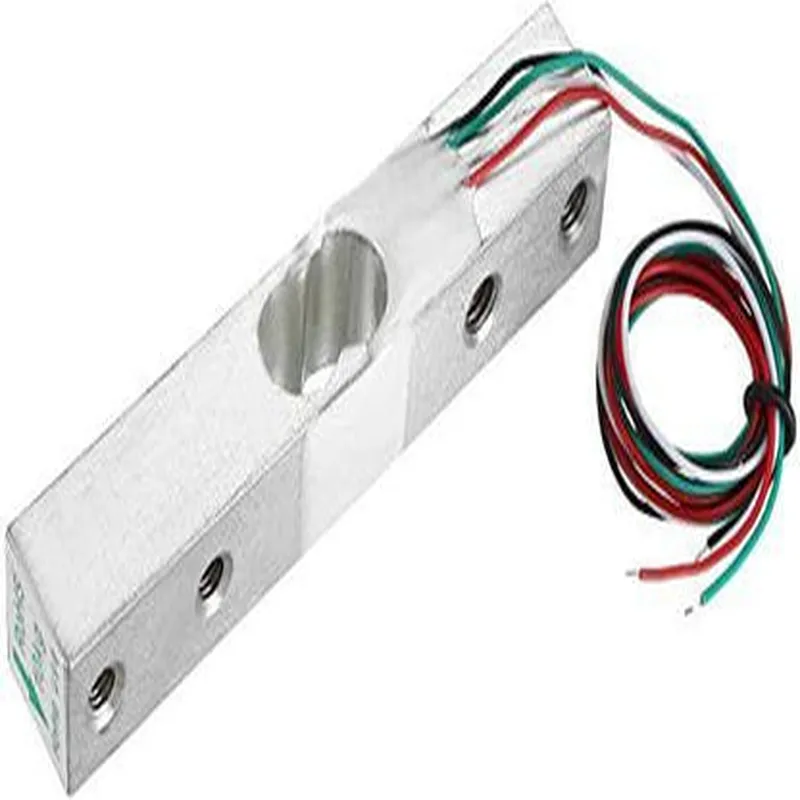

Description: 1. A 10kg Load Cell is an electronic pressure transducer designed to measure and convert the force or pressure applied into an equivalent electrical signal, suitable for measuring up to 10 kg loads. 2. Construction: It features a rugged, compact, and weatherproof design with a stainless steel housing, making it ideal for industrial applications, harsh environments, and outdoor usage. 3. Accuracy and Precision: The load cell boasts high accuracy (±0.5%) and precision to ensure reliable and precise weight measurement for various applications within the 10kg capacity. 4. Output Signals: It can produce analog signals such as voltage, current, or resistance, depending on the selected configuration, while digital outputs like strain gauge bus, RS-232, RS-485, and USB are also available for better compatibility with various data acquisition systems. 5. Linearity and Hysteresis: The load cell demonstrates good linearity and low hysteresis to minimize measurement errors and ensure accurate
| Specification | Details |
|---|---|
| Weight Range | 0 - 10 kg ±1% accuracy |
| Measurement Units | kg N lbs oz |
| Output Type | Analog (4-20mA) or Digital (RS485) |
| Output Resolution | 1mg (analog) 8-bit digital (0-255) |
| Power Consumption | 3.5W (max) 2.5V 10mA |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Protection Class | IP65 (dust and water resistant) |
| Dimensions | 80mm x 60mm x 30mm (3.1" x 2.4" x 1.2") |
| Materials | Stainless Steel Aluminum |
| Certifications | CE RoHS FCC |
