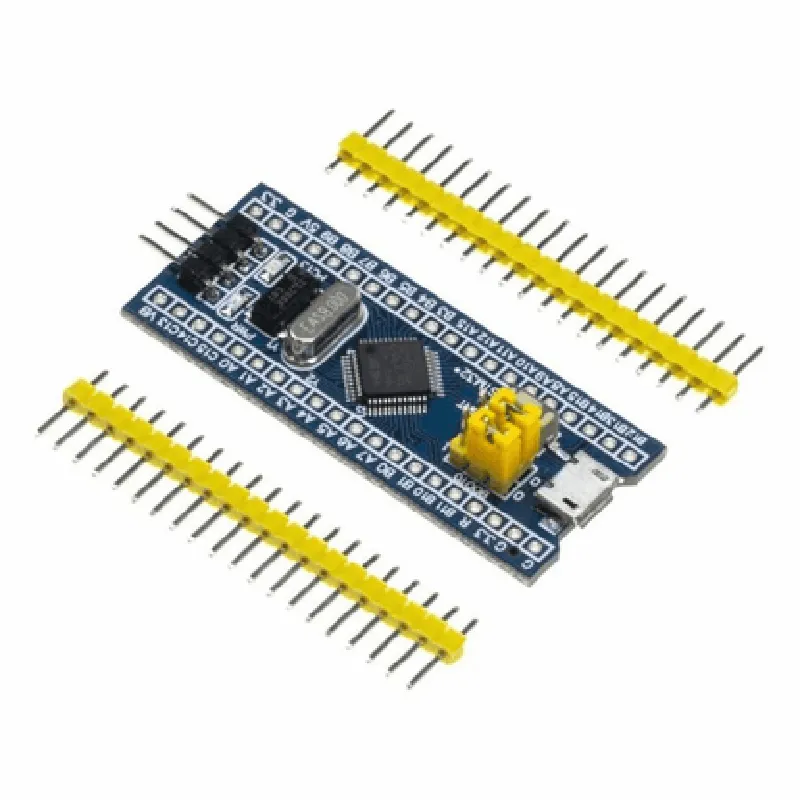

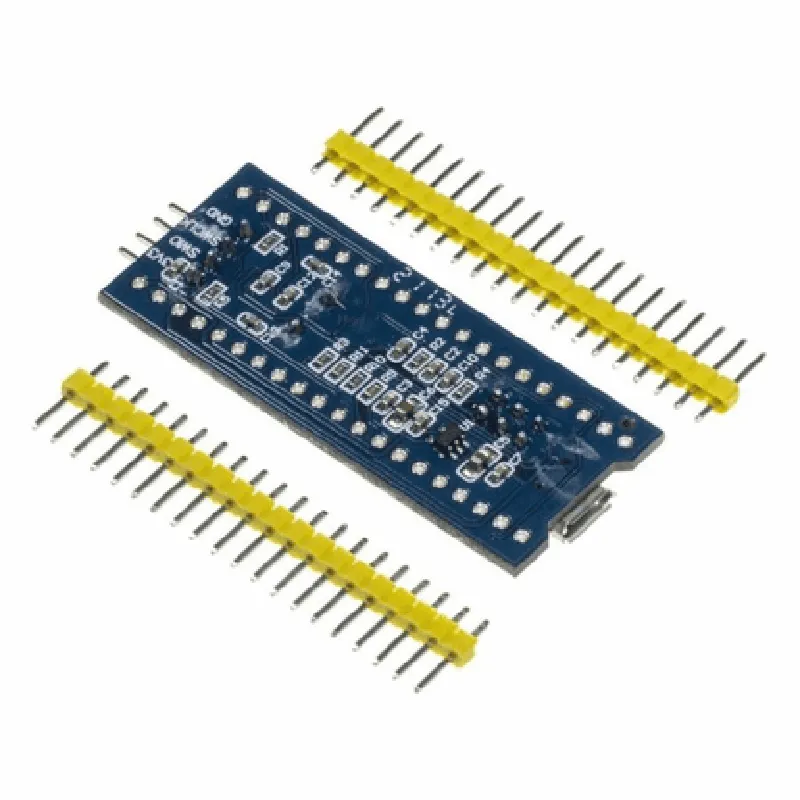

STM32F103C6T6A Board

This product is not available in your location yet

Description: 1. The STM32F103C6T6A Board is a microcontroller development board based on the STM32F103 microcontroller, featuring an Arm Cortex-M3 processor running at 72 MHz. 2. It includes 256 KB Flash memory and 64 KB SRAM for program storage and data handling respectively. This makes it suitable for developing complex IoT applications with real-time requirements. 3. The board features a rich set of I/O interfaces, including 12 analog inputs, 15 digital input/output pins, 2 timers, 2 SPI interfaces, 2 I²C interfaces, and a CAN bus interface. 4. Its built-in USB 2.0 Full Speed OTG (On-The-Go) interface allows for easy connection to PCs or other devices for programming, debugging, and data transfer. Additionally, the board provides an Ethernet MAC interface via the RMII (RGMII) mode. 5. Security is enhanced by a 128-bit AES encryption engine, secure boot feature, and a true random number generator to protect IoT applications from unauthorized access. 6. The board also offers various communic

View Technical Documentation

Specification	Details
Microcontroller	STM32F103CB microcontroller ARM Cortex-M3
CPU Clock	72 MHz (up to 168 MHz with PLL)
Flash Memory	128 KB flash memory 20 KB SRAM
Peripherals	UART SPI I2C USB OTG FS ADC DAC PWM
Timers	16-bit timer 32 kHz crystal oscillator
Communication	USB OTG FS (Full Speed) SWD JTAG
Power Supply	3.3 V 5 V tolerant I/O pins
Operating Temperature	-40°C to 125°C
Package	LQFP64 package
Dimensions	17 x 14 mm
