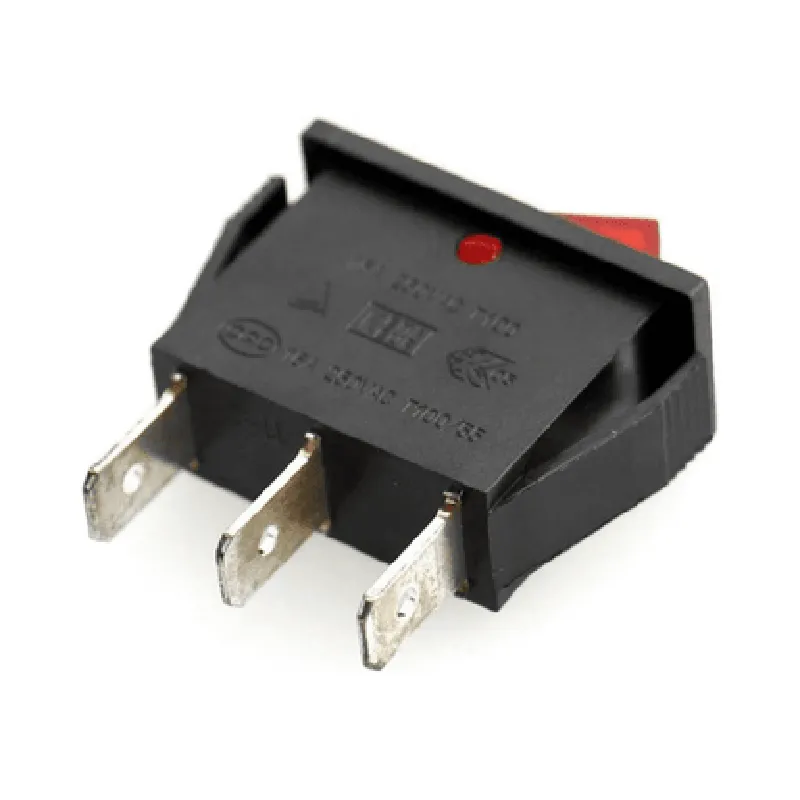

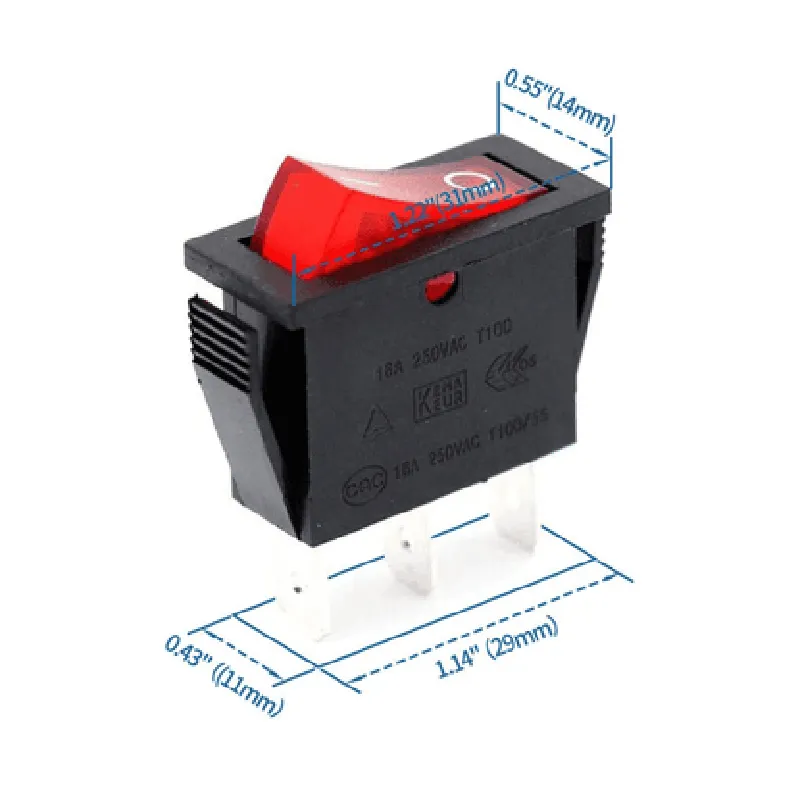

Description: 1. This Rocker Switch is a 16A, 250V Single Pole Double Throw (SPDT) component with three pins and a red LED indicator. 2. Functionality: It functions as an on-off switch for electrical circuits, with the addition of an illuminated status indicator. The SPDT design allows the switch to control two separate circuits. 3. Features: - 16A current rating capable of handling heavy loads. - Voltage compatibility up to 250V ensures safe operation in various applications. - Three-pin configuration (NO, COM, NC) for easy wiring and versatile usage. - Red LED indicator for visual confirmation of switch status. 4. Uses: Common applications include controlling heating systems, pumps, or lights where a simple on/off switch is necessary, with the added benefit of a clear visual indicator. 5. Installation: The Rocker Switch can be easily installed between two circuits (NO and COM) with the LED connected to the NC terminal for normal operation. 6. Safety Considerations: Proper insulat
| Specification | Details |
|---|---|
| Current Rating | 16 A |
| Voltage Rating | 250 V AC (alternating current) |
| Polarity | Single Pole Double Throw (SPDT) |
| Number of Pins | 3 pins |
| Indicator Color | Red LED |
| Switch Type | Rocker switch |
| Actuation Time | N/A (contact closure is instant) |
| Material | Plastic and metal |
| Mounting Options | Through-hole or PCB mount |
| Operating Temperature | -40°C to +85°C |
