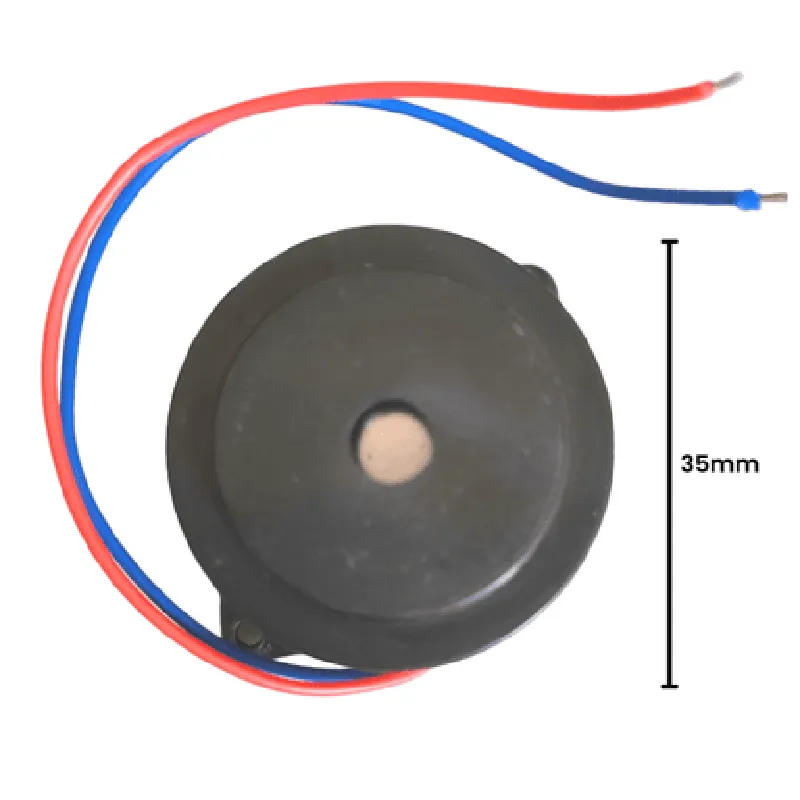

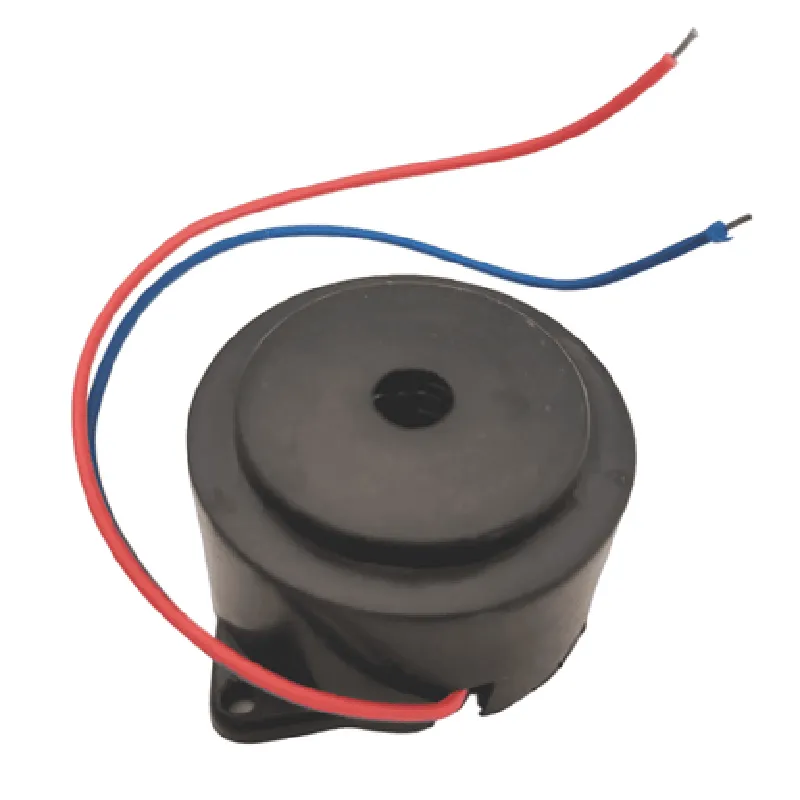

AC/230V - 35mm 230V AC Continuous Buzzer

Stufin

AC/230V - 35mm 230V AC Continuous Buzzer

This product is not available in your location yet

Description: 1. An AC/230V - 35mm continuous buzzer is an electromechanical component designed to produce audible alert tones when energized with alternating current. 2. Voltage Compatibility: This buzzer operates on a standard power line voltage of 230V AC, making it suitable for various industrial and home automation applications. 3. Size: Measuring at 35mm in diameter, the buzzer offers a compact form factor that can be easily integrated into most projects, including those with space constraints. 4. Continuous Operation: Unlike intermittent buzzers, this continuous buzzer generates sound continuously while energized, making it ideal for applications that require prolonged audible alerts. 5. Versatile Applications: The AC/230V - 35mm buzzer can be used in various industries such as security systems, industrial equipment monitoring, home automation, and more to provide warning signals or indicate the status of a system. 6. Robust Design: Featuring a rugged construction, this buzzer is capabl

View Technical Documentation

Specification	Details
Power Rating	230V AC 50Hz
Voltage Tolerance	±10%
Current Consumption	5mA (Typical)
Frequency Response	30-8000 Hz
Sound Pressure Level	80 dB @ 1m
Buzzer Type	Piezoelectric
Mounting Hole Size	M3 x 35mm
Material	Plastic
Operating Temperature	-20°C to +40°C
Storage Temperature	-30°C to +50°C
Dimensions (L x W x H)	35mm x 22mm x 6mm
Weight	10g
