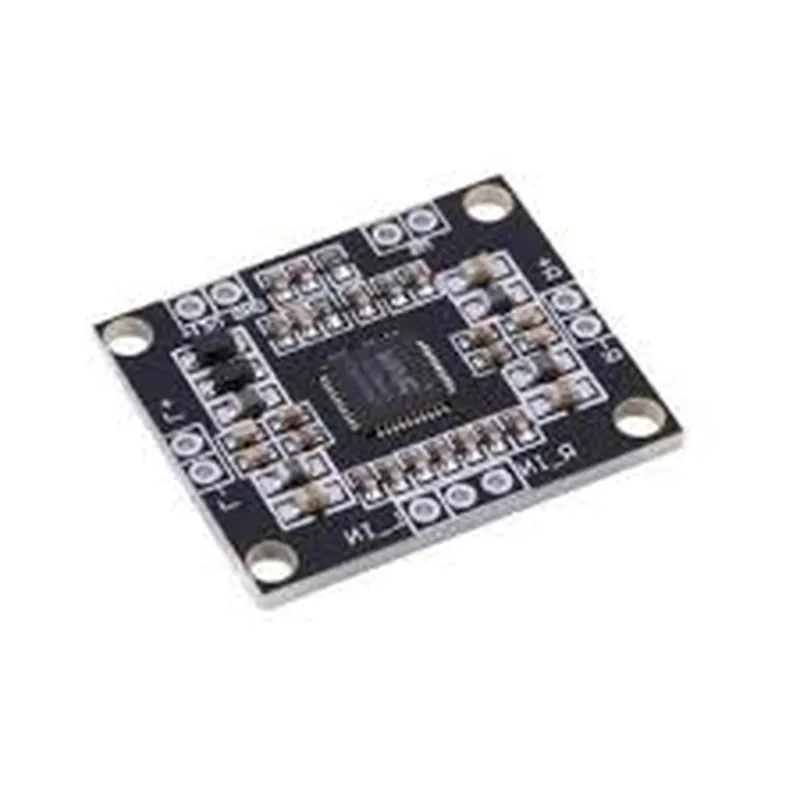

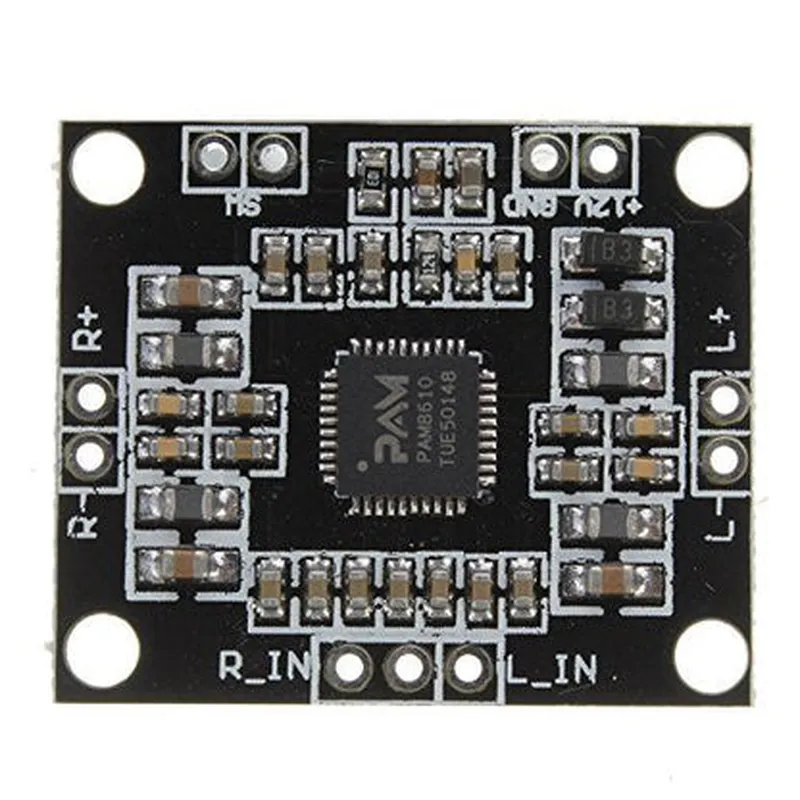

PAM8610 Digital Amplifier Board

This product is not available in your location yet

Description: 1. PAM8610 is a compact, high-performance digital amplifier board designed for various IoT projects and applications requiring amplification of audio signals. 2. Features: Equipped with the Texas Instruments TAS5720M Class D mono power amplifier IC, it delivers up to 1 Watt of output power at 8 ohms and 2.3 Watts at 4 ohms. The board supports line-in input and comes with a volume control potentiometer for adjusting the output level. 3. Compatibility: The PAM8610 digital amplifier is compatible with Arduino, Raspberry Pi, and other microcontroller-based IoT projects. It requires an external power supply (5V) to operate. 4. Efficiency: As a Class D amplifier, the PAM8610 provides high efficiency, reducing heat dissipation, and offering longer battery life for portable applications. 5. Versatility: With its compact design and minimal component count, this amplifier board is suitable for various audio projects such as IoT-enabled speakers, sound systems, and home automation setups. 6

View Technical Documentation

Specification	Details
Chipset	PAM8610 1-channel stereo amplifier
Supply Voltage	5V ±10% (recommended)
Power Rating	Up to 8W (4Ω) 6W (6Ω) 2.7W (16Ω)
THD+N	<0.1% @ 1kHz 8W output
SNR	>80dB @ 1kHz 8W output
Frequency Response	20Hz to 22kHz
Input Impedance	High impedance (programmable)
Output Connectors	RCA or TOSLINK optional
Dimensions	100 x 80mm (4 x 3.2 inches)
Weight	Approximately 60g
Operating Temperature	-20°C to +50°C (operating) -40°C to +70°C (storage)
