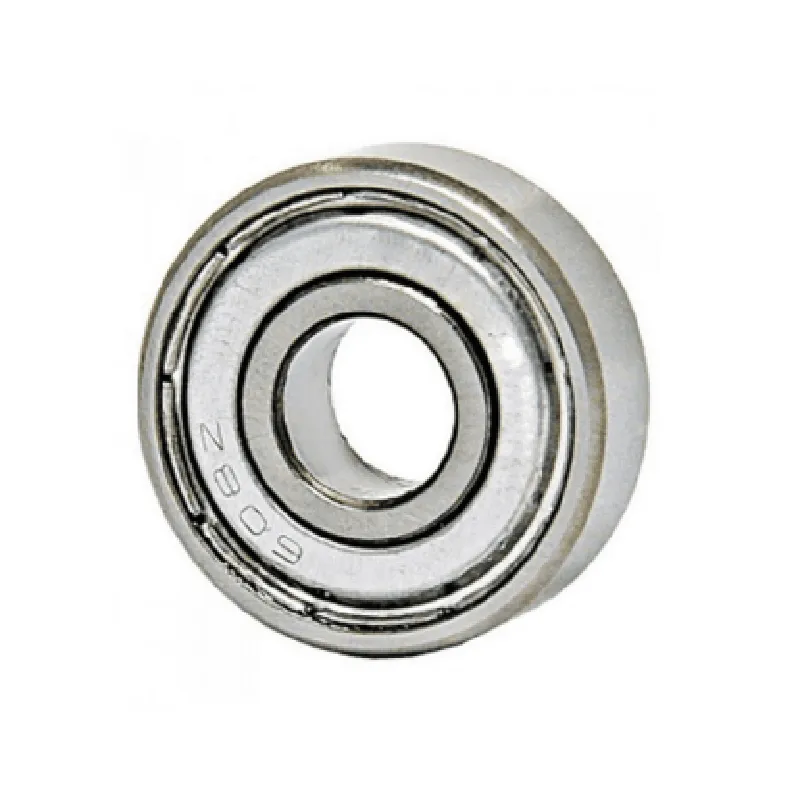

Description: Radial Ball Bearing 608ZZ is a precision engineered component designed specifically for use in 3D printing applications. It features high load capacity, able to support up to 45 lbs (20kg) of axial and radial force, making it suitable for heavy-duty printing projects. The bearing has a diameter of approximately 1 inch (26mm), and the width is 0.37 inches (9.4mm). It comes with an integrated steel shield on both sides, providing effective protection against contaminants. The 608ZZ ball bearing boasts exceptional smoothness and low friction due to its high-quality stainless steel balls and robust design, ensuring accurate and consistent movements for the print bed or other moving parts. Its unique seal system ensures that grease remains contained within the bearing during operation, preventing potential leaks and minimizing maintenance requirements. The ball bearing comes with pre-lubricated grease to ensure optimal performance from day one, reducing downtime and simplifying

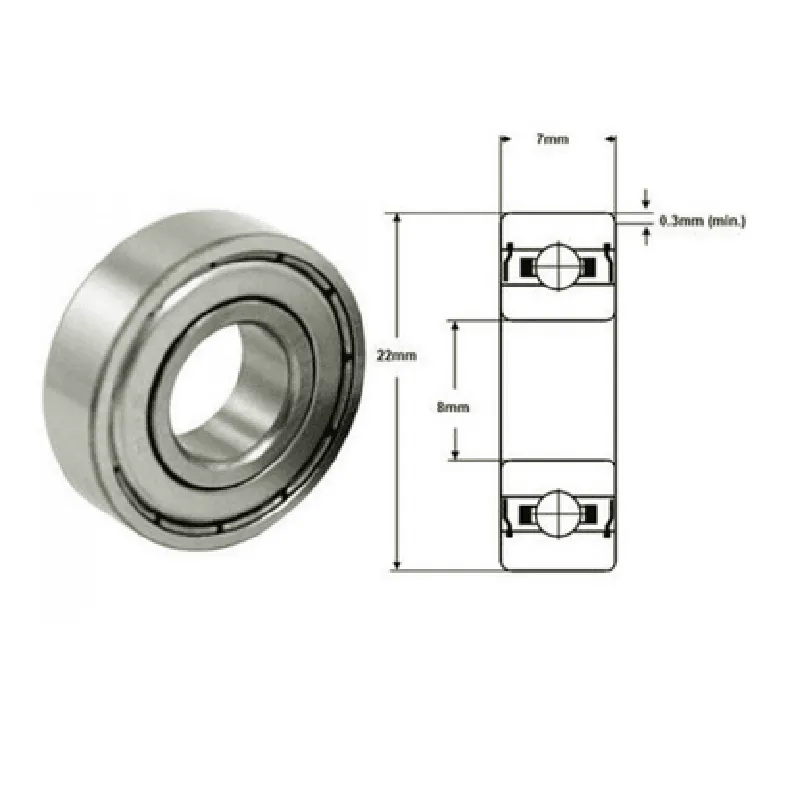

| Specification | Details |
|---|---|
| Bearing Type | Radial Ball Bearing |
| Number of Row | Single Row |
| Bore Size (Inner Dia) | 8 mm |
| Outer Diameter | 22 mm |
| Width | 7 mm |
| Material | Stainless Steel |
| Load Capacity | Radial: 9.5 kgf Axial: 4.5 kgf |
| Operating Temperature | -20°C to 120°C |
| Speed Limit | 3000 rpm |
| Clearance | C3 (Less than 0.003 mm) |
| Shield Type | Two-Zone Shield |
| Lubrication | Pre-lubricated with Grease |
