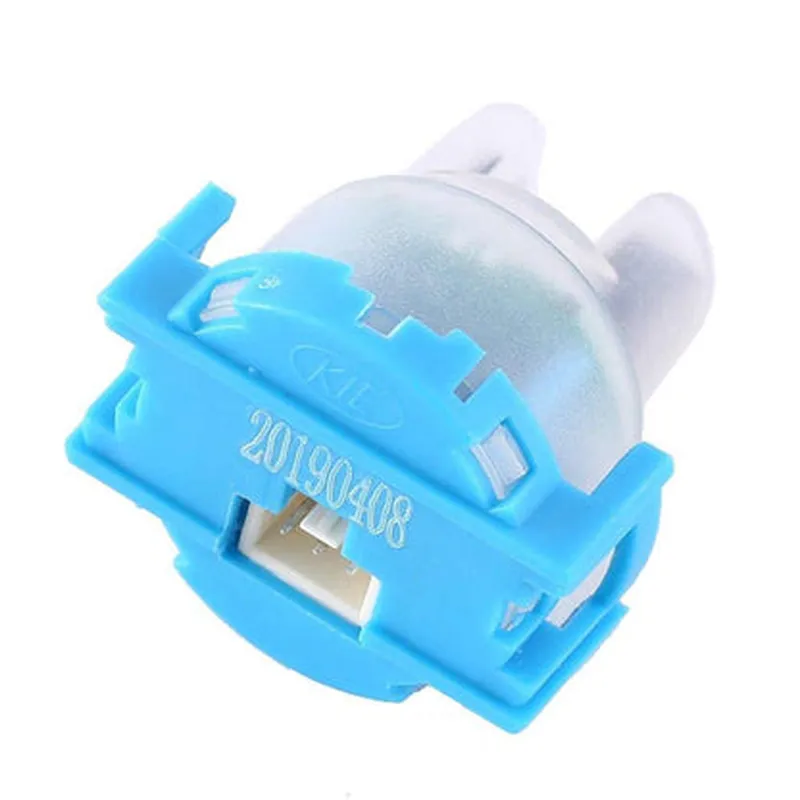

Turbidity Sensor With Module for Liquid Particle Detection

Stufin

Turbidity Sensor With Module for Liquid Particle Detection

This product is not available in your location yet

Description: 1. Turbidity Sensor with Module is an IoT component designed for detecting liquid particle levels in water or other liquids, providing real-time data on turbidity levels. 2. Components: The kit includes a high-precision turbidity sensor, a microcontroller module (e.g., Arduino), and necessary wiring components to connect the sensor to the microcontroller. 3. Sensor Functionality: The turbidity sensor employs a light scattering method to measure the particle concentration in liquids by detecting changes in light transmission through the sample. 4. Modular Design: The modular design allows users to easily integrate the sensor with various IoT platforms, enabling real-time data monitoring and control applications. 5. Data Output: This sensor can output data through analog voltage or digital serial communication (e.g., I2C or UART), offering flexibility for users depending on their project requirements. 6. Applications: Applications include water quality monitoring, industrial proces

View Technical Documentation

Specification	Details
Sensor Type	Nephelometric Turbidity Meter
Measurement Range	0-4000 NTU (Nephelometric Turbidity Units)
Accuracy	±2% of measured value
Resolution	0.1 NTU
Temperature Range	0-50°C (32-122°F) with accuracy deviation up to 5% at extreme temperatures
Humidity Range	20-80% relative humidity
Power Consumption	4.2V 1mA (module only)
Communication Protocol	UART (TTL level) baud rate selectable: 9600/19200/38400 bps
Sensor Response Time	<10s for 90% of the steady-state value
Module Dimensions	32mm x 22.5mm x 9.3mm
Weight	30g
Operating Voltage	4.2V (recommended) 3.6-6V (operational range)
Storage Temperature	-40°C to 85°C
