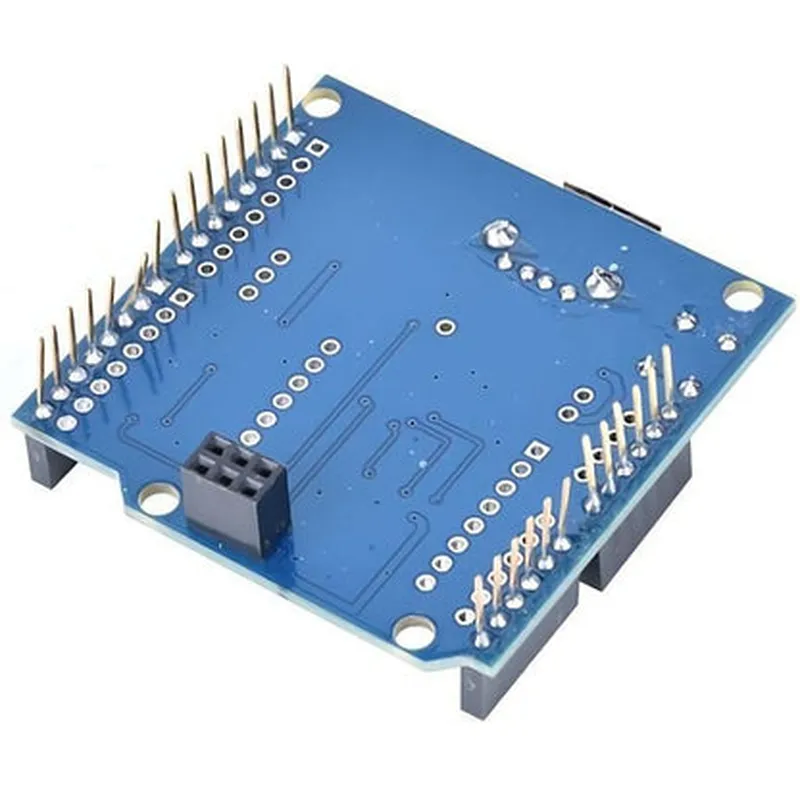

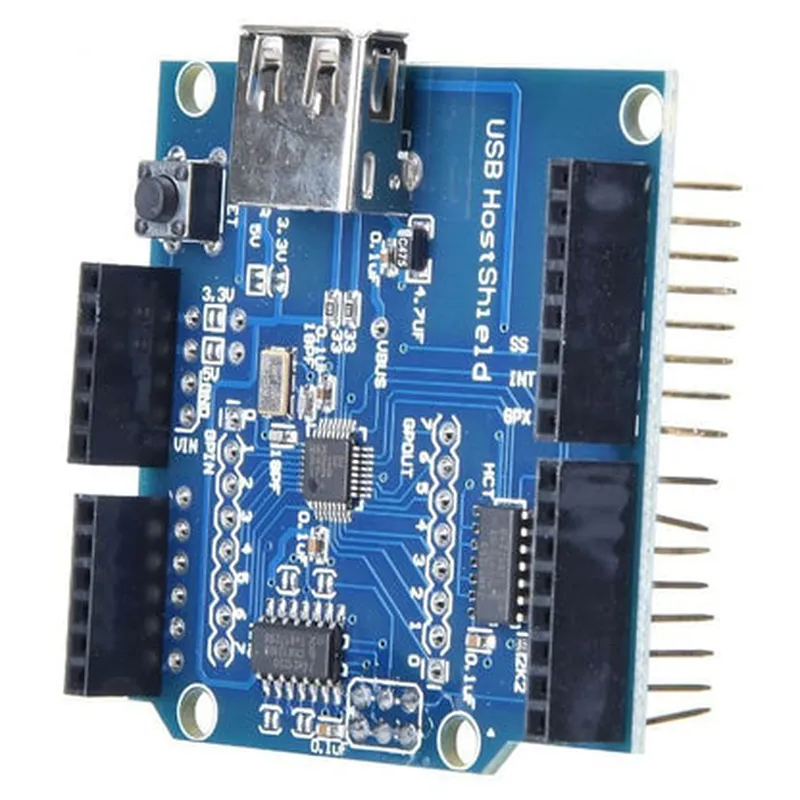

Arduino UNO USB Host Shield

This product is not available in your location yet

Description: 1. Arduino UNO USB Host Shield is an add-on board that enables Arduino UNO to function as a USB host, allowing direct communication with USB devices such as keyboards, mice, joysticks, or mass storage devices. 2. This shield provides two USB 2.0 full-speed ports, each capable of supplying up to 500mA current. It also features a resettable fuse on each port for overcurrent protection. 3. Unique benefit: The Arduino UNO USB Host Shield simplifies the process of interfacing complex USB devices with Arduino projects, eliminating the need for external controllers or additional microcontrollers. 4. It features a low-power mode to save power when no USB device is connected, and an optional pull-up resistor on D+/D- lines for better compatibility with certain devices. 5. This shield utilizes the FTDI USB controller chip, which allows the Arduino UNO to emulate a USB keyboard or mouse, making it suitable for various HID (Human Interface Device) projects. 6. The Arduino UNO USB Host Shield also

View Technical Documentation

Specification	Details
Product Description	The Arduino Uno USB Host Shield allows an Arduino board to interact with USB devices as if it were a host enabling connection to external peripherals such as keyboards mice and mass storage devices.
Compatibility	Compatible with Arduino Uno R3 boards
USB Interface	USB 2.0 Full-Speed (480 Mbps)
Controller Chip	CH376S USB Host Controller
Dimensions	50mm x 30mm x 7mm
Weight	Approximately 25 grams
Operating Voltage	5V (regulated by the Arduino board)
Power Consumption	Typically around 10-20 mA
Support Operating Systems	Supports Windows XP Vista and 7; Linux kernel v2.6.28+ and later; Mac OS X 10.4+
Software Requirements	Compatible with Arduino IDE v1.0 or newer
