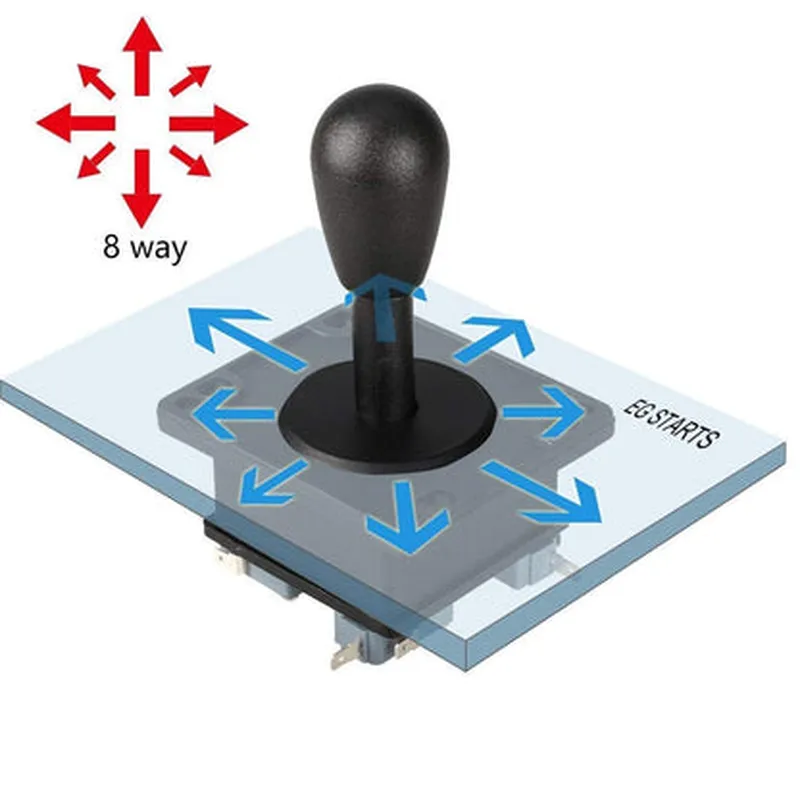

Arcade 2Pin Joystick switchable to 4/8 Ways

Stufin

Arcade 2Pin Joystick switchable to 4/8 Ways

This product is currently unavailable

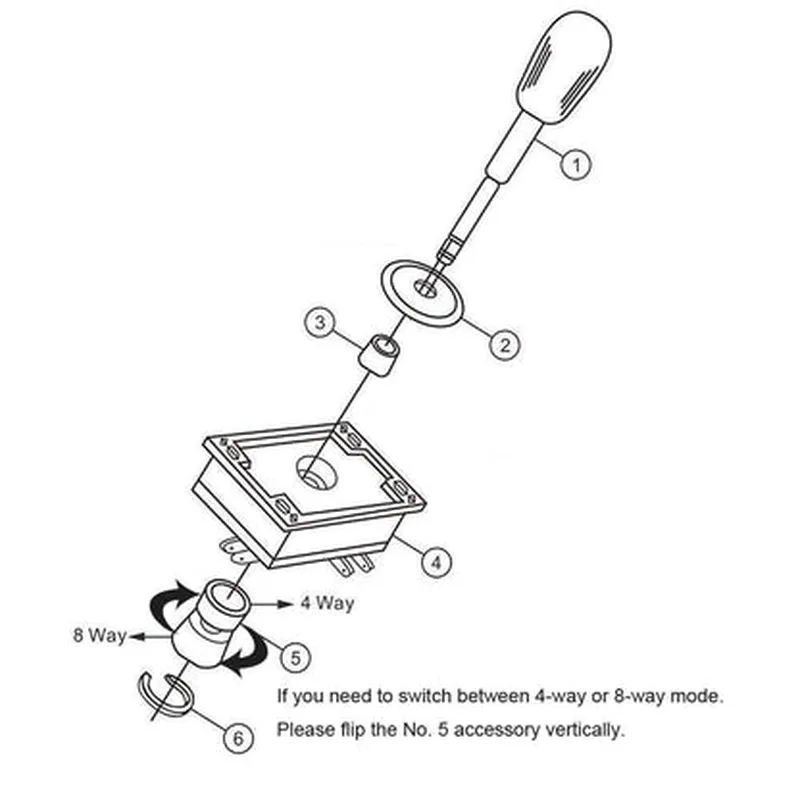

Description: 1. Arcade 2Pin Joystick is an upgradable joystick solution, compatible with both 2-, 4-, and 8-way configurations, designed for retro arcade gaming projects or DIY IoT applications. 2. Dimensions: This versatile joystick measures 76mm in diameter with a height of 45mm, making it suitable for most arcade control panels and enclosures. 3. Switch Types: The Arcade 2Pin Joystick employs high-quality microswitches to ensure accurate input and long lifespan, typically rated at over 1 million cycles. 4. Customizable: Users can easily modify the joystick to support either 2-, 4-, or 8-way directional inputs through a simple modification process involving wiring and switch configuration. 5. Modern Connectivity: The joystick features modern 0.1" header pins, making it compatible with most contemporary microcontroller projects like Arduino and Raspberry Pi. 6. Durable Construction: Featuring a robust metal construction, the Arcade 2Pin Joystick can endure prolonged usage in various environm

View Technical Documentation

Specification	Details
Switch Type	DPDT (Double Pole Double Throw)
Pole Count	2
Throw Count	3-8 (selectable)
Terminal Type	2-pin terminal screw or solder
Mounting Options	Panel mount PCB mount
Operating Voltage	5V (standard) adjustable up to 24V
Current Rating	10mA (max)
Life Expectancy	100000+ cycles
Material	High-quality plastic and metal
