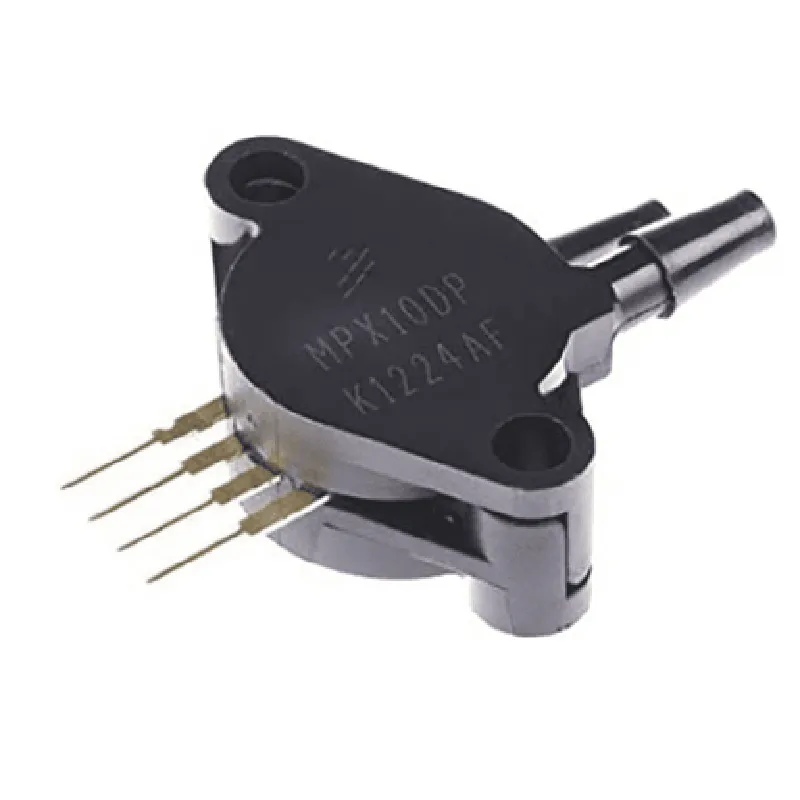

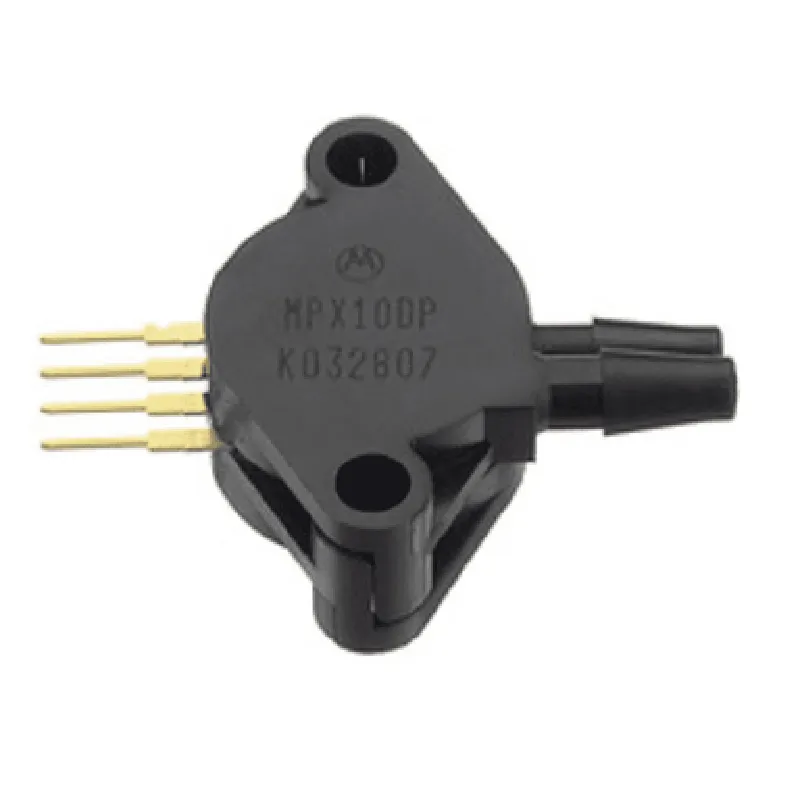

Description: 1. The MPX10DP is a differential pressure sensor designed for measuring the pressure difference between two points in various industrial applications. 2. It features a wide measurement range of up to ±30 psi (±207 kPa) and an accuracy of +/- 0.5% FS, making it suitable for precise pressure monitoring in IoT systems. 3. This sensor employs piezoresistive technology, ensuring high sensitivity and stability over temperature, with a operating temperature range from -40°C to +85°C. 4. The MPX10DP comes with an integrated bridge amplifier, simplifying wiring requirements, and its compact size (3mm x 6mm) makes it easy for integrating into IoT projects. 5. It has a low power consumption of only 2mA at 5V supply voltage, allowing long battery life or reduced power usage in IoT applications. 6. This sensor supports industry-standard communication protocols like I²C and SPI, making it easily interchangeable with various microcontrollers and data loggers. 7. Its high accuracy and low hysteresis
| Specification | Details |
|---|---|
| Pressure Range | ±1 to 5 psig (±7 to 35 mbar) |
| Accuracy | ±0.15% FS (Full Scale) |
| Repeatability | ±0.05% FS |
| Linearity | ±0.1% FS |
| Temperature Range | -40 to 85°C |
| Supply Voltage | 3.5 to 24VDC (5mA @ 10mW) |
| Response Time | 4ms |
| Sensitivity | 100 mV/psig |
| Output Type | Analog (0.1 to 4.8VDC) |
| Interface Options | VCC GND OUT CSN |
| Package Type | Surface Mount (TO-92 style) |
| Dimensions | 13mm x 6.5mm x 3.9mm |
1. A 10kg Load Cell is an ele...
1. The MQ131 Ozone Gas Detect...
1. Magnetic Float Sensor FS37...
1. A 20kg Load Cell is an ele...
1. A Turbidity Sensor is an I...
1. The YF-S401 is a versatile...

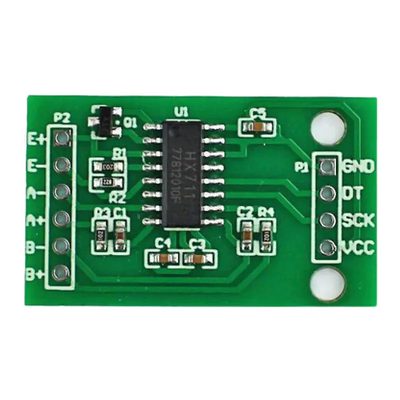

1. The HX711 Load Cell Module...
